Machine Configuration
2-6

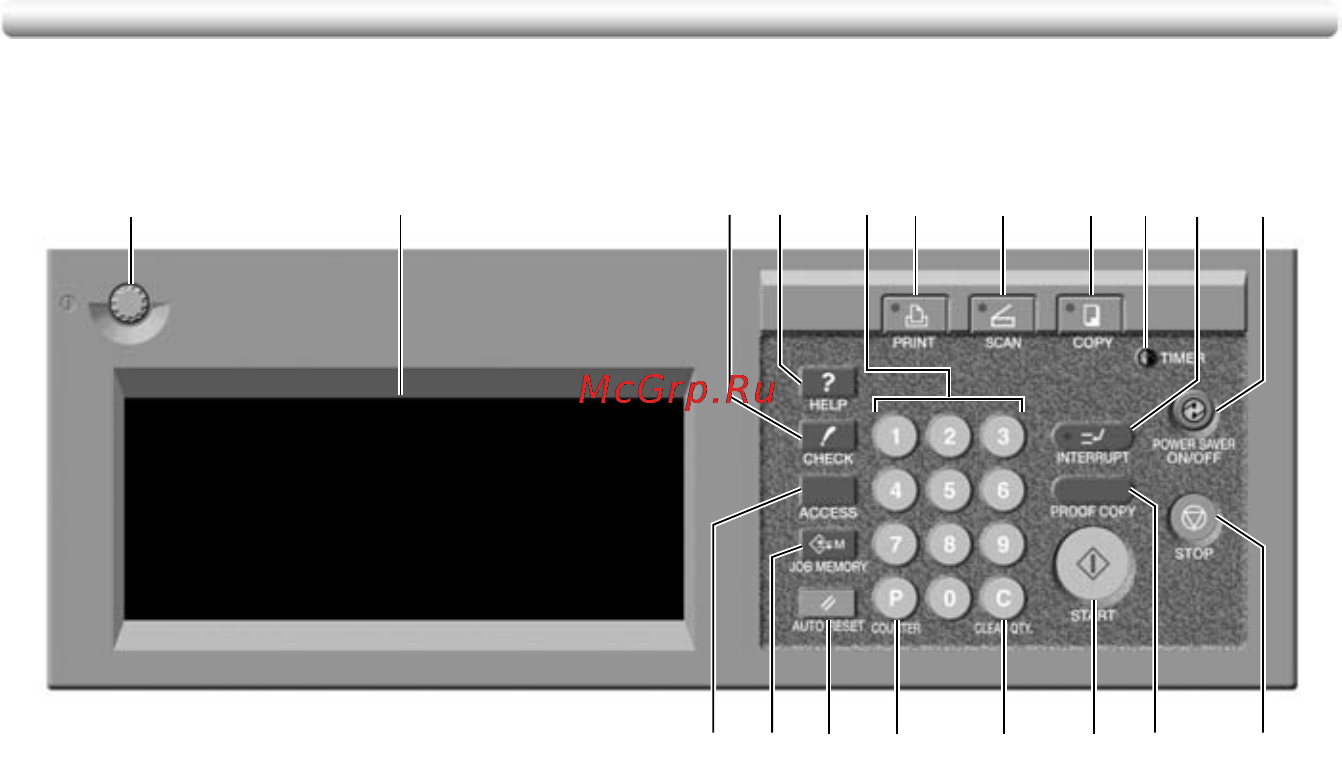

Control Panel Layout
1 CONTRAST ADJUSTMENT DIAL can be turned to adjust the touch panel
contrast.
2 LCD TOUCH SCREEN displays machine and copying status, help
information, interactive screens, and touch keys for selecting all functions.
3 CHECK displays a screen showing all settings that are selected for the
current job.
4HELP displays a screen with help for the currently selected function, or to
access the Key Operator Mode Screen.
5KEYPAD enters numeric values.
6PRINTER switches the machine operation mode to printer. This key
functions only when internal print controller is installed.
7 SCANNER switches the machine operation mode to scanner.
8COPY switches the machine operation mode to copy.
9TIMER lights when the timer function is set.
10 INTERRUPT stops copying in progress to allow copying from the platen
glass.
11 POWER SAVER ON/OFF activates power-saving mode for times when the
copier is inactive, or activates Timer Interrupt mode when Weekly Timer
function is active.
12 STOP stops the copying sequence; deletes the stored memory.
13 PROOF COPY outputs a single set of copies to confirm whether the current
settings are selected properly.
14 START activates copying or scanning.
15 [C] (CLEAR QTY.) allows resetting of print quantity.
12 45671110983
121319 18 14151617
