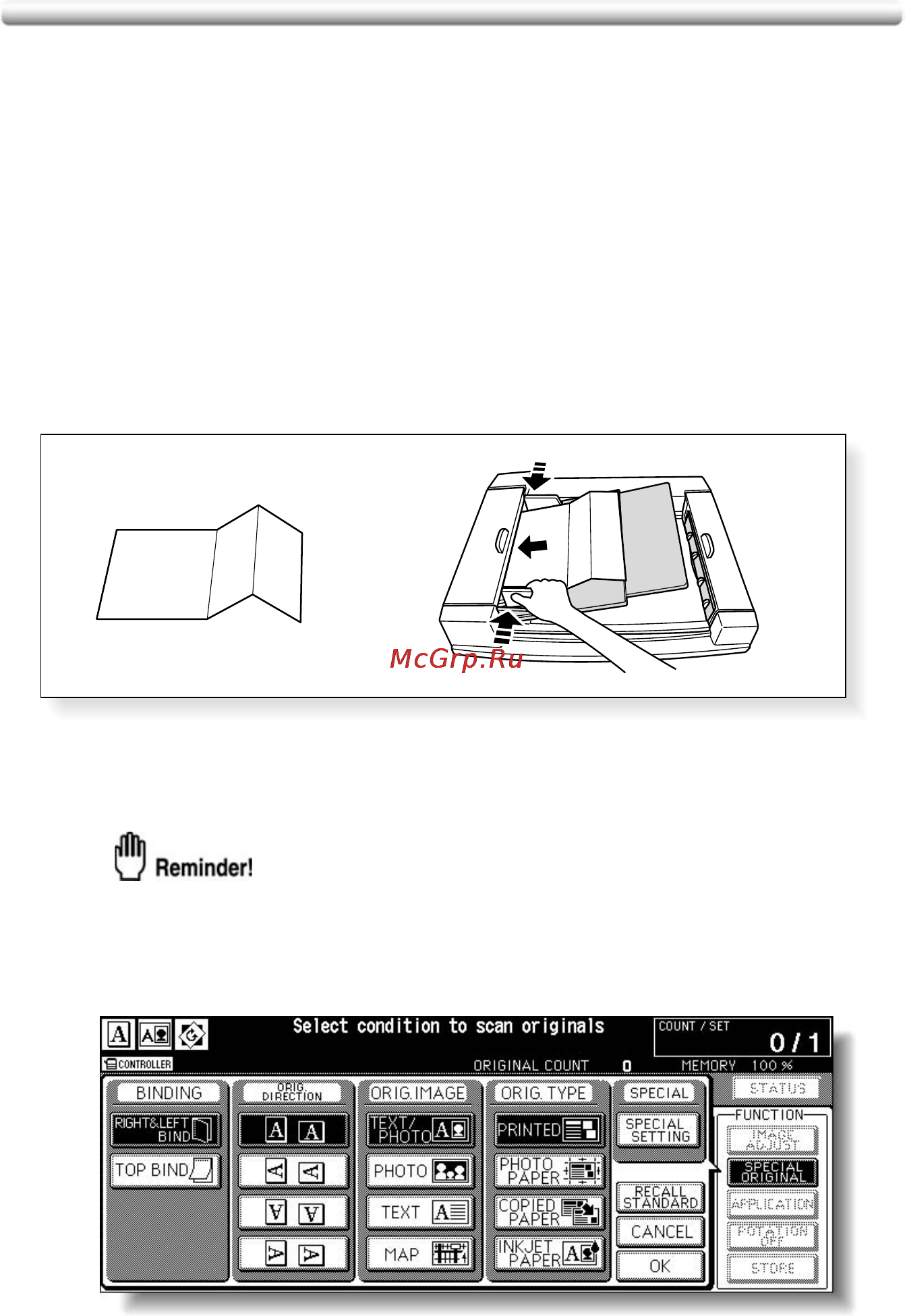

Copying Z-Folded Originals (Z-Folded Original)
9-12
Copying Z-Folded Originals (Z-Folded Origi-
nal)
Use the Z-folded original mode with the document feeder to copy Z-folded
originals. Otherwise, the size detection sensor of the RADF may function incorrectly.
This mode requires more scanning time to detect the original size.
Specifications for Z-Folded Original
/ Use RADF.
/ Incompatible Conditions: Using platen glass, Rotation Sort, Rotation Group,
Mixed Original, Non STD Size, Tab Paper, Multi-Page Enlargement, Non-
Image Area Erase, Repeat, AUTO Layout, Storing image in Overlay Memory
1. Touch SPECIAL ORIGINAL on the Basic Screen.
The Special Original popup menu will be displayed.
When starting a new copying job, be sure to close the RADF securely, then
press [AUTO RESET].
2. Touch SPECIAL SETTING.
The Special Setting popup menu will be displayed.
Z-folded original
