14-53
[20] AE Adjustment
[20] AE Adjustment
Use this function to set the adjustment level of the automatic exposure (AE) suitable
for either text originals or photo originals. Different setting is available for each of
the colour mode and monochrome mode.
Procedure
1 Touch [20] AE adjustment on the Key Operator Mode Screen to display the AE
Adjustment Screen.
2 Touch NEXT ADJUSTMENT or PREVIOUS ADJUSTMENT to select the mode
to be adjusted.
The selected mode will be displayed in the message area.
3 Specify the adjustment level.
Touch + <–> – to select “+” or “-” as desired, enter the value, then touch SET.
Check the entered value on the left side of the second line in the message area.
The AE will function suitable for text originals if specified value is positive, or for
photo originals if negative value is entered.
4 Touch PREVIOUS SCREEN to complete the setting and return to the Key
Operator Mode Screen.

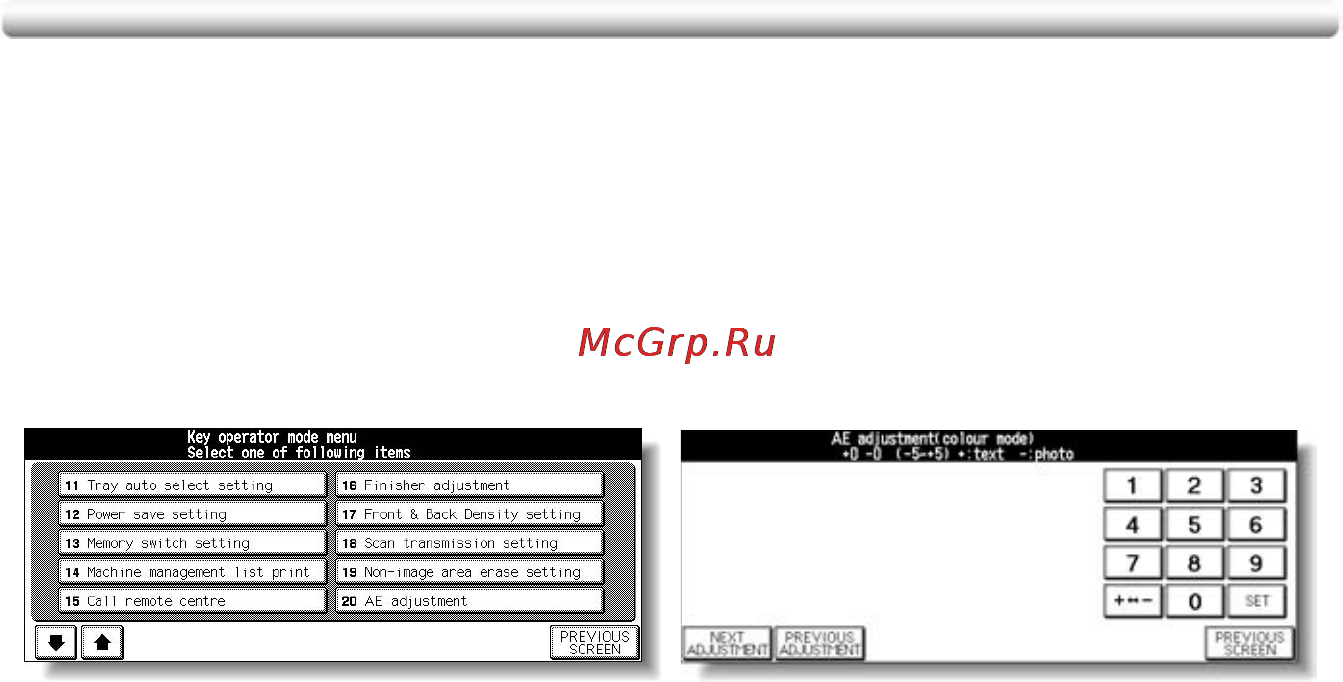

AE Adjustment Screen
Key Operator Mode Screen
