Making Double-Sided Copies (1)2, 2)2)
3-30

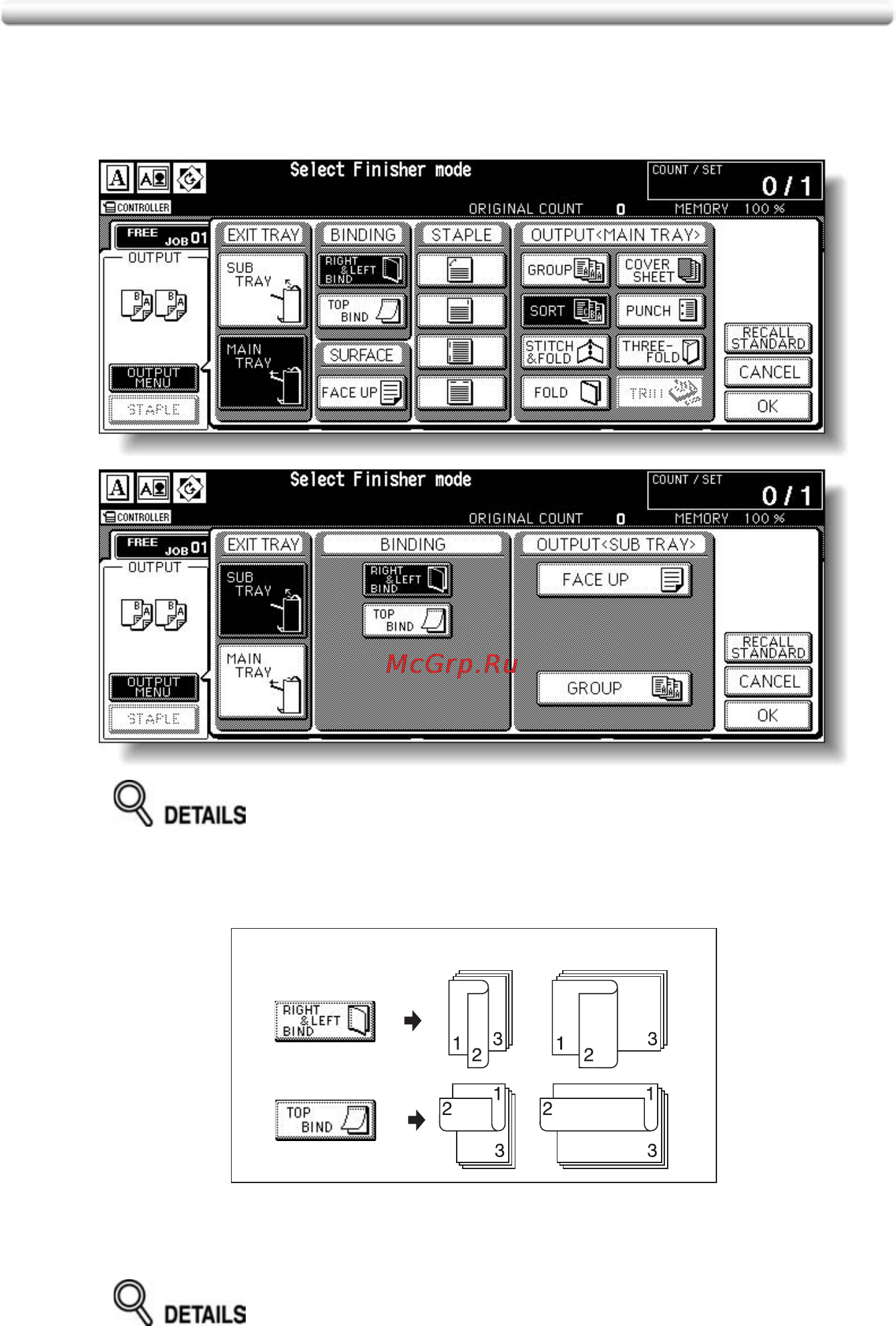

3. Select the binding mode.
Touch OUTPUT MENU on the Basic Screen to display the Output Mode
popup menu, then touch the desired binding mode key to highlight it.
Selecting TOP BIND will make copies upside down on the reverse side,
while
RIGHT&LEFT BIND copies normally.
Touch OK to return to the Basic Screen.
4. Select additional copy conditions, as desired.
Some incompatible conditions may automatically release the selected copy
mode. In this case, arrange the settings so that they are compatible with the
selected copy mode.
Binding mode
Copies
