Making Fine Adjustment in Image Detection (Image Judge)
7-38

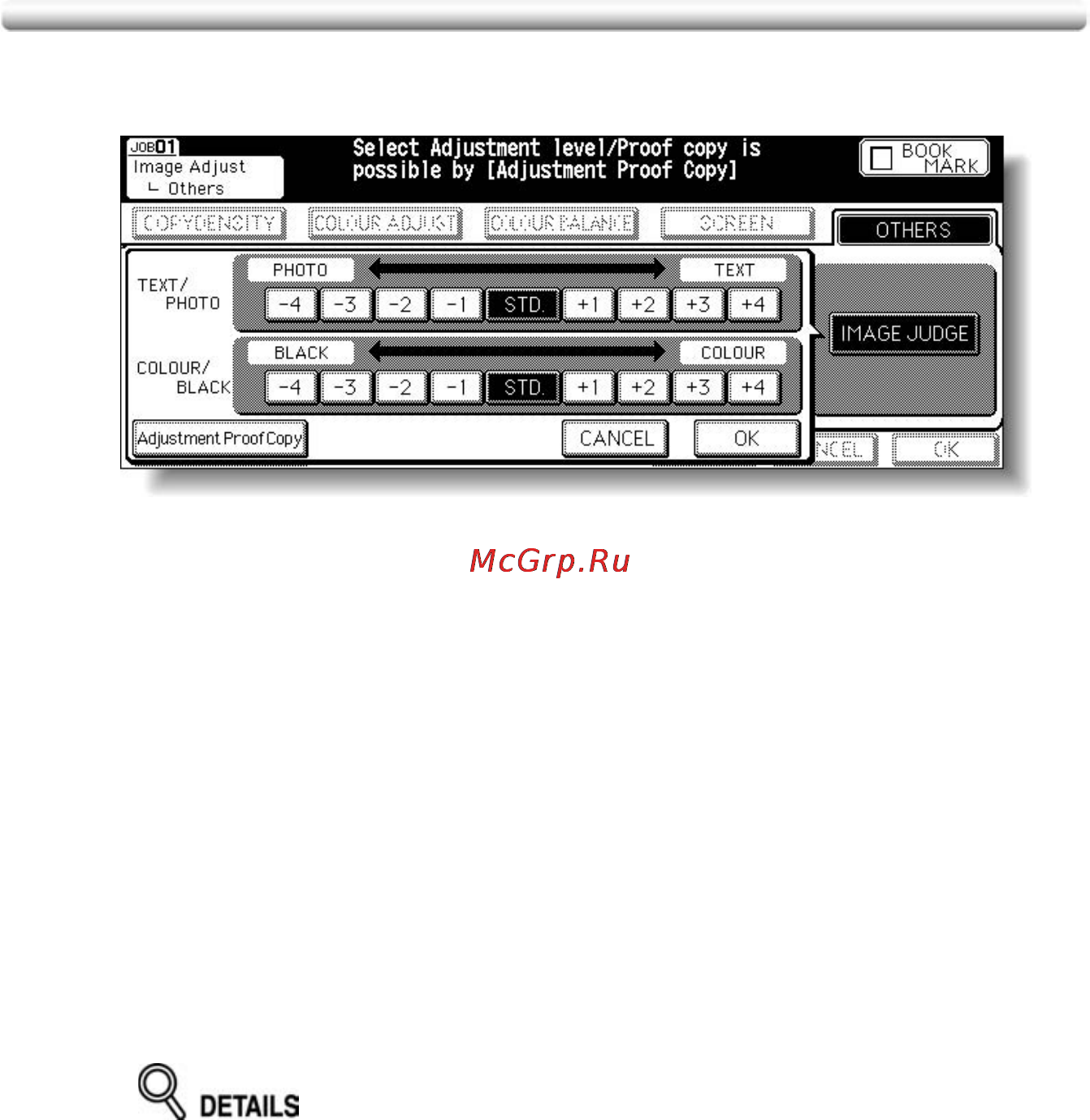

3. Touch IMAGE JUDGE.
4. Make an adjustment to TEXT/PHOTO.
Touch the desired level key from -1 to -4 to increase the proportion of photo.
Or, touch a key from +1 to +4 to increase the proportion of text.
Touch
STD. to select the middle level.
Use Adjustment Proof Copy to check the adjustment result. See p. 7-22.
5. Make an adjustment to COLOUR/BLACK.
Touch the desired level key from -1 to -4 to increase the proportion of black
text, or from +1 to +4 to increase the proportion of coloured text.
Touch
STD. to select the middle level.
6. Touch OK.
The Other Adjustment Screen will be restored.
To resume the previous setting, touch CANCEL.
7. Touch OK.
The Basic Screen will be restored, with the IMAGE ADJUST key highlighted.
• To resume the previous setting, touch CANCEL.
• To restore the initial settings, touch RECALL STANDARD.
