Cover Sheet Feeding
8-22

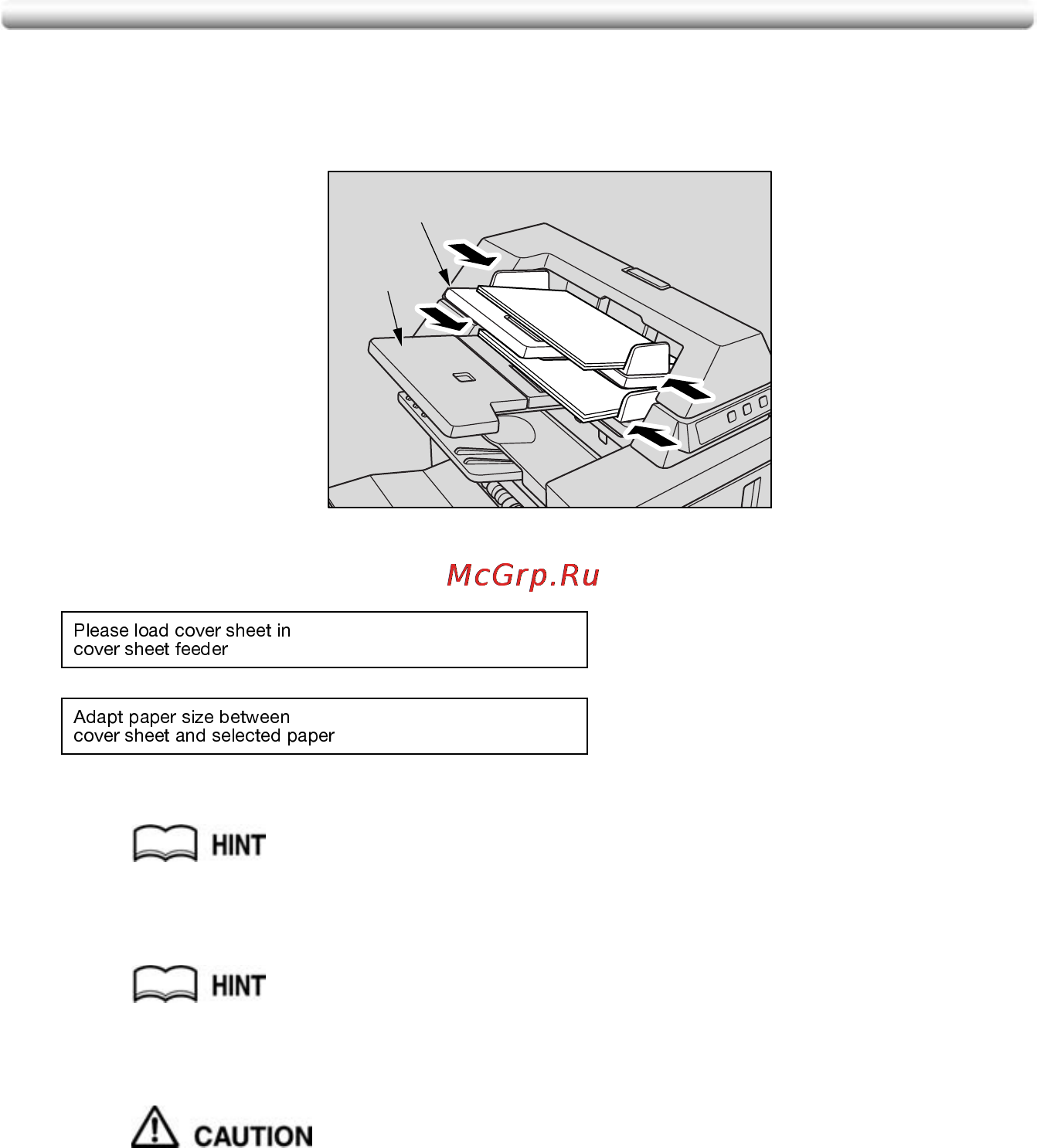

8. Load the cover sheet paper into the optional cover sheet feeder of
the FS-513/FS-606 finisher.
If the paper size loaded in the cover sheet feeder is not suitable, the following
messages will be displayed and copying will be unavailable till the correct size
is loaded.
9. Enter the desired print quantity from the control panel keypad.
See p. 3-10 for details on setting print quantity.
10. Position originals.
See p. 3-4 for details on positioning originals.
11. Press [START].
When the finisher exit tray capacity is exceeded due to the print
quantity selected, remove the copied sets as they exit; otherwise,
mishandled paper will occur.
Upper tray
Lower
tray
