14-29
[9] Weekly Timer
[1] Weekly Timer On/Off Setting
Select to activate or deactivate the Weekly Timer function.
Procedure
1 Touch [1] Weekly timer ON/OFF setting on the Weekly Timer Setting Menu
Screen to display the Weekly Timer On/Off Setting Screen.
2 Touch Weekly timer On to activate Weekly Timer, or touch Weekly timer Off to
deactivate Weekly Timer. The selected key will be highlighted.
The default setting is Weekly Timer Off.
NOTE:
If you select
Weekly timer On to activate this function, be sure to keep the
power switch turned on.
3 Touch OK to complete the setting and return to the Weekly Timer Setting Menu
Screen, or touch CANCEL to restore the previous setting.
4 Touch PREVIOUS SCREEN on the Weekly Timer Setting Menu Screen to restore
the Key Operator Mode Screen.

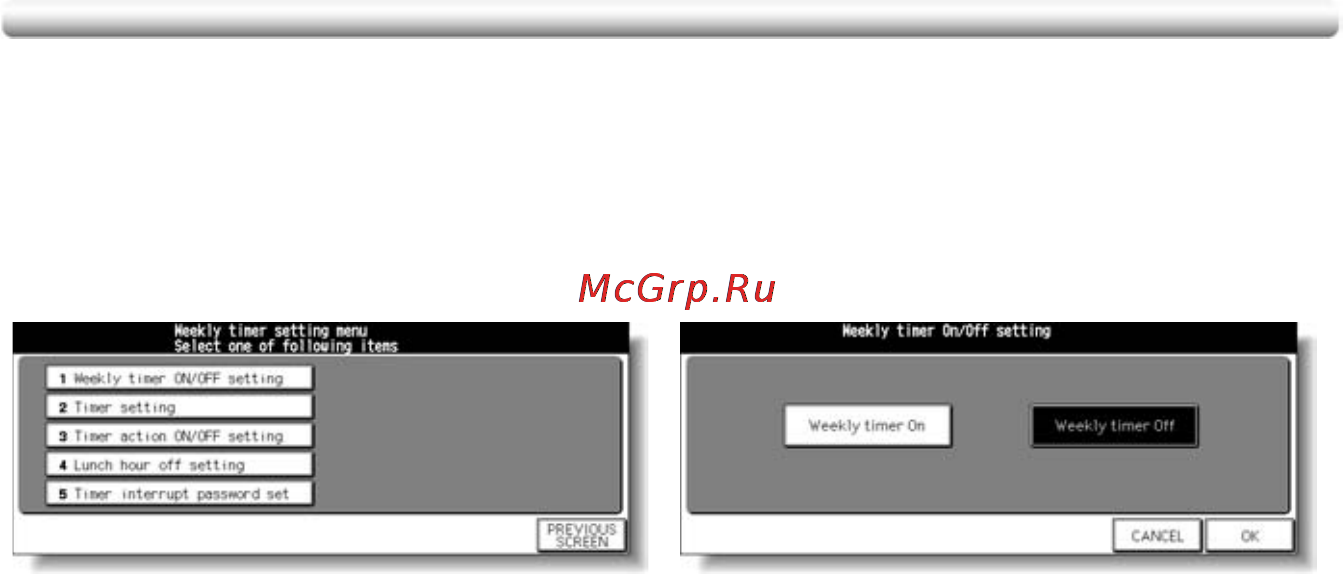

Weekly Timer Setting Menu Screen
Weekly Timer On/Off Setting Screen
