When Power OFF/ON Screen Is Displayed
5-14
When Power OFF/ON Screen Is Displayed

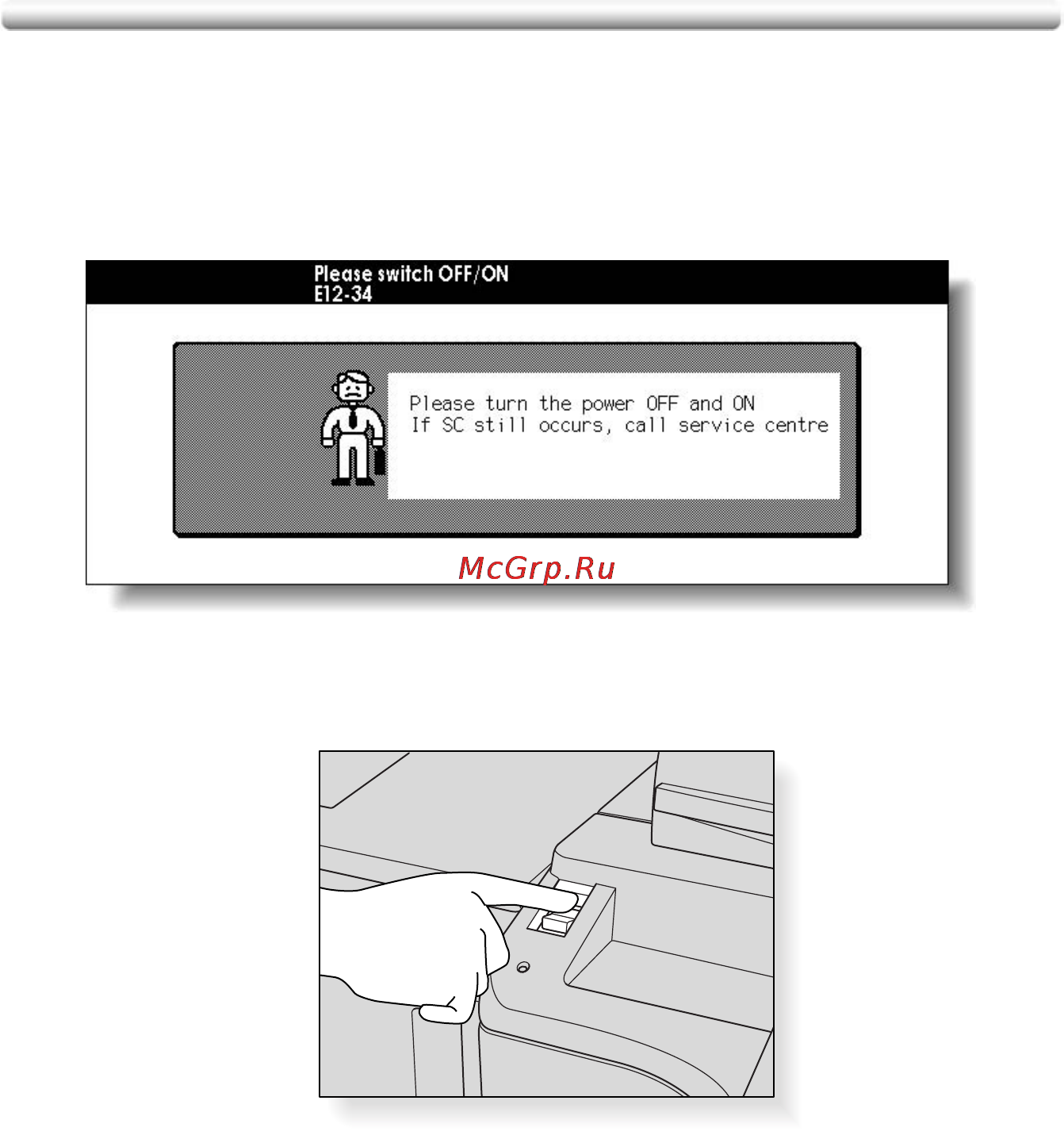

When any trouble affects the electrical signal of the copier, the Power OFF/ON
Screen will be displayed.
Follow the procedure below to turn the machine power off then on.
1. Turn OFF the power switch.
2. Wait about 10 seconds.
3. Turn ON the power switch.
