Selecting Colour Mode
3-2
Selecting Colour Mode
The following four colour modes are available:
AUTO mode detects whether the scanned original is coloured or black-and-white
image, and automatically selects either FULL COLOUR mode or BLACK mode for
copying.
FULL COLOUR mode makes full-coloured copies whether the original image is
coloured or not.
BLACK mode makes black-and-white copies whether the original image is coloured
or not.
SINGLE COLOUR mode copies in one colour to be selected from red, green, blue,
magenta, cyan, or yellow.
The FULL COLOUR mode is initially selected. Follow the procedure below to
change the Colour mode.
Specification for Colour Mode
/ A colour mode is incompatible with another colour mode.
/ Incompatible with AUTO: Tab Paper, Fold/Stitch&Fold/Trimming (with Booklet
selected), Combination, Booklet, Overlay, Overlay Memory
/ Incompatible with FULL COLOUR: Tab Paper
/ Incompatible with SINGLE COLOUR: Tab Paper
The colour adjustment function is provided on this machine. See Section
7: "Colour Image Adjustment".
Some adjustments cannot be made in the BLACK mode and SINGLE
COLOUR mode.
Incompatible with BLACK: Hue/Saturation/Brightness in Colour Adjust,
Colour Balance, Any function except Auto in Screen, Colour/Text of Image
Judge in Others, Original Type in Special Original
Incompatible with SINGLE COLOUR: Hue/Saturation/Brightness in Colour
Adjust, Colour Balance, Colour/Text of Image Judge in Others, Original Type
in Special Original

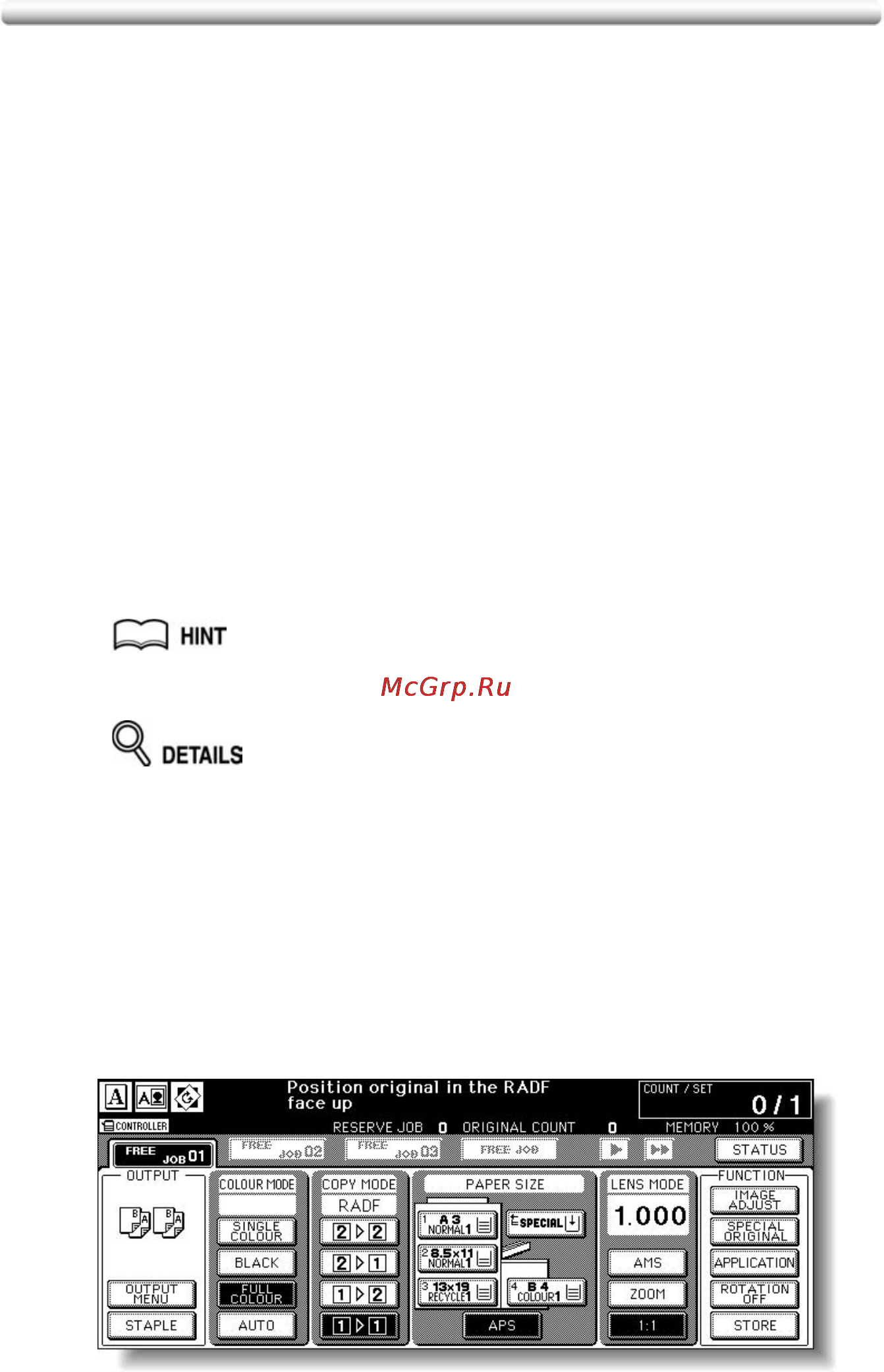

1. Touch a mode key under the COLOUR MODE on the Basic Screen
to select the desired Colour mode.
