Making a Multiple Page Signature Booklet (Booklet)
10-16

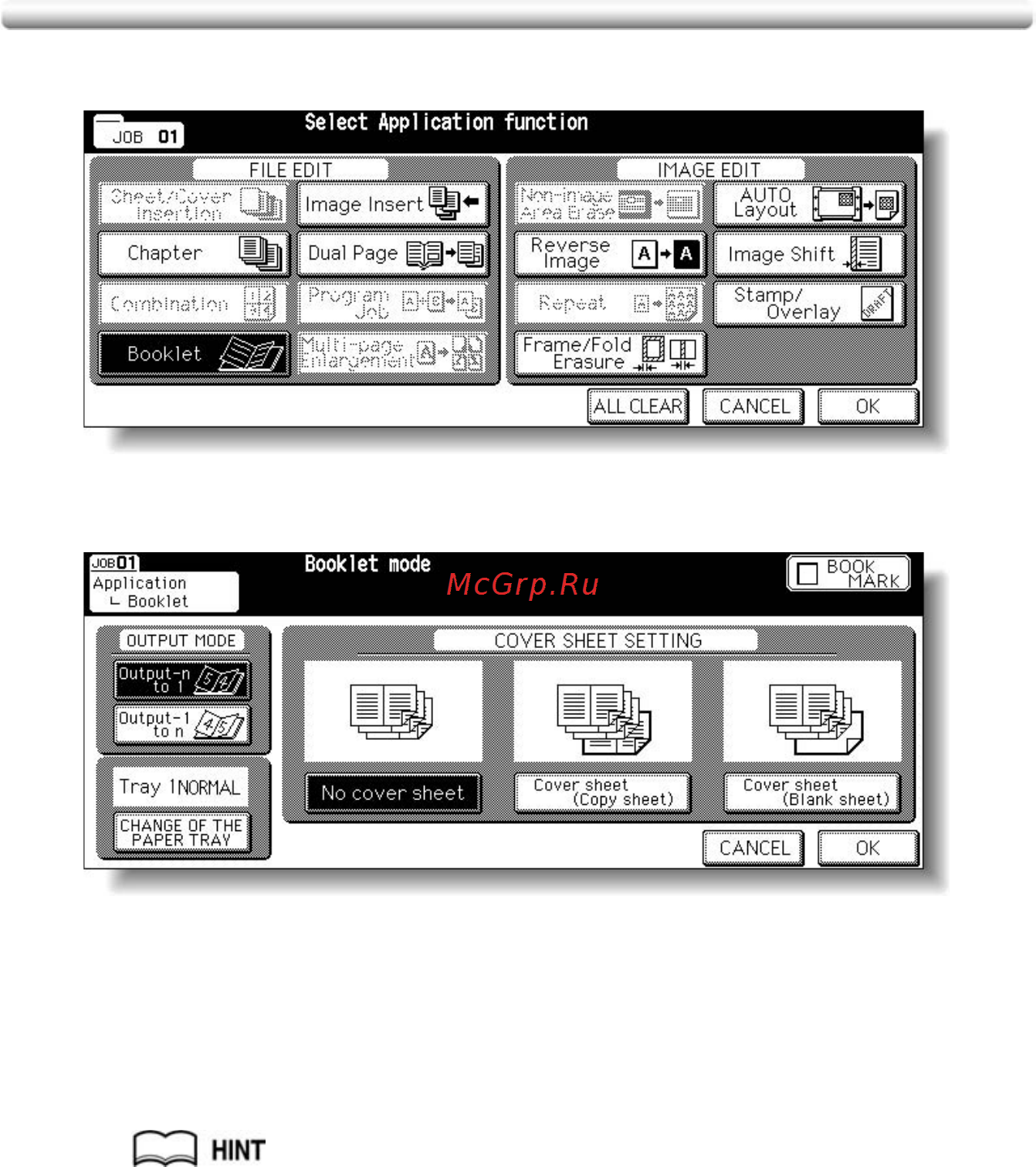

3. Touch Booklet on the Application Selection Screen.
4. Touch to highlight the desired Booklet mode key.
When a cover sheet is required, touch CHANGE OF THE PAPER TRAY to
select the cover sheet tray source.
Touch the desired output order key if you want to change the output order.
5. Touch OK.
The Application Selection Screen will be restored.
Select additional Applications, as desired.
Key Operator can set the machine to position the page numbers
automatically on the outside edges of the copy when using Booklet with
Page Numbering in Stamp. See p. 14-38.
6. Touch OK on the Application Selection Screen.
The Basic Screen will be restored.
AMS is selected automatically.
7. Select the tray in which you loaded copy paper in step 1.
To release AMS, select the desired magnification, then select paper size.
8. Select the 1 )2 or 2 )2 copy mode.
