Konica Minolta bizhub PRO C500 [46/466] Tu 109 trimmer unit
![Konica Minolta bizhub PRO C500 [46/466] Tu 109 trimmer unit](/views2/1122251/page46/bg2e.png)
Machine Configuration
2-14

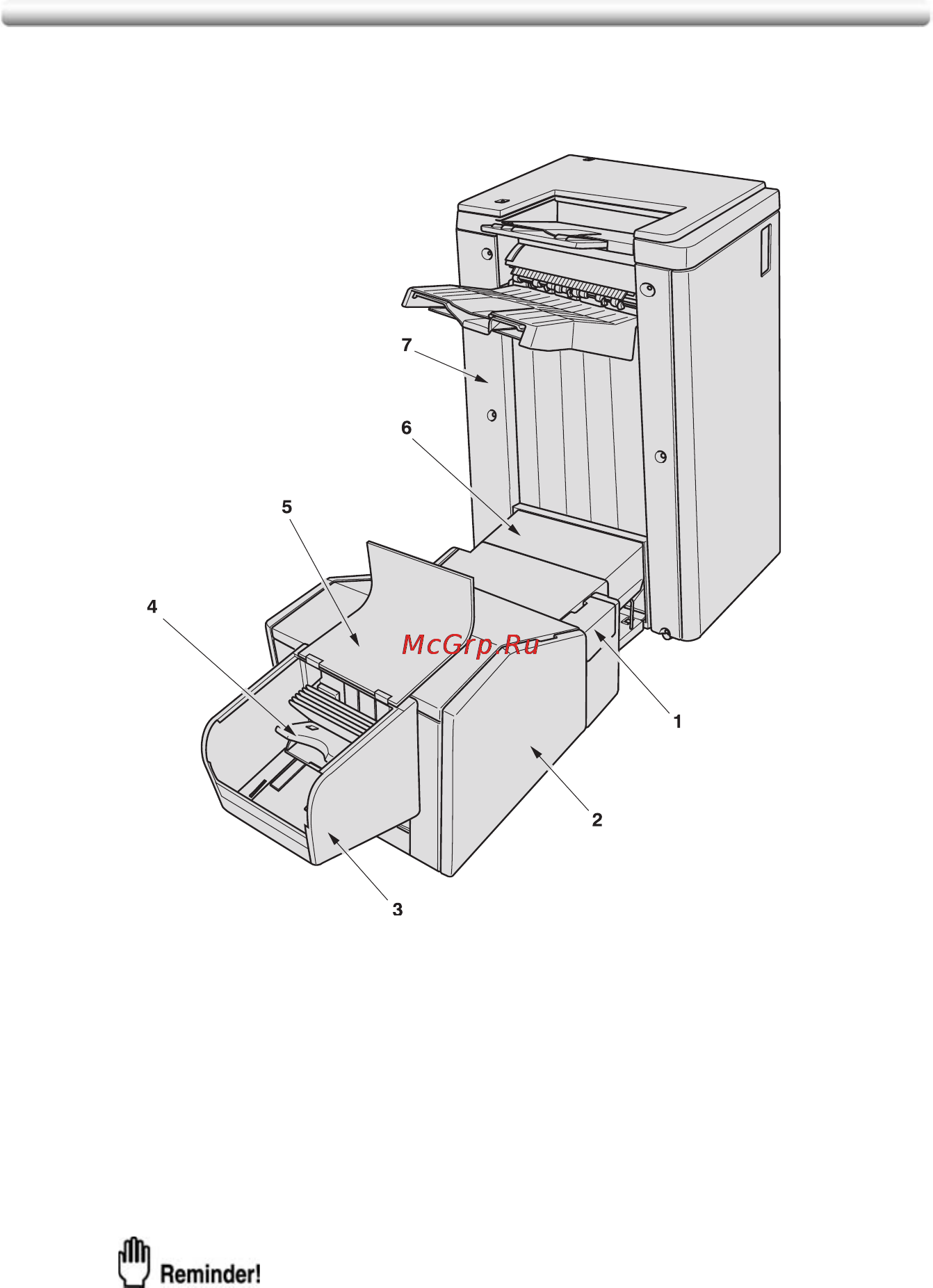

TU-109 Trimmer Unit
DO NOT place heavy objects on the trimmer stacker or apply any weight on
it, and DO NOT use it for storage.
Excessive weight applied to the inside or outside of the trimmer stacker will
damage the equipment.
1 Front-right cover opens to allow removal of mishandled paper.
2 Front door opens to allow removal of mishandled paper or waste paper.
3 Trimmer stacker holds sets output in Trimming mode.
4 Trimmer unit tray slides to the left side each time a trimmed booklet is
delivered.
5 Trimmer stacker cover opens to allow you to take out the finished sets.
6 TU-109A kit connects the Finisher and Trimmer unit.
7 FS-606 Finisher allows the Trimmer unit to be installed.
