When “Memory Full” Message Is Displayed (Memory
5-12
Memory Overflow in Current Job

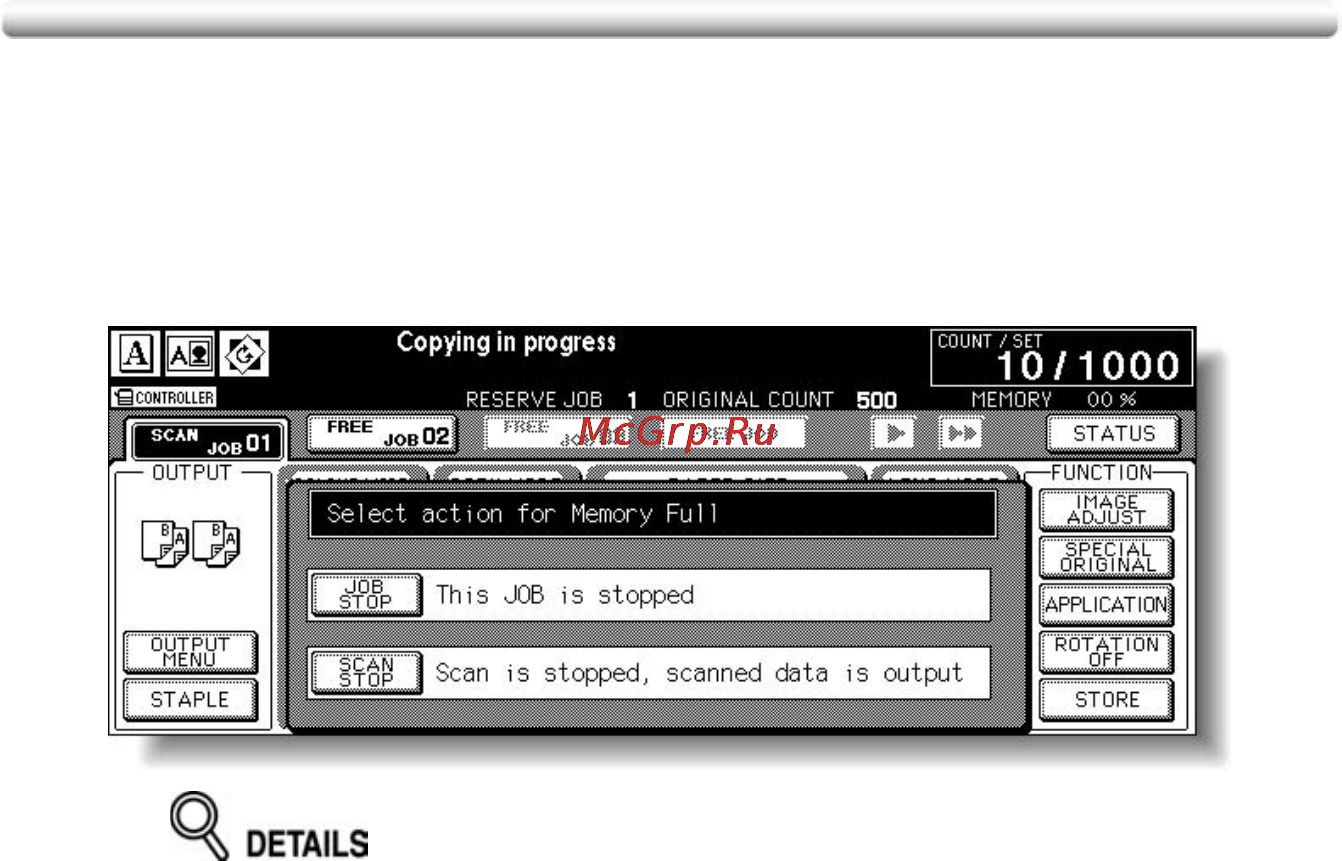

When memory overflow occurs while scanning the first job, the machine stops
immediately, and the screen provides JOB STOP and SCAN STOP as the only two
available options.
If the job settings include Booklet mode, SCAN STOP will disappear.
- To delete all the scanned data and discontinue the job, touch JOB STOP.
- To give up further scanning but print out all the data already scanned into
memory, touch SCAN STOP.
