Selecting Line Screen, Dot Screen, or High Compression
7-32

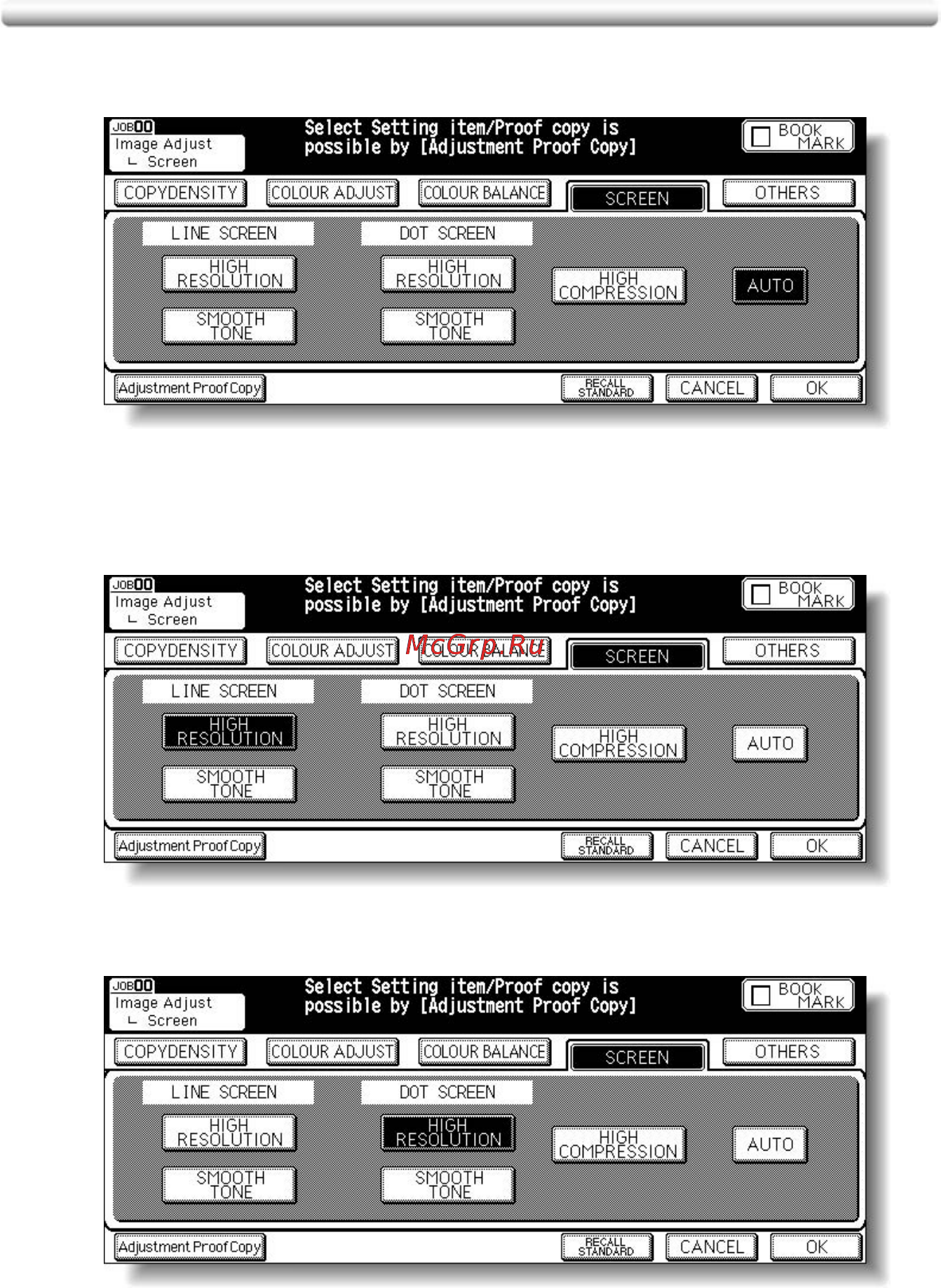

2. Touch SCREEN to display the Screen Setting Screen.
3. Select the desired reproducing method.
To select the Line Screen, touch HIGH RESOLUTION or SMOOTH TONE under
the LINE SCREEN indication to highlight it.
To select the Dot Screen, touch
HIGH RESOLUTION or SMOOTH TONE under
the DOT SCREEN indication to highlight it.
