Turning On the Power Switch
2-20
Shutting Off Automatically (Auto Shut-Off)
This function automatically shuts off the power after a specified period (initially 90
minutes) of copier inactivity.

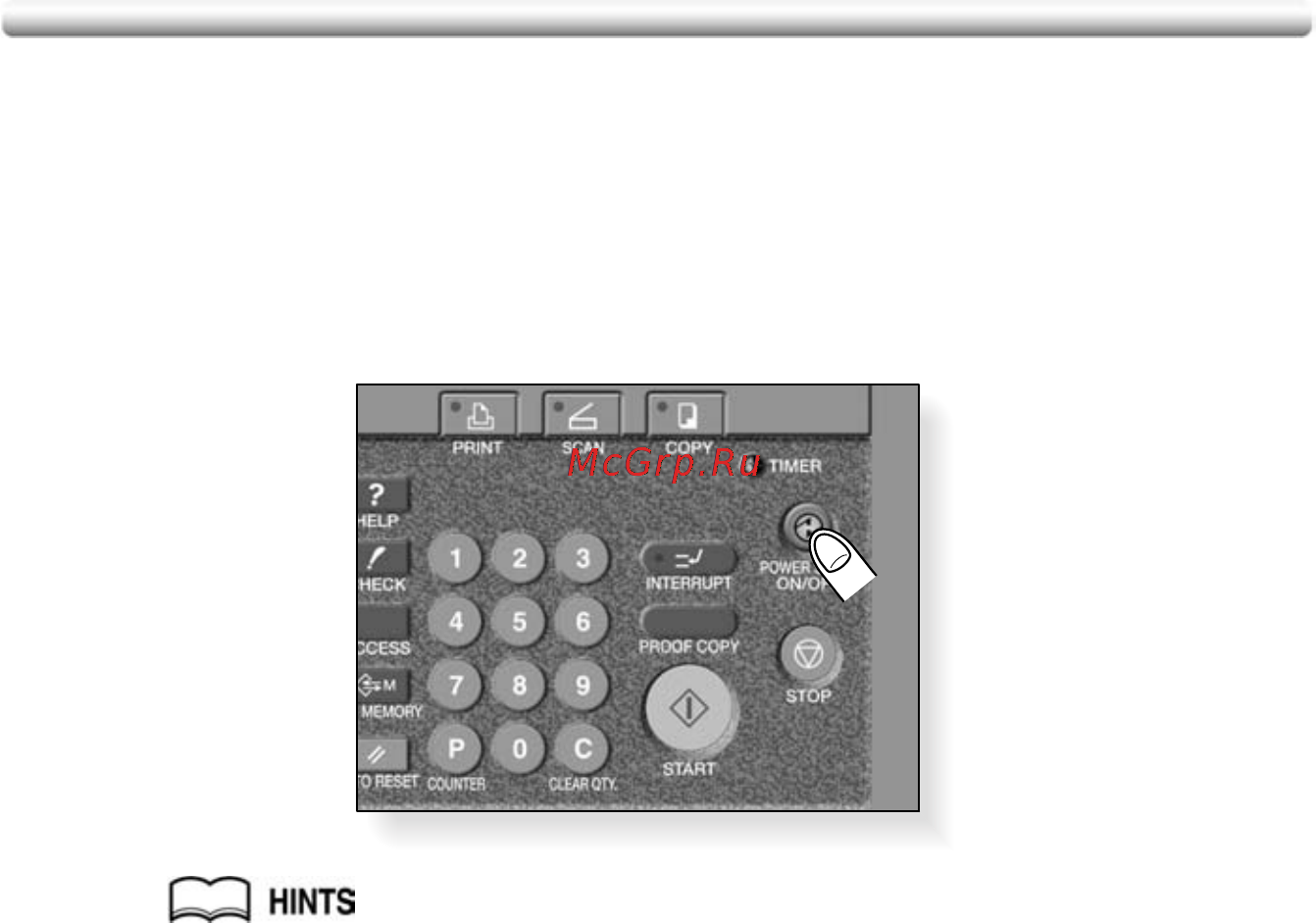

To start a copying job, press [
POWER SAVER ON/OFF].
The copying operation will become available.
• The Auto shut-off can be set for 30 minutes/ 60 minutes/ 90 minutes/ 120
minutes/ 240 minutes in the Key Operator mode. For information about
the Key Operator setting, see p. 14-37.
• When “Timer interrupt mode / Enter password” is displayed after pressing
[POWER SAVER ON/OFF], see p. 8-2 and follow the procedure to
continue.
