10-23
Dividing an Image into Right and Left Pages (Dual Page)
Dividing an Image into Right and Left Pages
(Dual Page)
The Dual Page mode performs image division on the original image. Use this
function to copy an open book or a ledger sheet onto two A4 sheets in 1)1 or 2)1
mode, or onto the front and back sides of one A4 sheet in 1)2 or 2)2 mode.
The following three modes can be selected from the Dual Page Screen.
- Facing Pages mode: Image division starts from the first scan.
- Front Cover+Facing Pages mode: Image division starts from the second scan,
after the first scan copies normally.
- Front/Back Cover+Facing Pages mode: Image division starts from the third
scan, after the first and second scan copy normally.
Specifications for Dual Page
/ Store mode is automatically selected.
/ Paper size: A4
/ Incompatible Conditions: APS, AMS, Rotation Sort, Rotation Group, Fold/
Stitch&Fold/Trimming (available with Booklet selected), Mixed Original, Tab
Paper, Sheet/Cover Insertion, Combination, Image Insert, Program Job,
Multi-Page Enlargement, Repeat, Reduce & Shift in Image Shift, Overlay,
Storing Image in Overlay Memory
1. Touch APPLICATION on the Basic Screen.
When starting a new copying job, be sure to close the RADF securely, then
press [AUTO RESET].
1-1 / 2-1 mode
1-1 / 2-1 mode

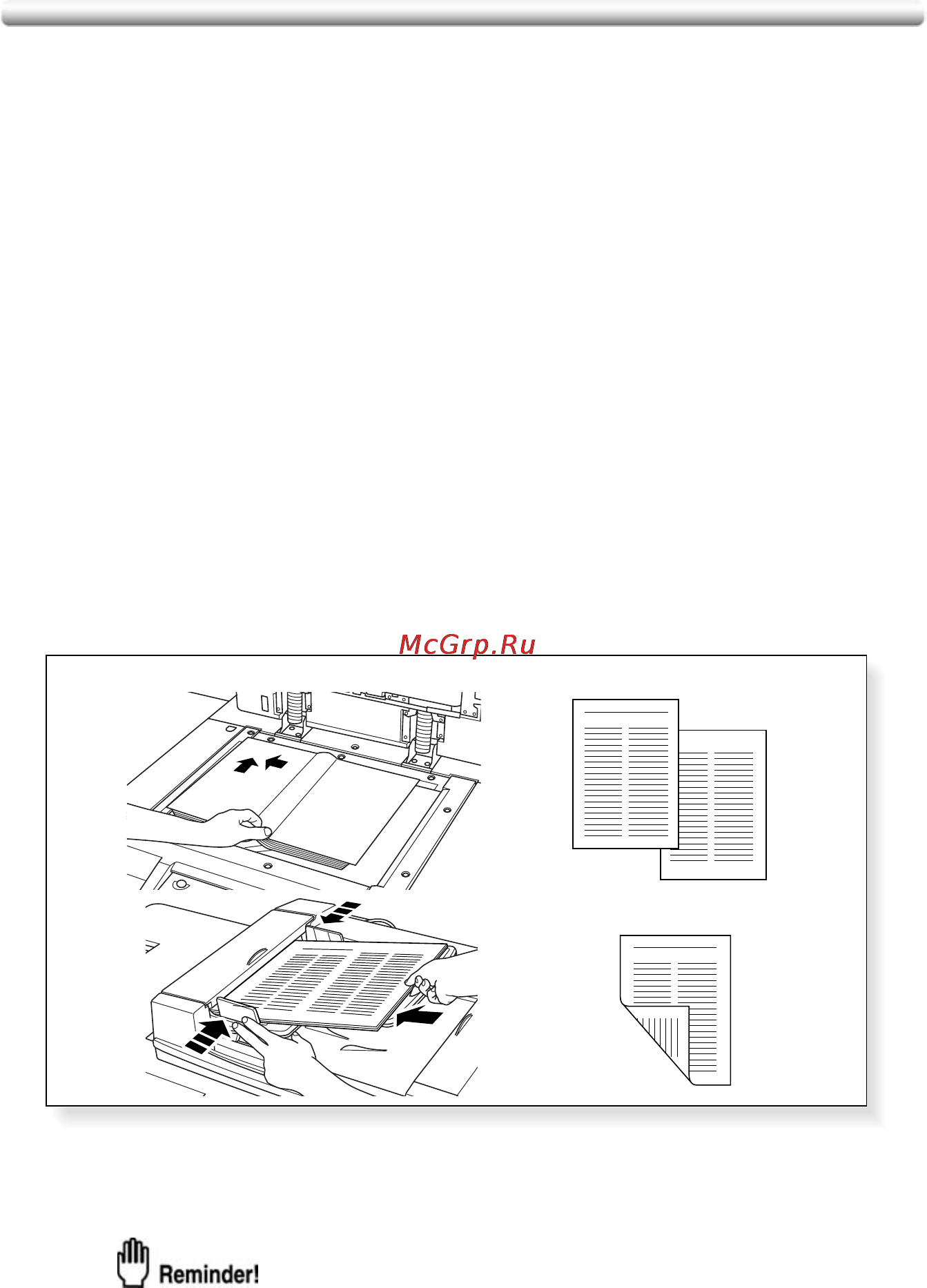

Set original
