To Display Information on Machine
11-4
To Display Information on Machine
Follow the procedure below to display the machine information using the web
browser.
1. Open the Web Utilities window.

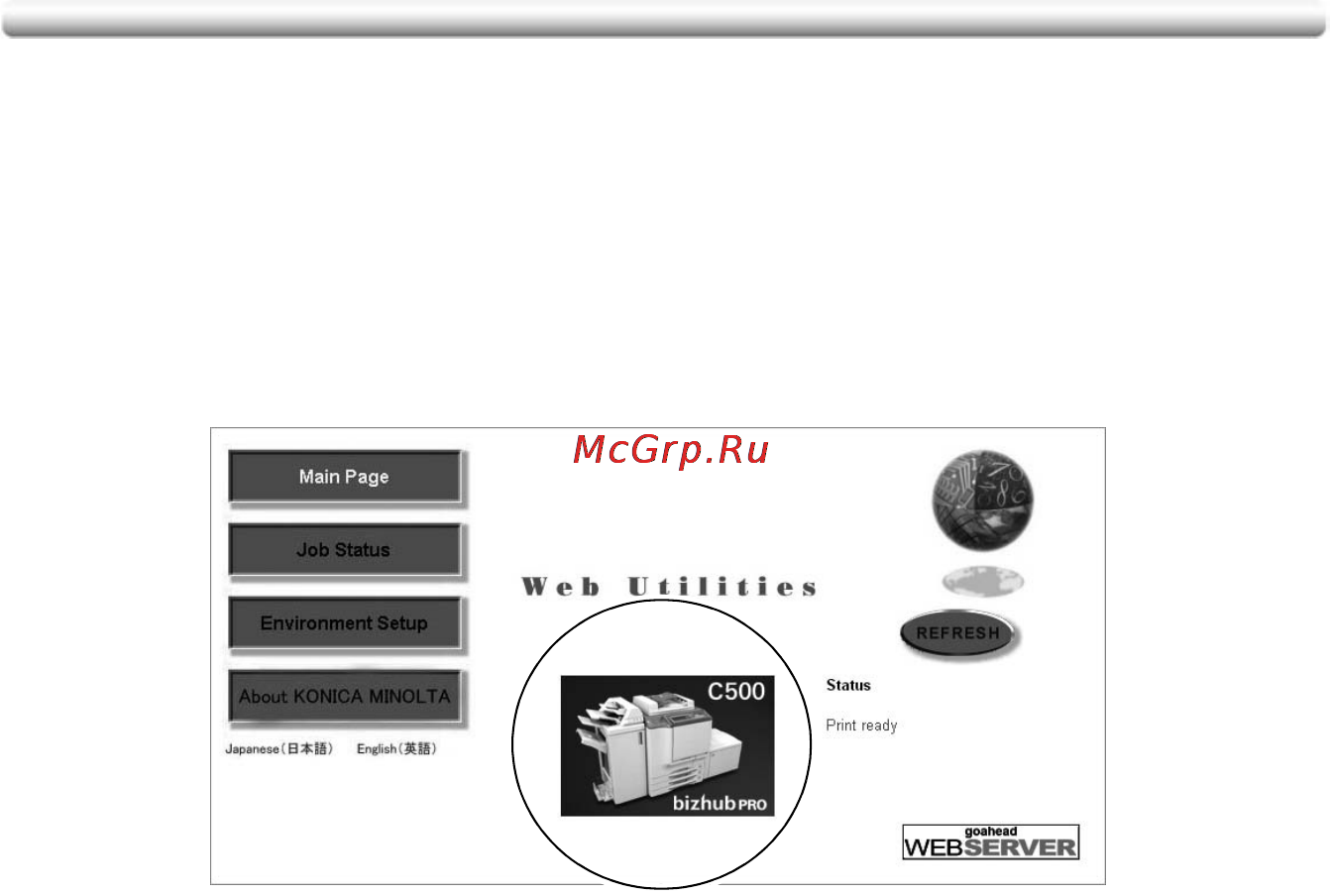

2. Click on the bizhub PRO C500 image.
The window now provides the paper tray configuration, engine configuration,
option information and ROM version information.
