Konica Minolta bizhub PRO C500 [454/466] Timing adjustment

[23] Timing Adjustment

14-56

[23] Timing Adjustment

Use this mode to make fine adjustments of the timing for printing or scanning

function.

- Printer lead edge timing adj.: adjusts the lead edge timing.

- Printer registration loop adj.: adjusts the paper loop amount in the registration

roller section.

- Printer pre-registration adj.: adjusts the paper loop amount in each tray and

ADU pre-registration roller section.

- Printer erasure amount adj.: conducts a leading edge erasure amount

adjustment.

- Scanner re-start timing adj.: adjusts re-start timing for original scanning.

- RADF registration loop adj.: adjusts the original loop amount in the RADF

registration roller section.

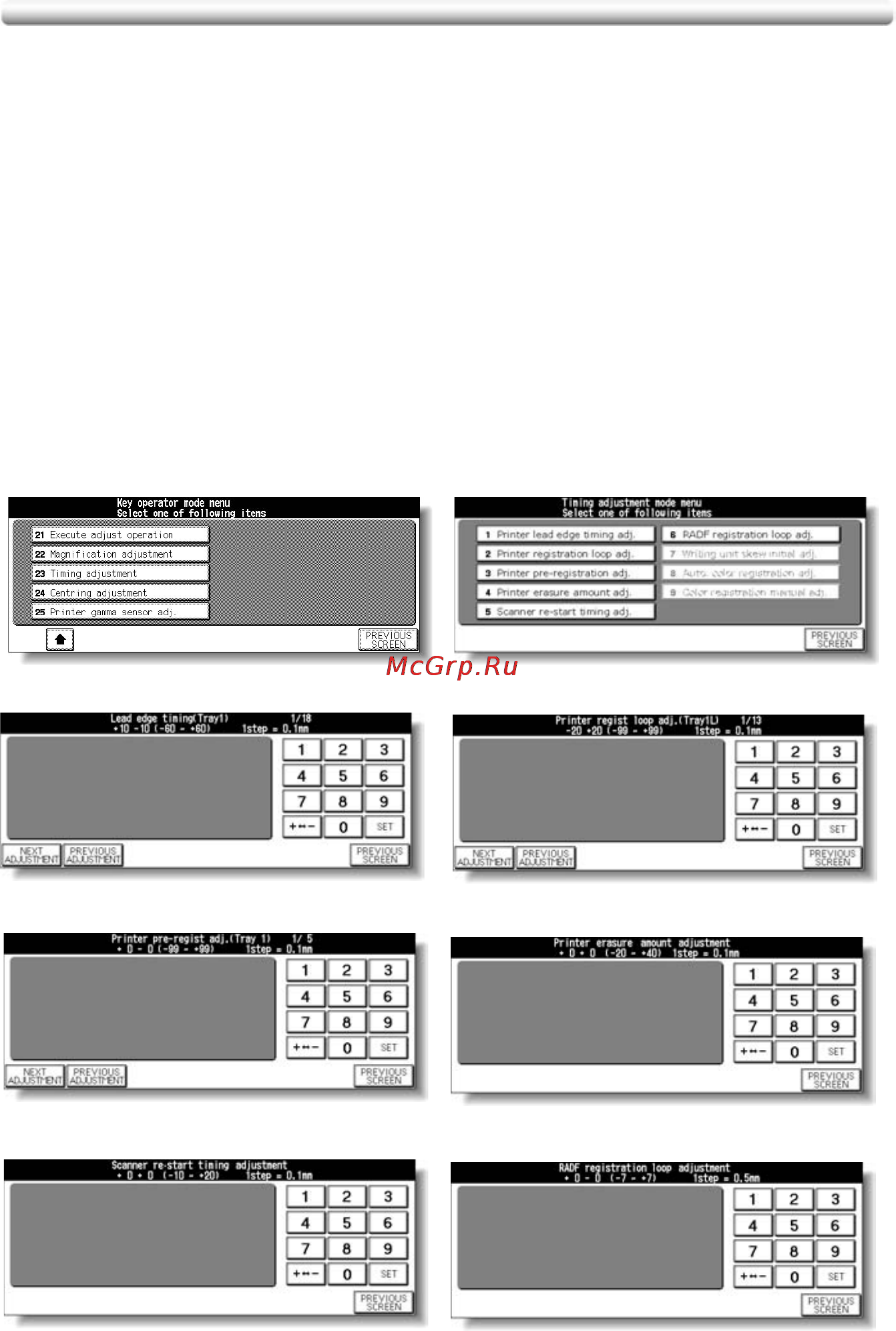

Key Operator Mode Screen Timing Adjustment Menu Screen

Printer Registration Loop Adjustment Screen

Printer Lead Edge Timing Adjustment Screen

Printer Erasure Amount Adjustment Screen

Printer Pre-registration Adjustment Screen

RADF Registration Loop Adjustment Screen

Scanner Re-start Timing Adjustment Screen
