Output Mode for Machine without Finisher
3-48

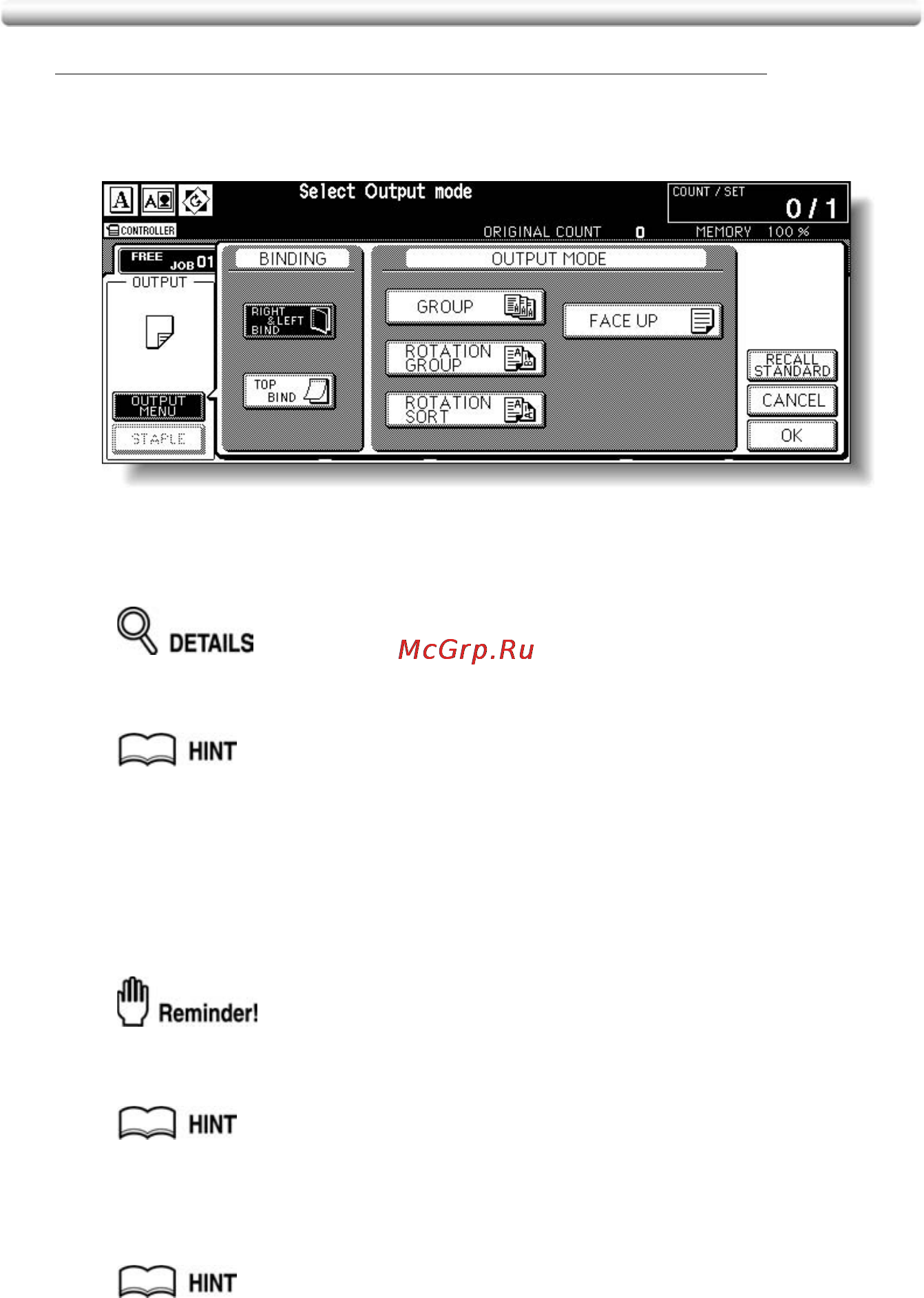

To select Group, Rotation group, Rotation sort or Face up mode:
Touch OUTPUT MENU on the Basic Screen to display the Output Mode
popup menu, then touch the desired mode key to highlight it.
To use Face up mode in combination, simply touch FACE UP to highlight it.
3. Touch OK on the Output Mode popup menu.
The Basic Screen will be restored with the output icon indicating the Output
mode currently selected.
Touch CANCEL on the Output Mode popup menu to restore the previous
setting.
Touch RECALL STANDARD to restore the initial setting.
See the next page for details of the output icons displayed on the Basic
Screen.
4. Select additional copy conditions, as desired.
5. Enter the desired print quantity from the control panel keypad.
The exit tray capacity is 120 sheets. Be sure that the capacity is not
exceeded.
See p. 3-10 for details on setting print quantity.
6. Position original(s) FACE UP in the document feeder or FACE
DOWN on the platen glass.
See p. 3-4 for details on positioning originals.
7. Press [START].
