Storing Overlay Image in HDD (Overlay Memory)
8. Press [START] to scan.

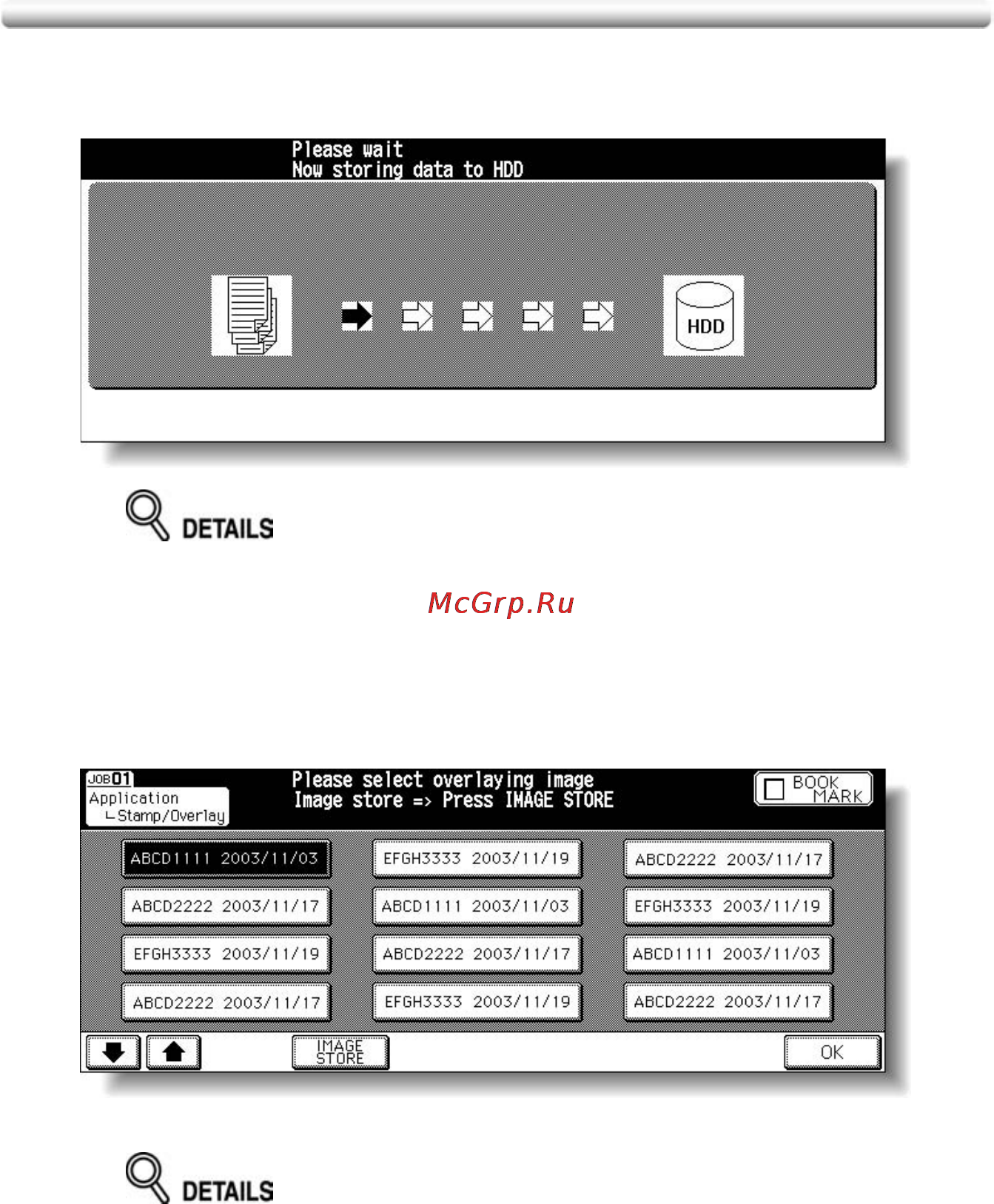

The Overlaying Image Data Storing Screen will be displayed.
To stop scanning, press [STOP].
The machine automatically starts to store the overlaying image data in the
HDD. The Overlaying Image Selection Screen will resume when the storing
function is completed.
To continue to store the overlaying image data, return to step 4.
9. Touch to select the desired overlaying image data, then touch OK.
The Stamp/Overlay Selection Screen will be restored.
Image Delete Key on the Overlay Image Selection Screen
If the IMAGE DELETE key is displayed on the Overlay Image Selection
Screen, you can delete the stored image and name. Select the image name
using up/down arrow key to scroll, then touch IMAGE DELETE.
10. Touch OK to return to the Application Selection Screen.
11. Touch OK to return to the Basic Screen.
The Store mode is automatically selected, and APS and AMS are released.
Set the desired conditions on the Basic Screen.
