8-5
Rotation

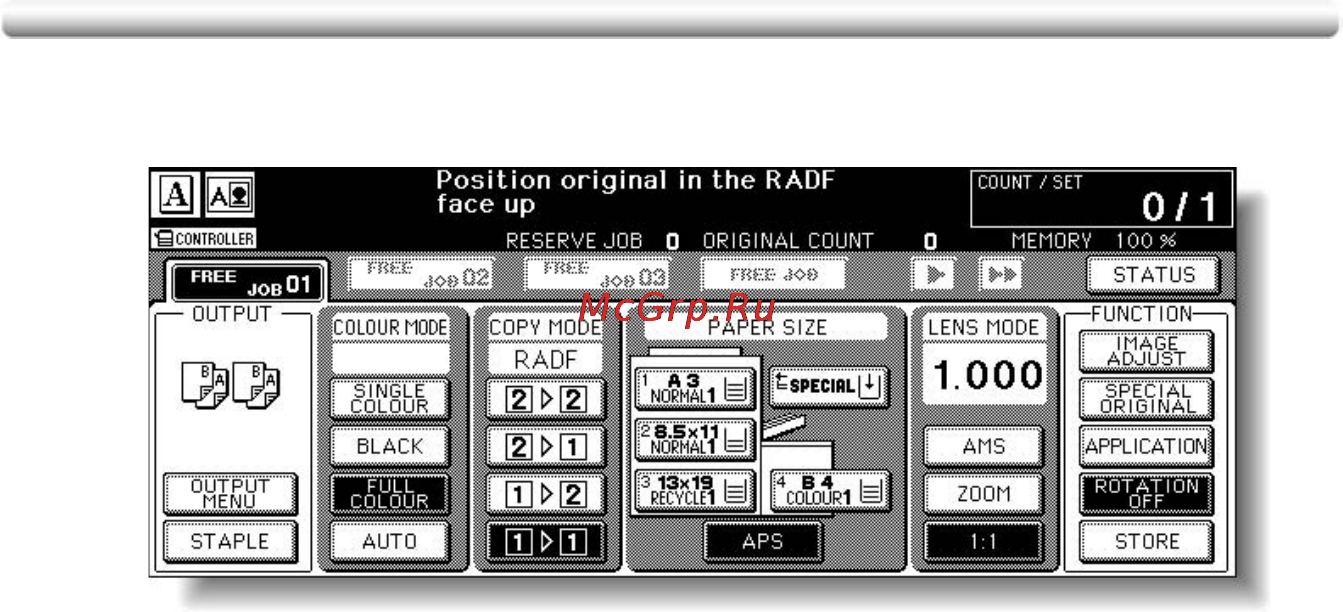

1. Touch ROTATION OFF on the Basic Screen to highlight it.
When Rotation is released, the Rotation icon on the Basic Screen will
disappear to indicate that this function is cancelled.
2. Touch to deselect ROTATION OFF to resume this function.
When Rotation is resumed, the Rotation icon will be displayed on the screen.
