Setting E-Mail Transmission Function
11-8
Setting E-Mail Transmission Function
Make the Key Operator setting concerning the network environment using the web
browser.
For details of the E-Mail Transmission Setting, refer to p. 14-9.

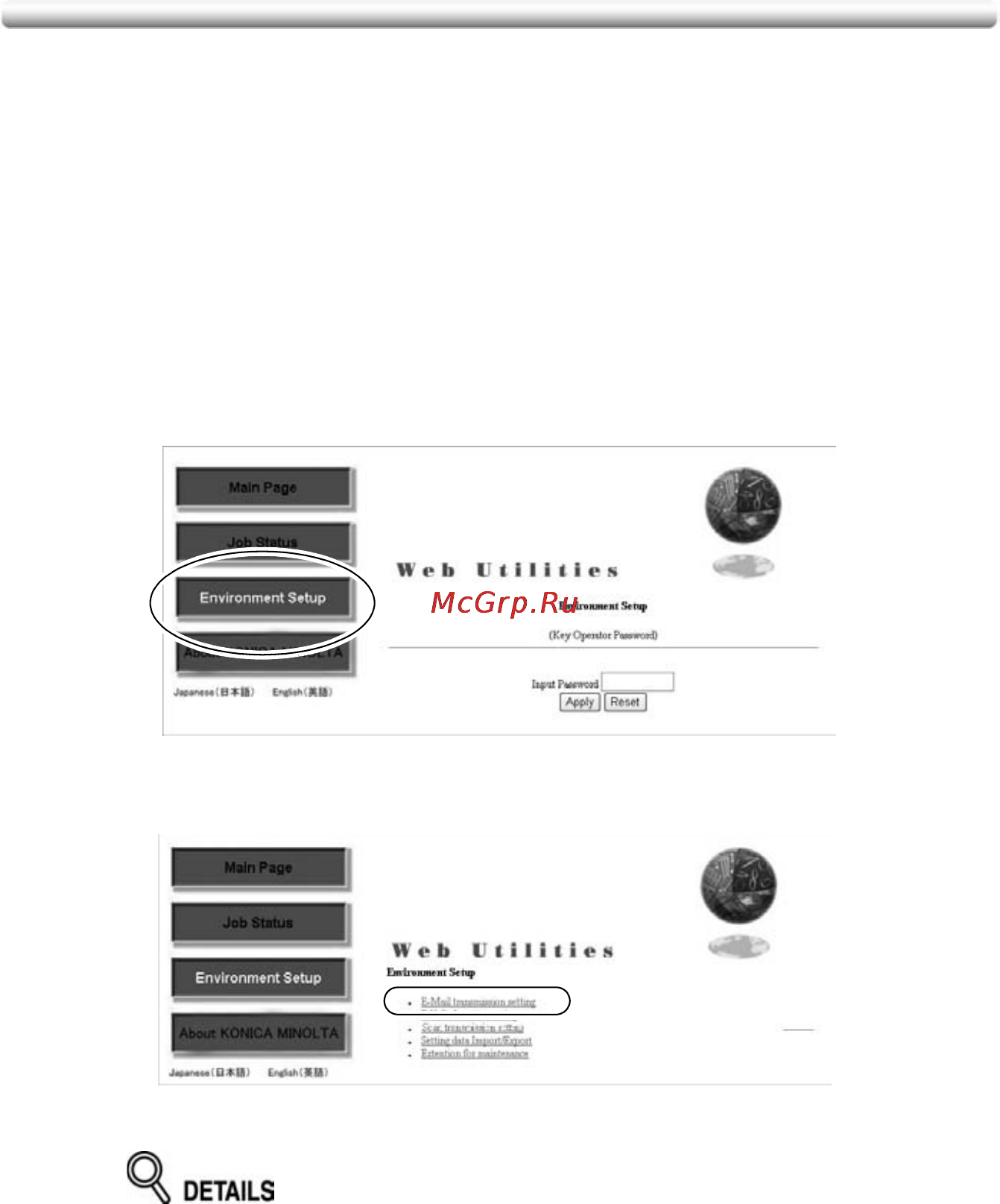

1. Open the Web Utilities window.
2. Click on [Environment Setup].
3. Display the E-Mail Transmission Setting window.
Enter the 4-digit Key Operator password, then click on [Apply].
Click on [E-Mail transmission setting].
The E-Mail Transmission Setting window will be displayed.
The Extension for maintenance option will be exclusively used by your
service representative.
