Empty Waste Basket of PK-507/PK-508 Punching Kit
13-12

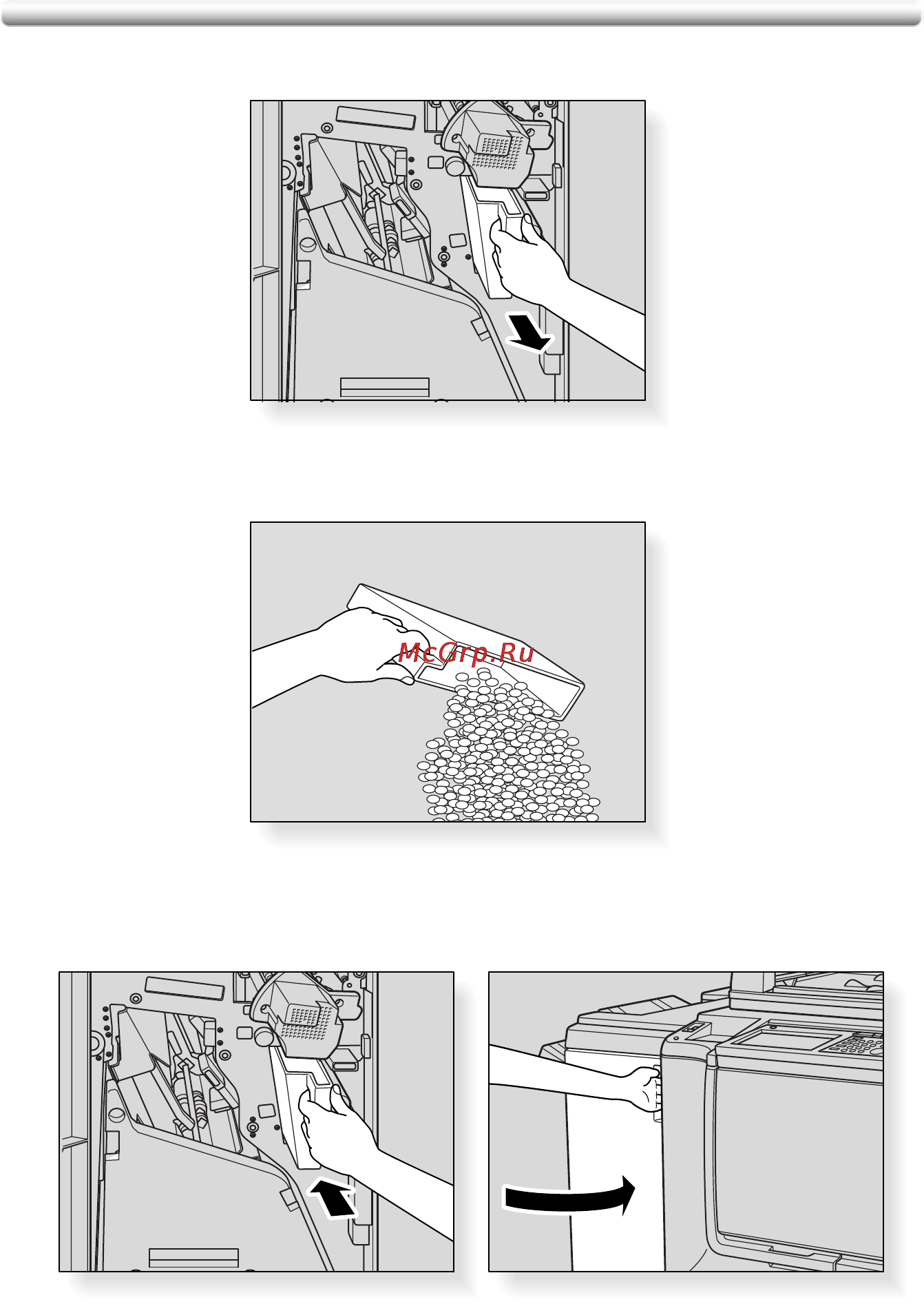

2. Withdraw the waste basket.
3. Empty the waste basket.
4. Return the waste basket to its original position, then close the
Finisher door securely.
