Konica Minolta bizhub PRO C500 [388/466] Exchanging toner recovery box
![Konica Minolta bizhub PRO C500 [388/466] Exchanging toner recovery box](/views2/1122251/page388/bg184.png)
Exchanging Toner Recovery Box
13-16

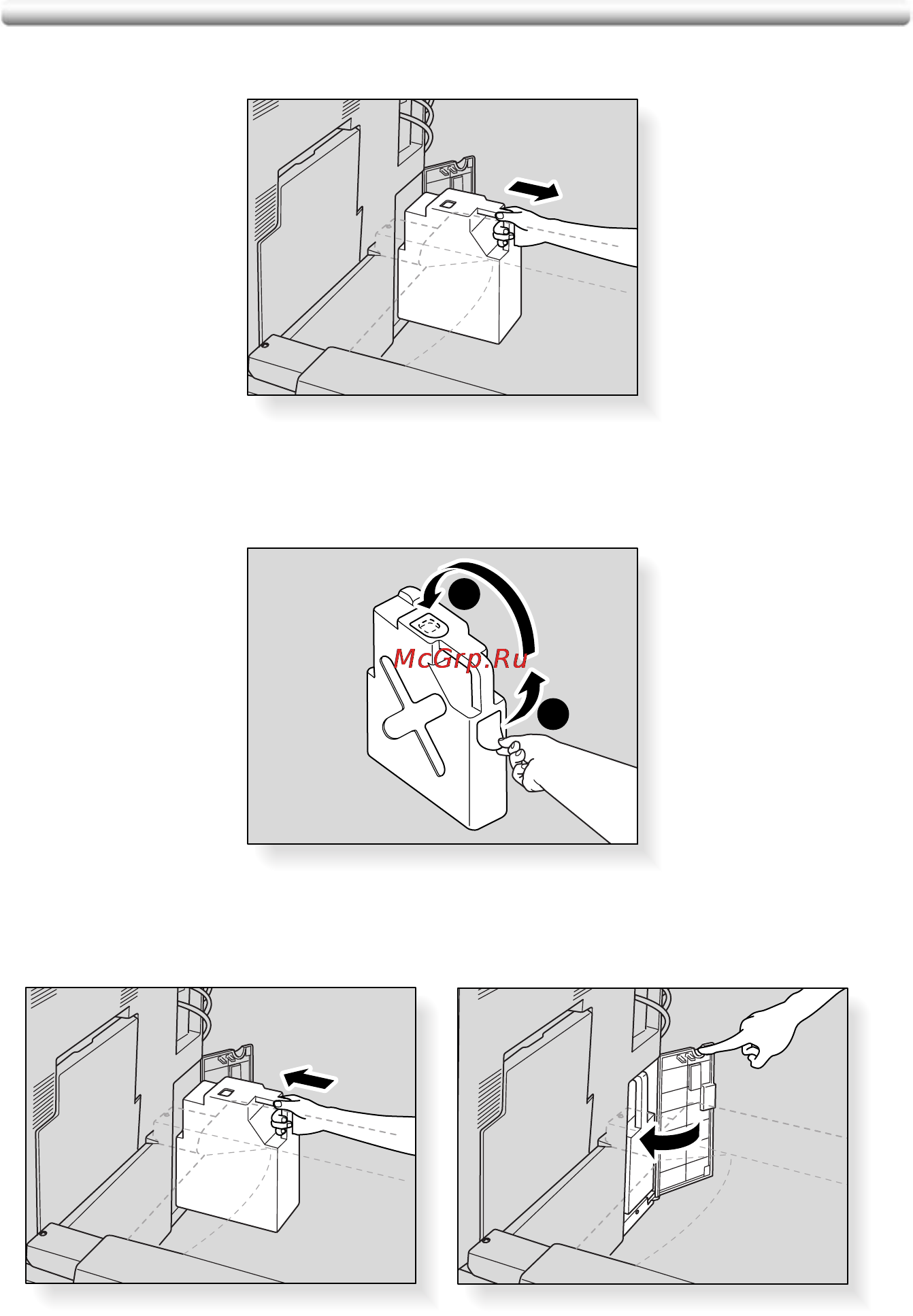

2. Withdraw the toner recovery box.
3. Remove the sticker on the toner recovery box, then put it on the
inlet of the used toner.
4. Set the new toner recovery box, then close the toner recover box
door.
1
2
