7-27
Changing Colours Using RGB and HSB Values (Colour
touch a key from +1 to +4 to make yellow closer to green, and green closer to
cyan (Adjustment goes clockwise in the colour circle.).
Touch STD. to select the middle level.
Touch OK. The Colour Adjustment Screen will be restored.
• To resume the previous setting, touch CANCEL.
• Use Adjustment Proof Copy to check the adjustment result. See p. 7-22.

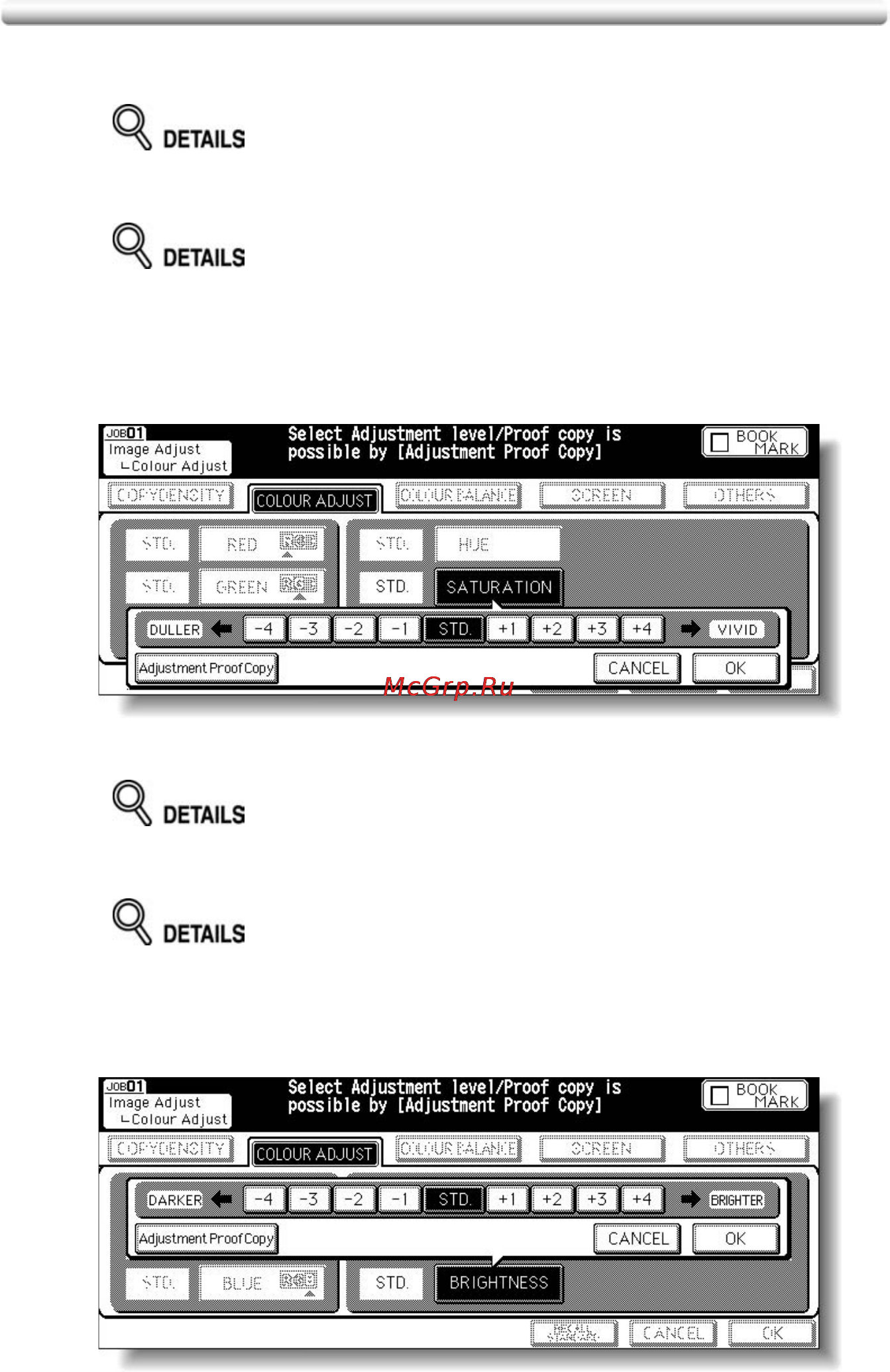

4. Make an adjustment to Saturation.
Touch SATURATION.
Touch the desired level key from -1 to -4 to make the colours dull, or from +1 to
+4 to make them vivid.
Touch STD. to select the middle level.
Touch OK. The Colour Adjustment Screen will be restored.
To resume the previous setting, touch CANCEL.
5. Make an adjustment to Brightness.
Touch BRIGHTNESS.
