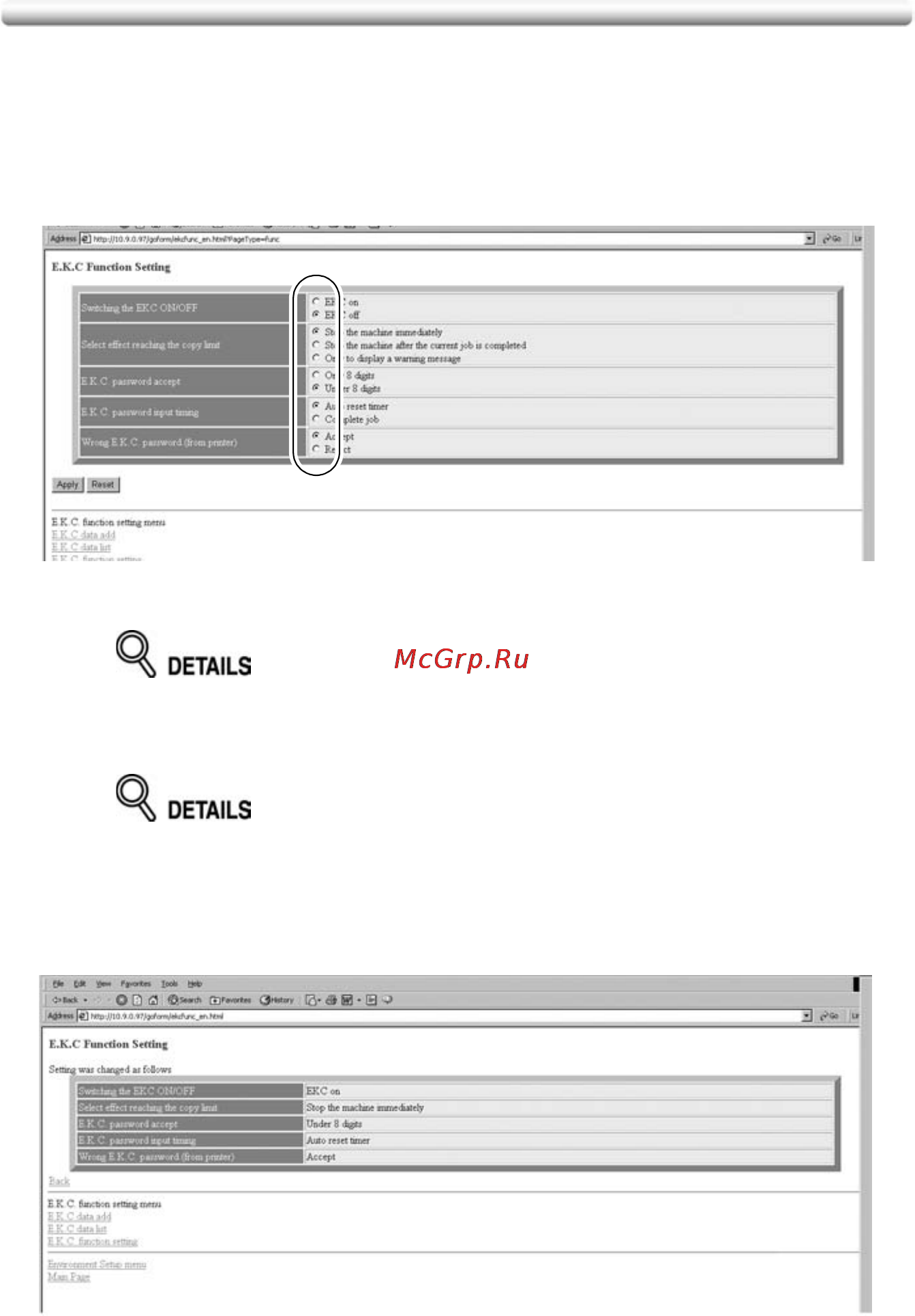

Setting E.K.C. Function
11-20
6. Set the E.K.C. function.
Click on [E.K.C. function setting] in the E.K.C. Function Setting menu window
(see p. 11-10) or from the menu in any subsequent window.
The E.K.C. Function Setting window will be displayed.
Click on the radio button (white circle) of the desired selection item(s) so that a
black dot appears in it.
Click on [Apply]. The change made in the settings will be transmitted
immediately for the user operations.
To restore the previous setting, click on [Reset].
To cancel the E.K.C. function setting, click on any E.K.C. Function Setting
menu item.
Error Message
If an error message is displayed after clicking on [Apply], a setting has not
been completed due to a machine operation in progress. The machine must
be in an idle state when you click on [Apply].
Click on [Back] to return to the E.K.C. Function Setting menu window or any
menu item to jump to the desired window.
