Konica Minolta bizhub PRO C500 [77/466] To change print quantity
![Konica Minolta bizhub PRO C500 [77/466] To change print quantity](/views2/1122251/page77/bg4d.png)
3-11
Setting Print Quantity
To Change Print Quantity
Follow the procedure below to change the print quantity that has been already
entered.

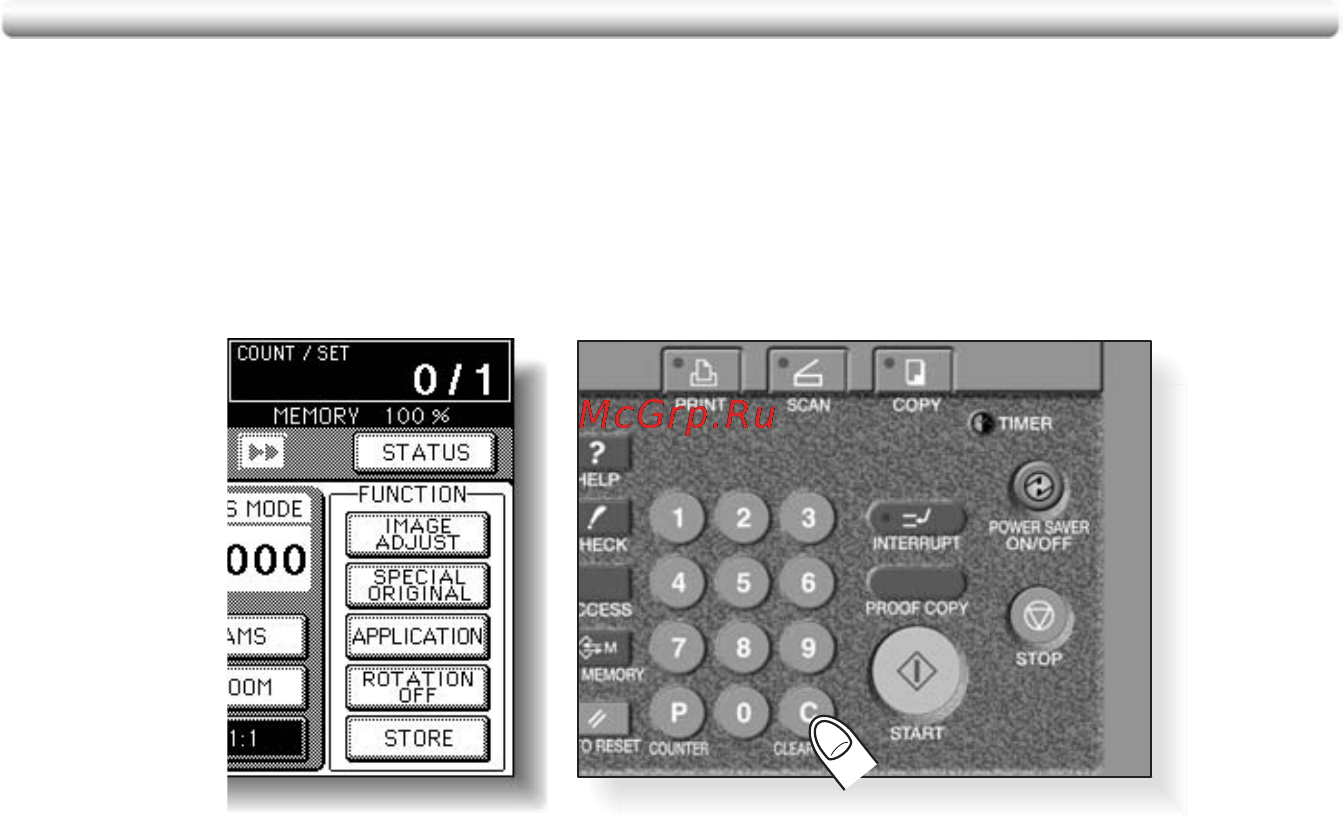

1. Press [C (CLEAR QTY.)].
The quantity displayed on the touch panel will return to 1.
2. Enter the correct quantity.
Entered quantity will be displayed on the touch panel.
