Konica Minolta bizhub PRO C500 [47/466] Machine configuration
![Konica Minolta bizhub PRO C500 [47/466] Machine configuration](/views2/1122251/page47/bg2f.png)
2-15

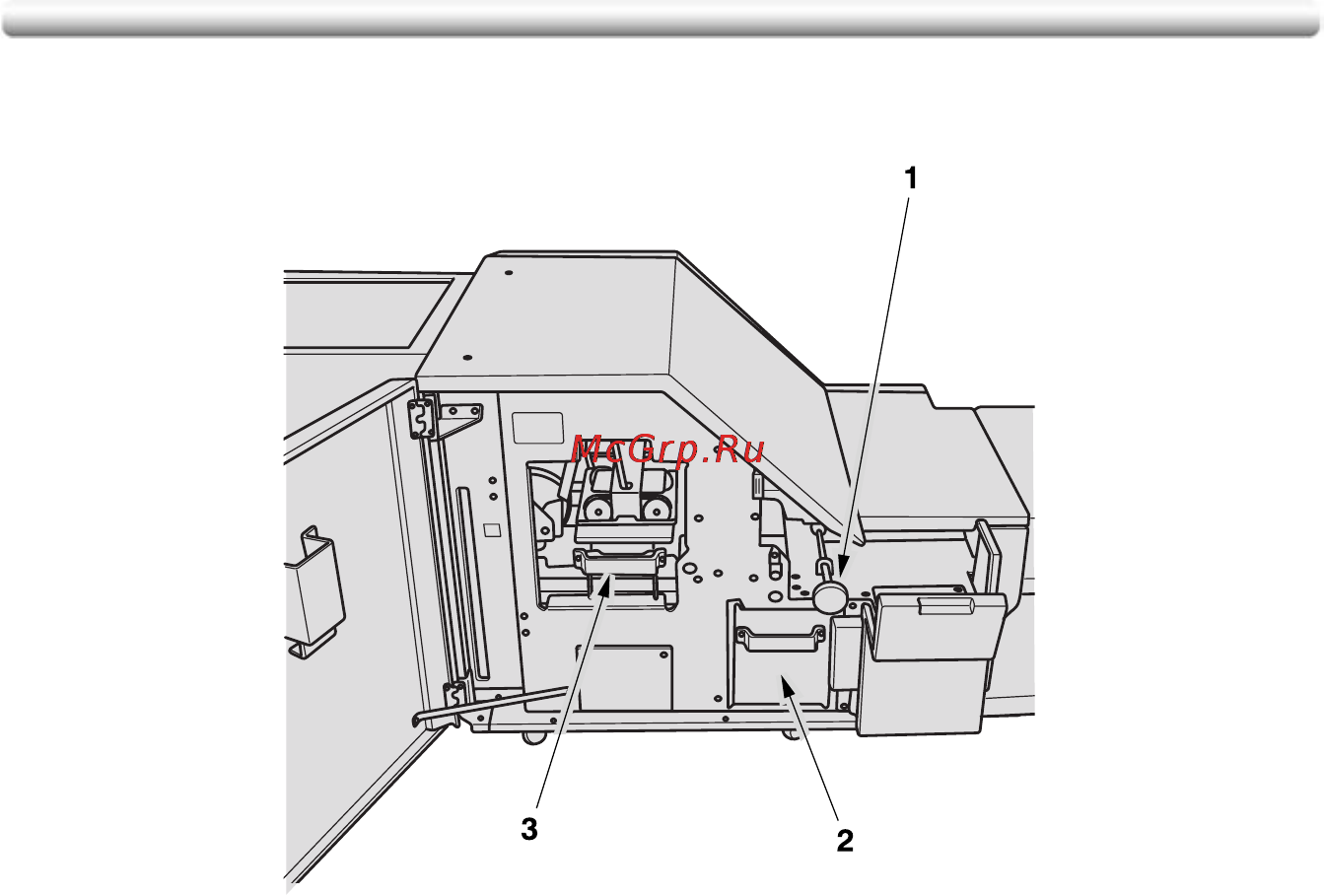

Machine Configuration
1 Trimmer unit knob can be turned to ease removal of mishandled paper.
2 Waste basket holds waste paper cut off from the booklets.
3 Trimmer pressure release lever opens to allow removal of mishandled
paper.
