10-5
Inserting Sheets and Covers (Sheet/Cover Insertion)
1. Load regular sheets into any tray, and insertion sheets and covers
into each tray source to be designated on the Sheet/Cover
Insertion Screen.
• When using thick paper or tabbed paper for covers or insertions, load
them in the Multi-sheet bypass tray, unless previously specified and
loaded in any other tray.
• Be sure that the trays for copy paper, front/back covers, and insertions
have the same paper size loaded.

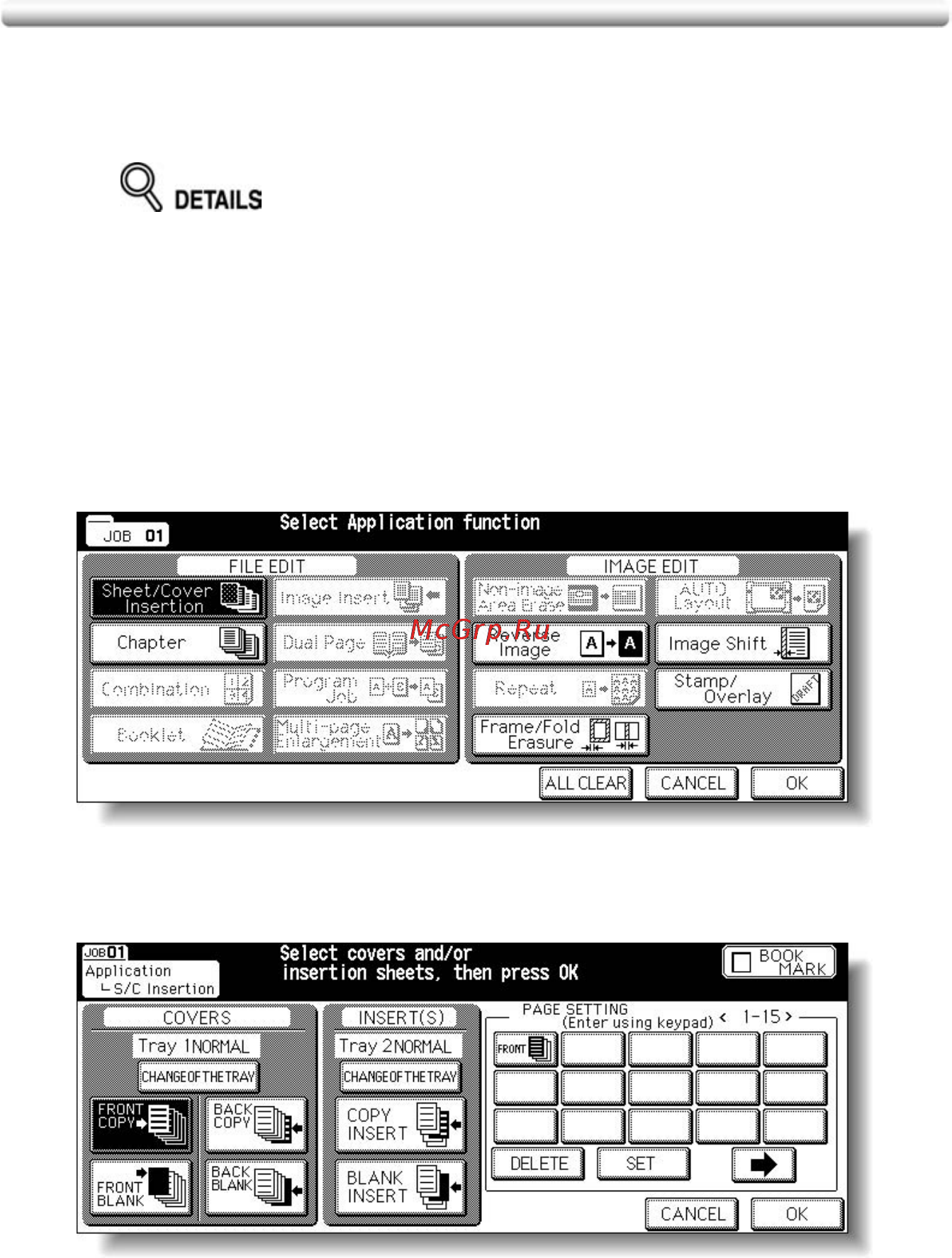

2. Touch APPLICATION on the Basic Screen.
When starting a new copying job, be sure to close the RADF securely, then
press [AUTO RESET].
3. Touch Sheet/Cover Insertion on the Application Selection Screen.
The Sheet/Cover Insertion Screen will be displayed.
4. Select the desired cover mode.
Example: Touch FRONT COPY to insert a copied front cover.
