3-23
Copying Using Special Paper (Multi-Sheet Bypass Tray)

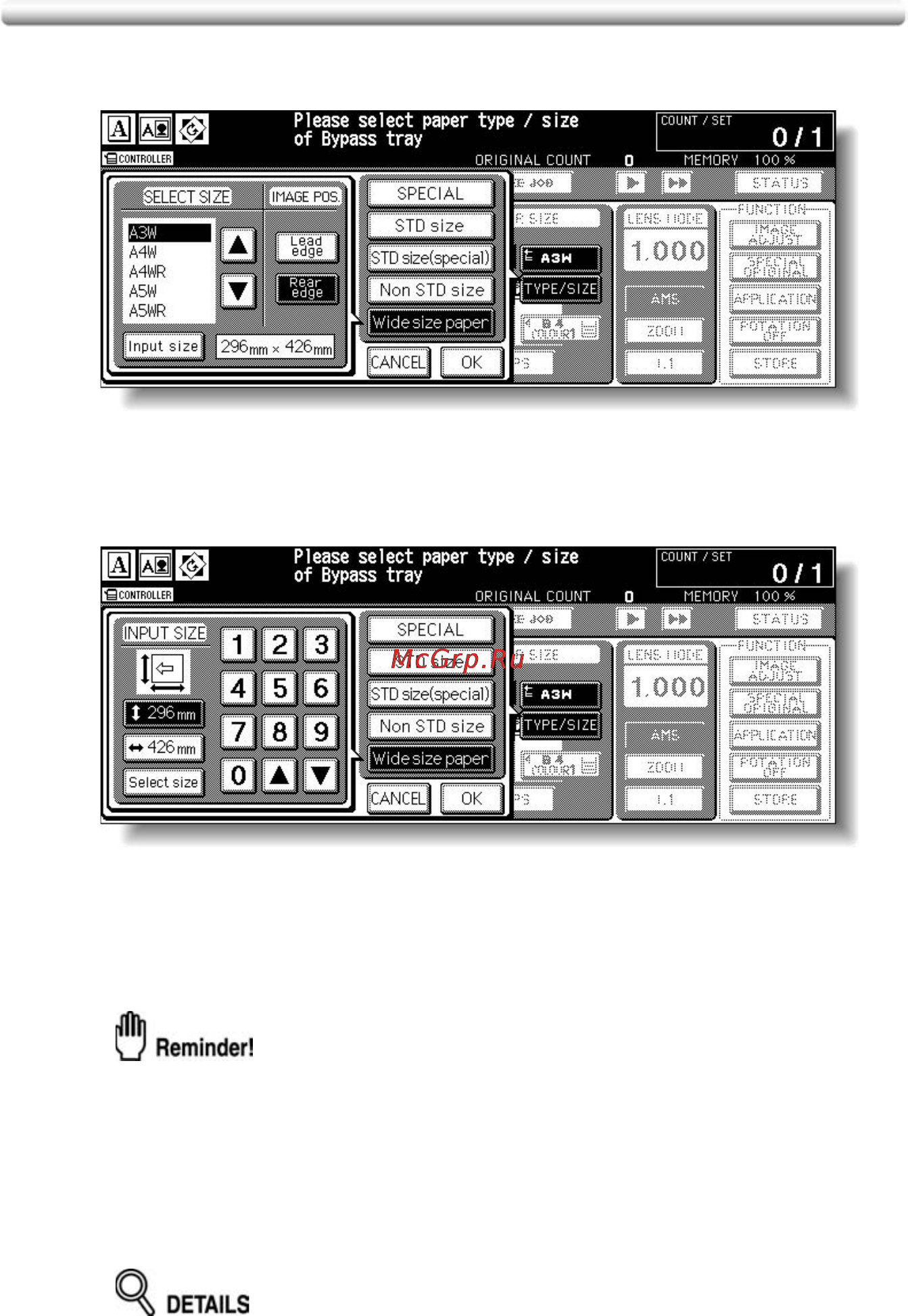

To select the Wide size paper:
Touch Wide size paper to display the popup menu, use arrow keys to scroll to
the desired wide size, then touch Lead edge or Rear edge to select the paper
dimensions corresponding to the wide paper sizes entered.
Touch Input size to display the Input Size popup menu, touch the vertical or
horizontal size key to highlight it, then use the keypad on the popup menu to
enter the vertical/horizontal size, or use arrow keys to scroll to that number.
The entered number should fall within the range from the vertical/horizontal
size of the standard size corresponding to the selected wide size, to a
maximum of 330 mm/487 mm.
When selecting Wide size paper, be sure to specify the actual size of the wide
size paper to be loaded. Wide paper size information is not initially input in
this machine.
6. Touch OK.
The Basic Screen will be restored. The bypass tray key shows the specified
size, paper type and the number indicating paper weight, and is highlighted
along with the TYPE/SIZE key.
When the STD size (special) or Wide size paper is selected, the size specified
on the popup menu will be indicated on the bypass tray key.
When Non STD size is selected, the SPECIAL indication will appear instead.
