14-17
[4] EKC (Electronic Key Counter) Function Setting
NOTES:
1 We recommend that you make a list of all EKC passwords and account
numbers.
2 If an invalid user name or numeric value is entered, continue by entering
the valid one.
(3) Touch OK to complete the setting and to verify whether the same password
or name has been already used for another account number.
When a password is duplicated:
The Password Duplication Screen will be displayed. Touch YES to re-enter
new password, or NO to create duplicate password.
NOTE:
If duplicate password is created, the number of copies will be counted only
for the EKC password with the smallest number. We recommend you do not
use duplicate EKC passwords.
When a name is duplicated:
The Name Duplication Screen will be displayed. Touch OK to re-enter new
name.
(4) If any duplication has not occur, the EKC Data Edit Screen will be restored.
To Delete EKC Data:
(1) Touch o or n key on the right side of the list to highlight the EKC data to be
deleted, then touch Delete. The Delete Confirmation Screen will be
displayed.
(2) Touch YES to delete, or NO to cancel.
To Clear EKC Count:
(1) Touch o or n key on the right side of the list to highlight the desired EKC
data, then touch Count Reset. The Reset Confirmation Screen will be
displayed.
(2) Touch the desired colour mode key to clear the copy count of the selected
mode.
3 Touch PREVIOUS SCREEN on the EKC Data Edit Screen to return to the EKC
Setting Menu Screen.
4 Touch PREVIOUS SCREEN to restore the Key Operator Mode Screen.

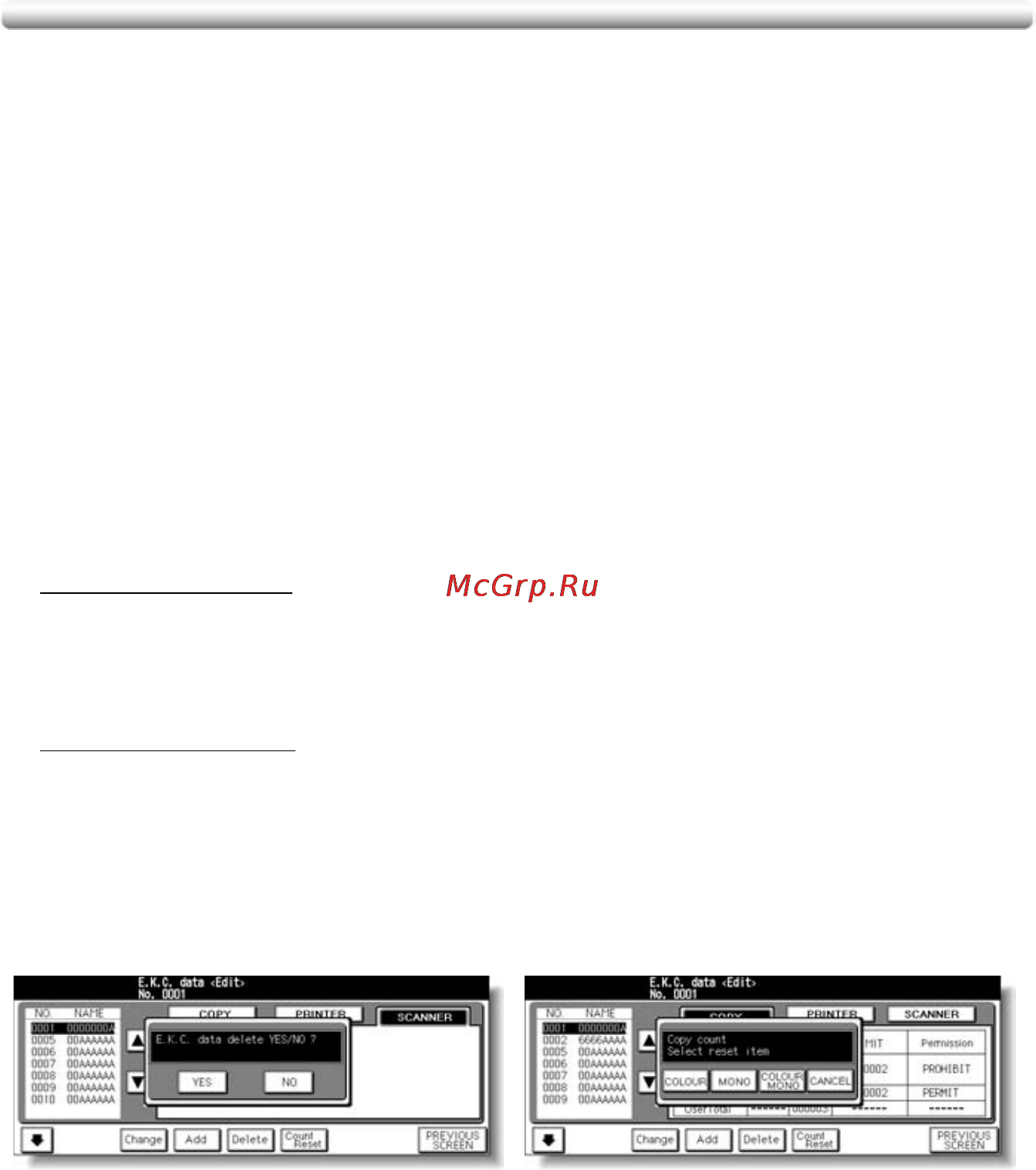

Delete Confirmation Screen
Reset Confirmation Screen
