Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 3-33
Image Quality

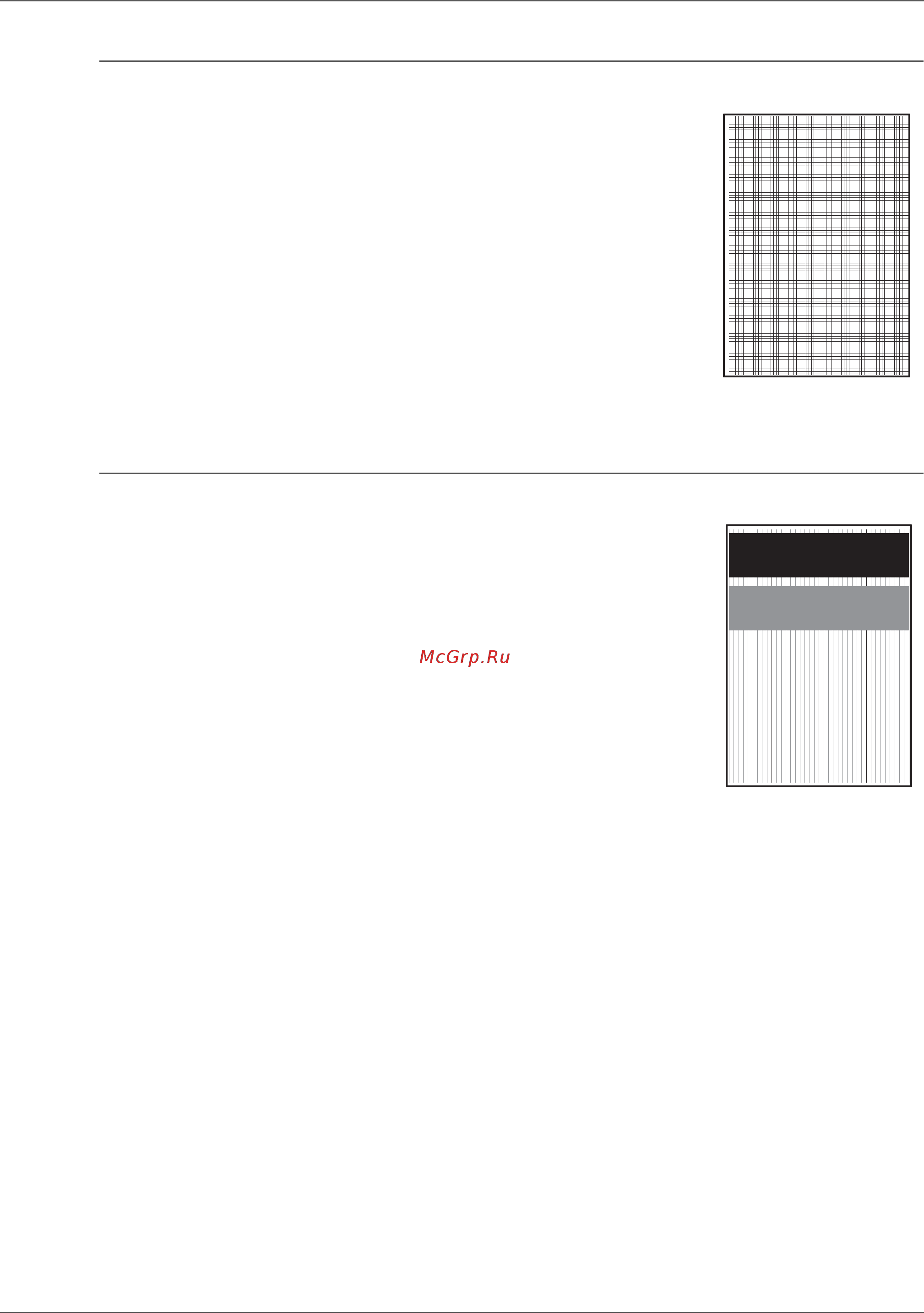

TestPatASIC[IOT] Test Pri nt
Prints theprint engine test pattern.
If the pattern does not print correctly, check the
MCU Board. If the pattern prints OK, check the
Image Processor Board.
TestPatLPH[IOT] Test Pr int
Prints the IP Board grid pattern.
Compare the print with the sample. If the test print
does not match the test print shown here, check the
MCU Board. If the test print is OK, check that the
printer is connected correctly.
s3040-176
