3-26 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Image Quality
Skew
The image is not parallel with both sides of the paper.
Initial Actions
• Verify that the paper guides are set correctly.
• Check the media path.
• Ensure there is no debris on the transfer path.
• If feeding through the manual feed slot, try feeding from Tray 1.
Note
The Main Paper Tray is recommended for paper feeding because paper fed
from the Bypass Tray is more prone to skew.
Troubleshooting Reference Table

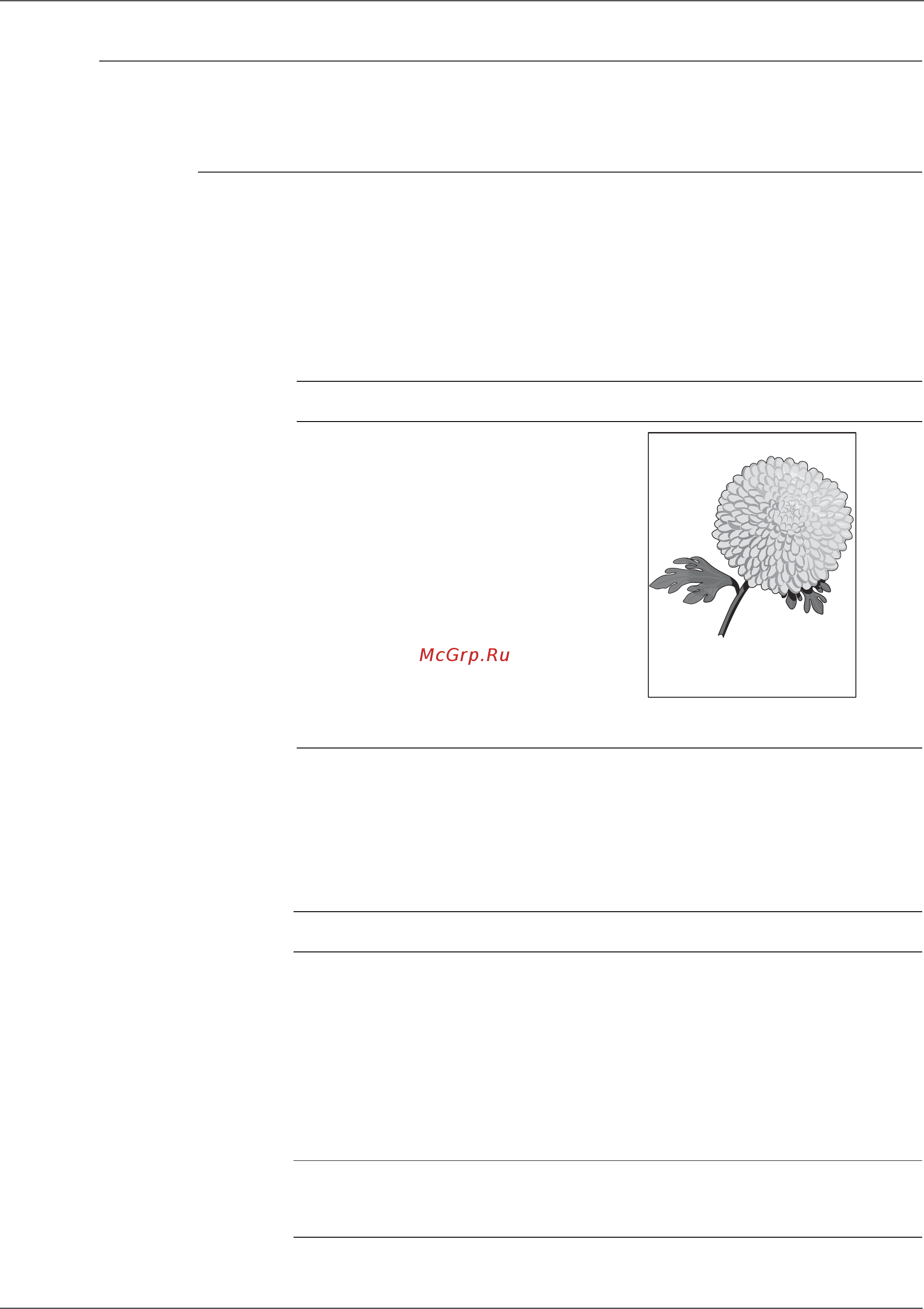

Applicable Parts Example Print
■ Feed Roller, PL2.2.4
Left and Right Feed Roller Cam,
PL2.2.2 and PL2.2.7
■ Registration Roller, PL2.3.1
■ Registration Pinch Roller, PL2.3.2
■ Separator Roller, PL2.1.5
■ MCU Board, PL7.1.3
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check Registration Roller and
Registration Pinch Roller rotation.
Put the printer in diagnostic mode
andthe Main Drive Motor (see
“Using Service Diagnostics” on
page 2-23).
Do the rollers rotate?
Go to Step 6. Go to Step 2.
2 Replace the Main Drive Motor
(page 4-41).
Does the image print correctly?
Complete. Go to Step 3.
Skew 2
