4-64 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Service Parts Disassembly

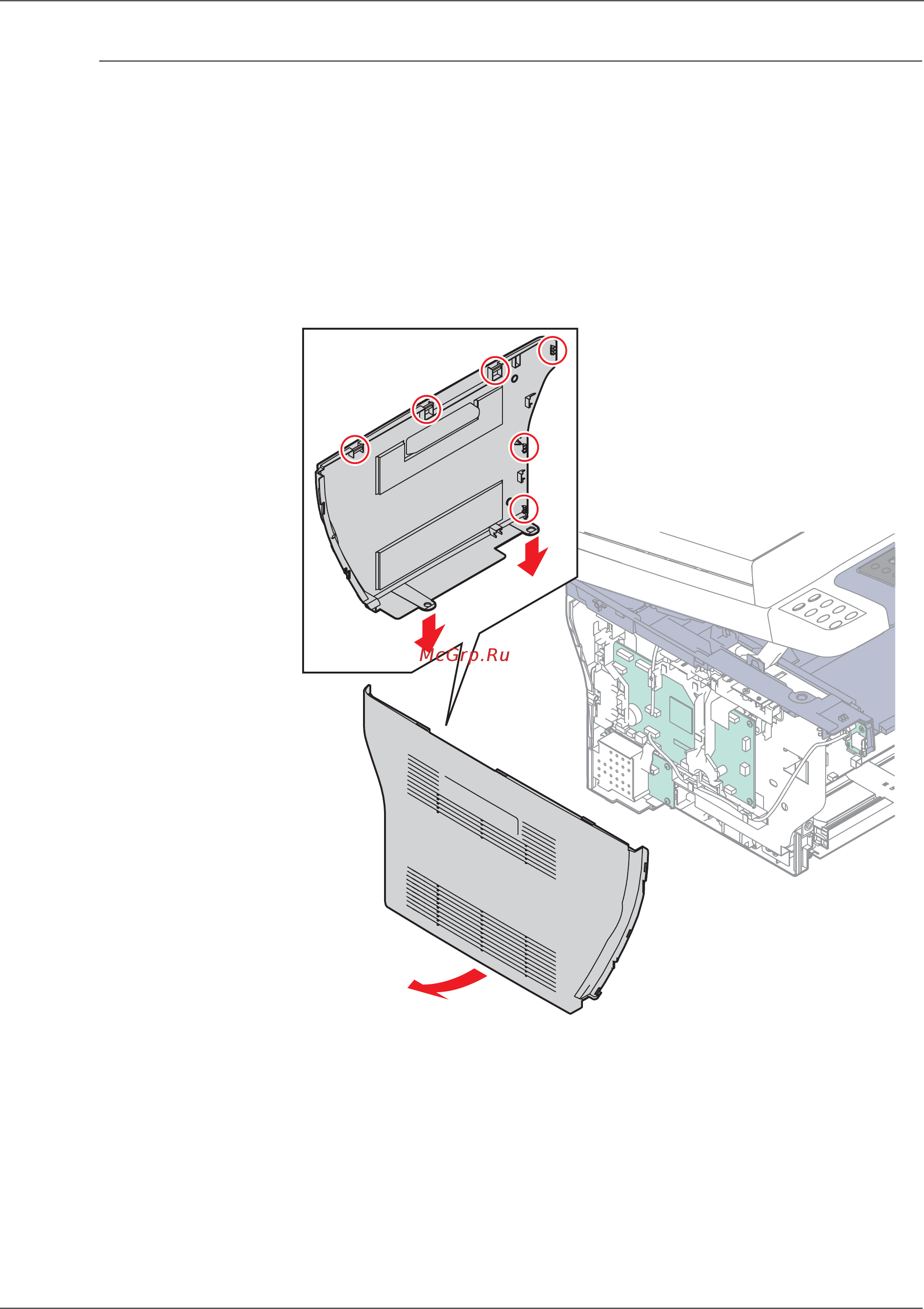

Left Cover
PL1.1.28
1. Remove the Main Tray (page 4-58).
2. Raise the Scanner.
3. Remove the Front Cover (page 4-60).
4. Remove the Inner Front Cover (page 4-62).
5. Release the 2 bosses on the bottom of the Left Cover.
6. Release several hooks that secure the cover to the Top and Rear Covers.
s3040-067
