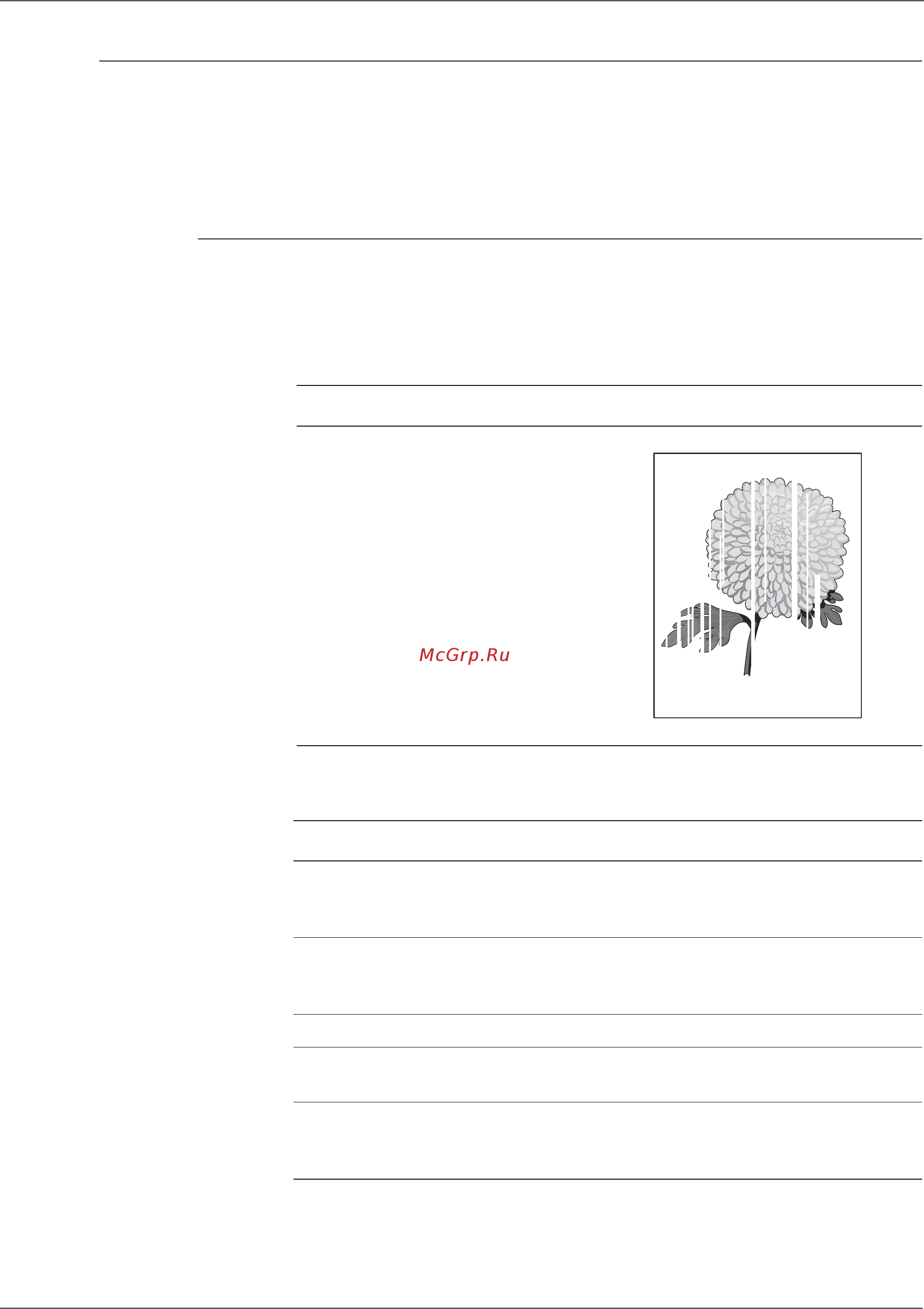

3-14 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Image Quality
Streaks
Streaks appear on the output.
Warning
Allow the Fuser to cool before servicing the printer.
Initial Actions
• Check the paper transfer path.
• Ensure there is no debris on the transfer path.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Transfer Roller, PL1.1.11
■ Fuser, PL5.1.1
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Clean the LED window and media
path.
Does the image print correctly?
Complete. Go to Step 2.
2 Check the paper being used.
Is it approved paper?
Go to Step 4. Load supported
media, then go
to Step 3.
3 Does the image print correctly? Complete. Go to Step 4.
4 Reseat and lock the Toner Cartridge.
Does the image print correctly?
Complete. Go to Step 5.
5 Replace the Transfer Roller
(page 4-10).
Does the image print correctly?
Complete. Replace the
Fuser
(page 4-38).
