Xerox Phaser 3010 [308/430] Workcentre 3045 electrical
![Xerox Phaser 3010 [308/430] Workcentre 3045 electrical](/views2/1228085/page308/bg134.png)
4-98 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Service Parts Disassembly
WorkCentre 3045 Electrical
HVPS
PL7.1.2
1. Remove the Main Tray (page 4-58).
2. Remove the Front Cover (page 4-60).
3. Remove the Inner Front Cover (page 4-62).
4. Remove the Left Cover (page 4-64).
5. Remove the Right Cover (page 4-57).
6. Remove the Scanner (page 4-109).
7. Disconnect P/J7601 from the Front USB Board.
8. Disconnect P/J6501 from the WiFi Adaptor.
9. Remove the Top Cover (page 4-52).
10. Remove the Toner Motor (page 4-37).
11. Remove the Toner Dispense Assembly (page 4-36).
12. Remove the MCU Board (page 4-43).

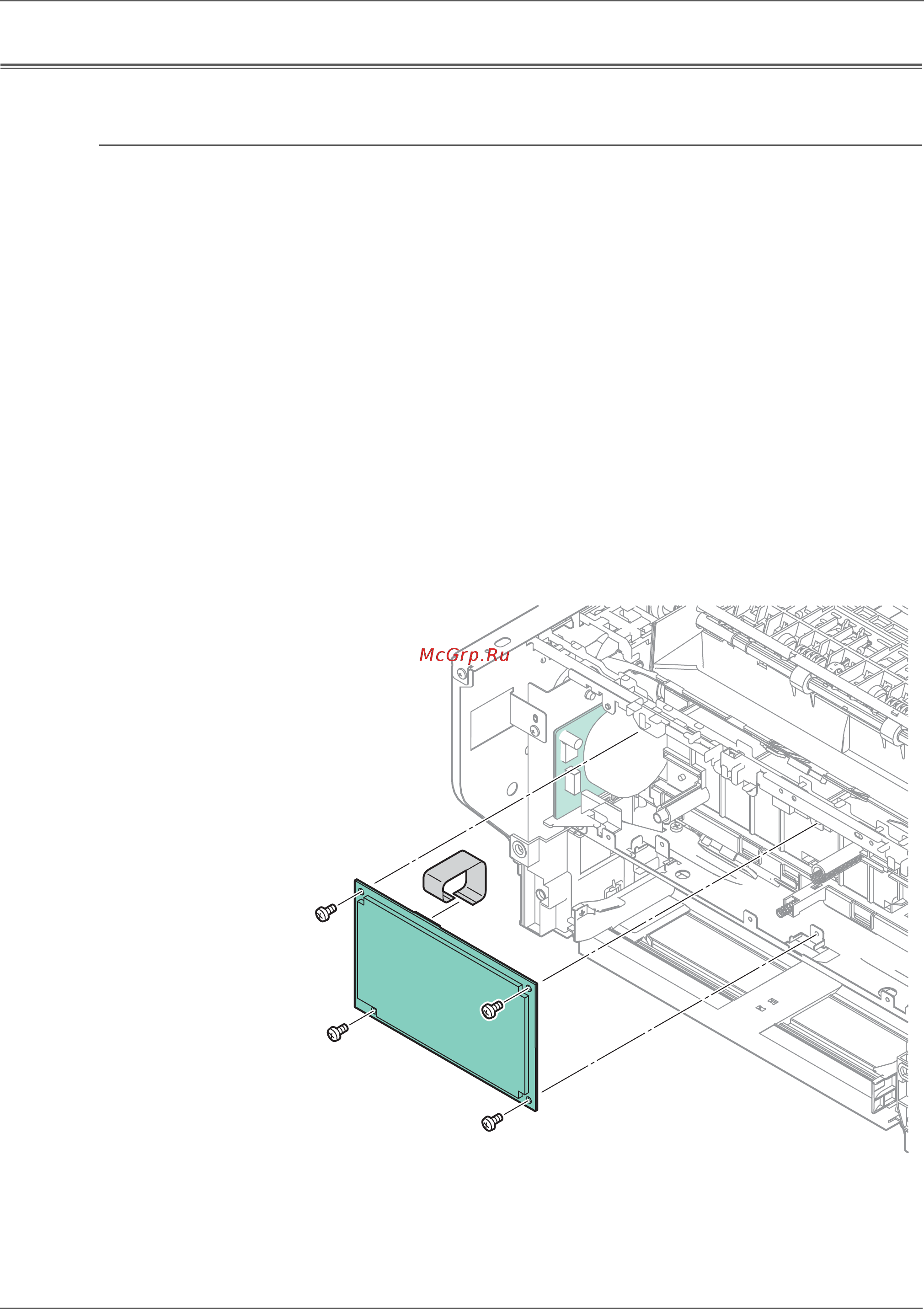

13. Remove 4 screws (silver, metal, 6 mm) that secure the HVPS.
s3040-087
