Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 4-27

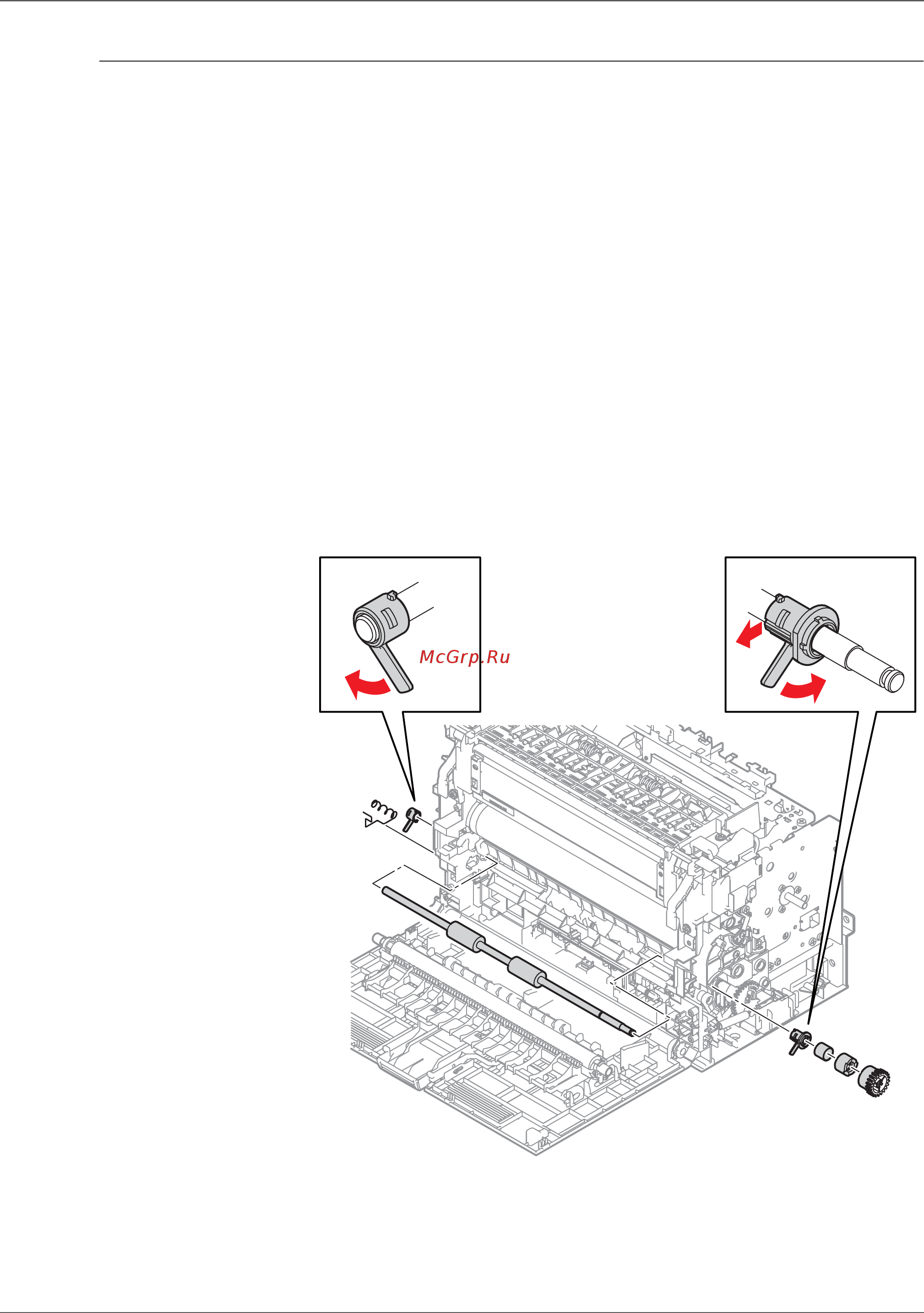

Service Parts Disassembly
Registration Roller
PL2.3.1
1. Open the Rear Door (page 4-8).
2. Remove the Left Cover (page 4-16).
3. Remove the Right Cover (page 4-12).
4. Remove the Top Cover (page 4-7).
5. Remove the Rear Cover (page 4-11).
6. Remove the Power Switch Assembly (page 4-46).
7. Remove the IP Board (page 4-45).
8. Remove the LVPS (page 4-48).
9. Remove the IP Board and LVPS brackets (page 4-49).
10. Remove the Main Drive Assembly (page 4-40).
11. Remove the registration pinch roller (page 4-26).
12. Remove the registration gear, clutch and spring from the Registration Roller
shaft.
13. Remove the bearing from each end of the roller shaft, then remove the roller
from the chassis.
s3040-035
