5-2 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Parts Lists

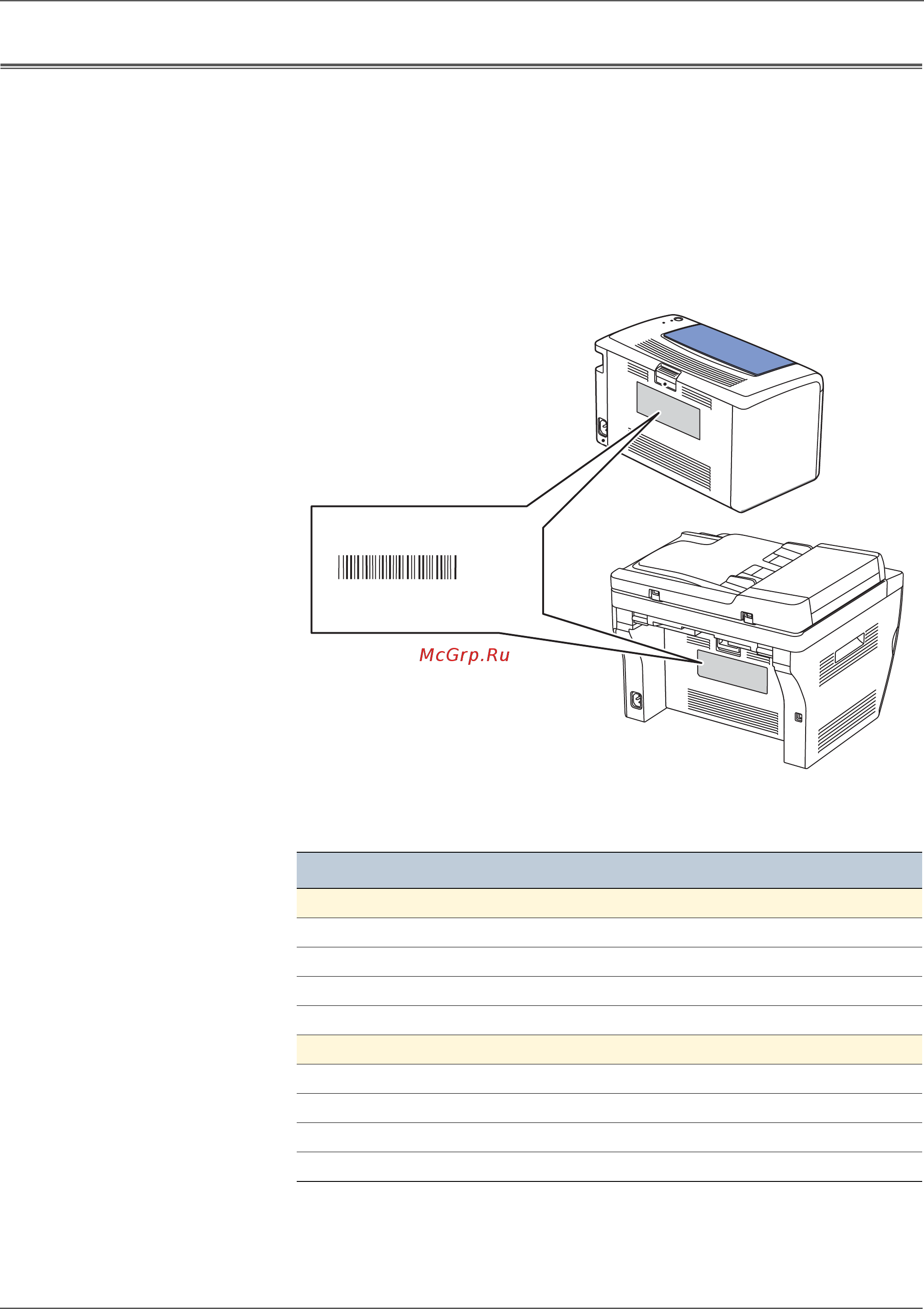

Serial Number Location and Range
Changes to Xerox products are made to accommodate improved components.
When ordering parts include this information:
• Component's part number
• Product type or model number
• Serial Number of the printer
The serial number is located on the Rear Door.
Product Codes and Serial Number Ranges
Model Code Local Start End Description
DMO-E
3010V_B BD8 317 673501 873500 3010V/B, USB, 220v
3040V_B BE0 317 873501 973500 3040V/B, USB, 220v
3045_B BE1 317 300501 348500 3045B, USB, Ethernet, 110V
3045_NI BE3 316 960001 983000 3045NI, USB, Wireless, 110V
DMO-W
3010_B BD7 316 260001 310000 3010B, USB, 110v
3040_B BD9 316 310001 335000 3040B, USB, 110v
3045V_B BN6 319 158001 273000 3045V/B, USB, Ethernet, 220V
3045_NI BN7 319 273001 353000 3045V/NI, USB, Wireless, 220V
MANUFACTURED: June, 2011
Xerox S/N: BE39060012
