4-66 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Service Parts Disassembly
WiFi Adaptor (3045N)
PL1.1.31

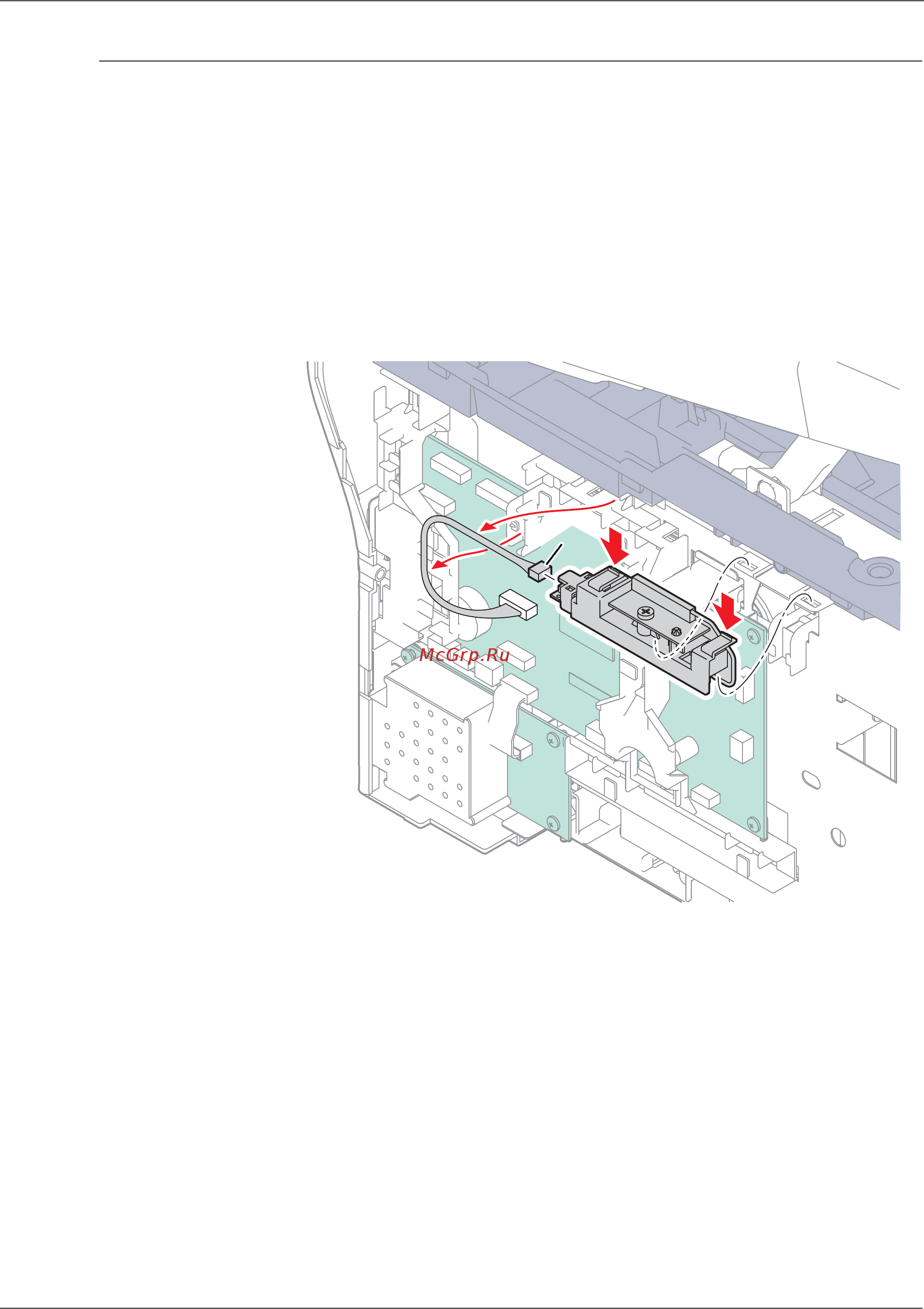

1. Remove the Main Tray (page 4-58).
2. Raise the Scanner.
3. Remove the Front Cover (page 4-60).
4. Remove the Inner Front Cover (page 4-62).
5. Remove the Left Cover (page 4-64).
6. Disconnect P/J6501 on the IP Board.
7. Release 2 hooks that secure the WiFi Adaptor.
s0340-069
P/J6501
