Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 1-9
General Information

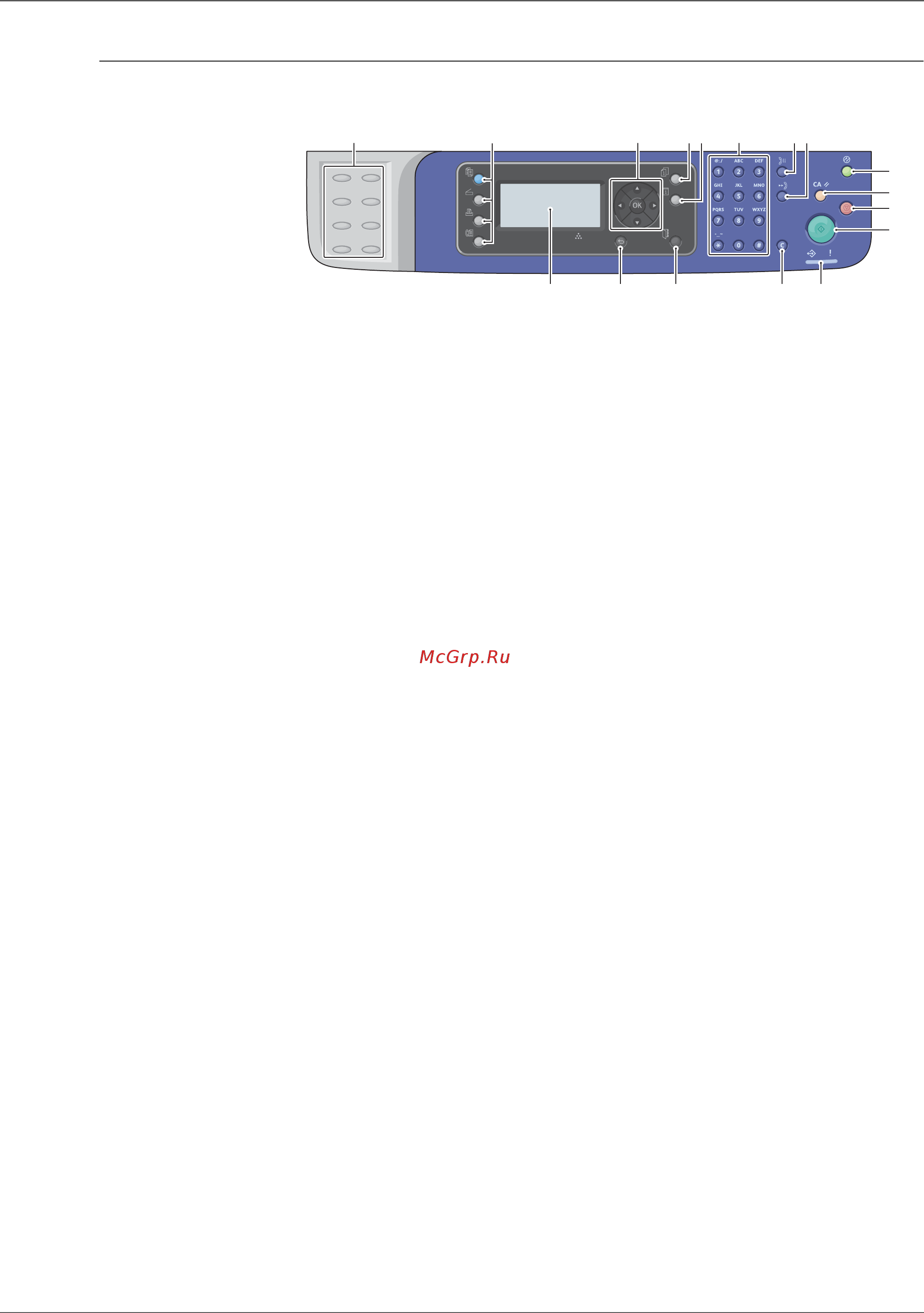

3045N Control Panel Button Descriptions
1. Direct Address
Keys(8)
Press to quickly dial Fax number s that are registered in
the Phone Book. The first four entries are assigned to
the keys.
2.
■ Copy
■ Fax
■ Scan
■ Print
Use these buttons to move to the top of each menu.
3. Navigation/
Menu select
buttons (5)
Scroll up, down, forward, and back through the menus.
Use the OK button to select a current setting/confirm
current selection.
4. Job Status
button
Press to check active job status.
5. System Switches the display to the System menus.
6. Alpha Numeric
Keypad (12)
Input and delete letters and numbers.
7. Redial/Pause
button
Press the button to recall the last Fax number used or to
insert pauses in Fax numbers.
8. Speed Dial
button
Press to access directories of group or individual Fax
telephone numbers.
9. Wake Up /
Energy Saver
button
When illuminated, indicates Low Power Mode.
Press to move to Ready to Print from Energy Saver
mode.
10. C l e a r A l l A C
button
Press to go back to the top menu of each service (Copy,
Fax…). Then, each setting becomes default for each
service.
11. Stop button Stops the current job.
12. Start button Starts the current job.
13. D a t a L ED
Error LED
Indicates the status of the printer – power and ready-to-
print.
When illuminated, indicates an error.
14. Clear button Deletes entries made on the Control Panel
15. Address Book
button
Move to Address Book menu for Fax and Email.
16. Back button Move back to previous screen.
17. LCD Indicates printer status, warnings, and error messages.
1 2
3 4
5 6
7 8
2 7 84 53 61
9
10
11
12
1314151617
s3040-105
