Xerox Phaser 3010 [246/430] Toner dispense assembly
![Xerox Phaser 3010 [246/430] Toner dispense assembly](/views2/1228085/page246/bgf6.png)
4-36 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Service Parts Disassembly

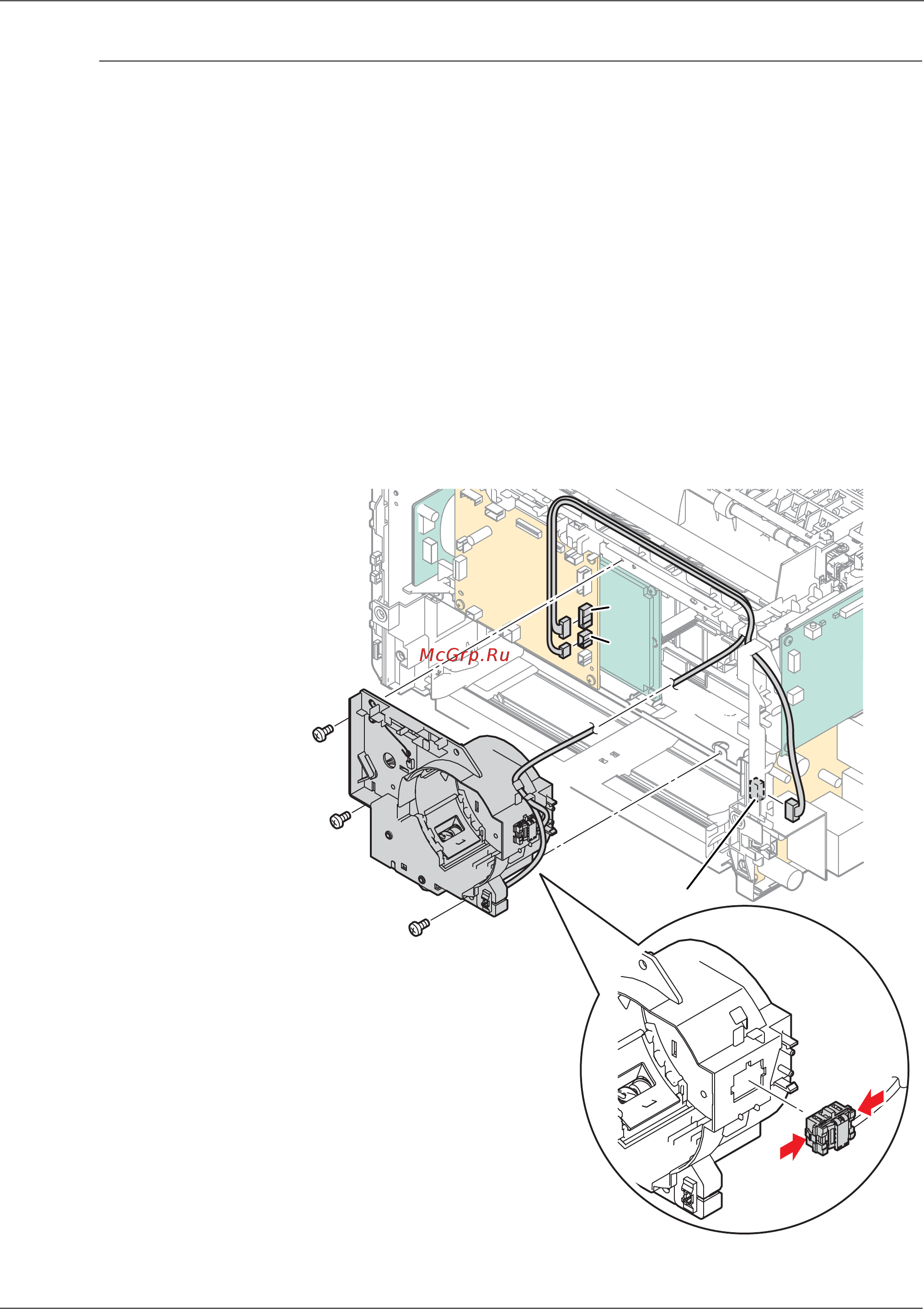

Toner Dispense Assembly
PL4.1.1
1. Remove the Toner Cartridge (page 4-5).
2. Remove the Main Tray (page 4-13).
3. Remove the Front Cover (page 4-15).
4. Remove the Right Cover (page 4-12).
5. Remove the Top Cover (page 4-7).
6. Remove the Toner Motor (page 4-37).
7. Disconnect P/J203 from the LVPS and release the harness from the guides.
8. Disconnect P/J20 and P/J21 from the MCU Board and release all the
harnesses from the Dispense Assembly harness guide.
9. Remove 3 screws (silver, metal, 6mm) that secure the Dispense Assembly to
the chassis.
10. Disconnect the CRUM reader from the Dispense Assembly to remove the
assembly.
s3040-042
P/J20
P/J21
P/J203
