Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 4-111
Service Parts Disassembly
ADF Assembly
PL 8.1.2
1. Remove the Main Tray (page 4-58).
2. Remove the Front Cover (page 4-60).
3. Remove the Inner Front Cover (page 4-62).
4. Remove the Left Cover (page 4-64).
5. Remove the Right Cover (page 4-57).

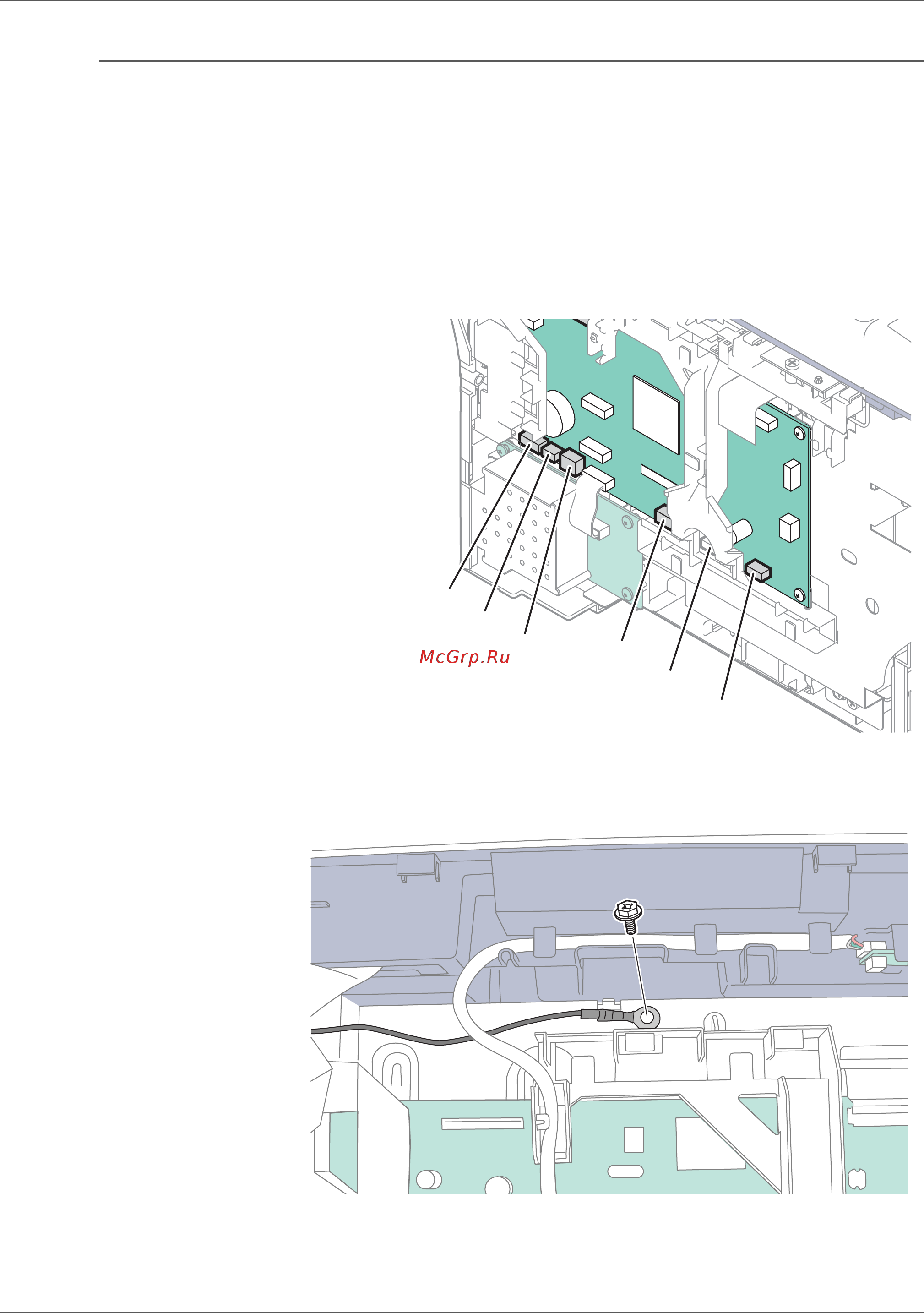

6. Disconnect P/J19, 20, 21, 22, from the IP Board.
7. Remove 1 screw that secures the ADF ground wire.
s3040-096
SJ18
SJ19
SJ22
SJ21
SJ23
SJ20
s3040-154
