Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 3-9
Image Quality

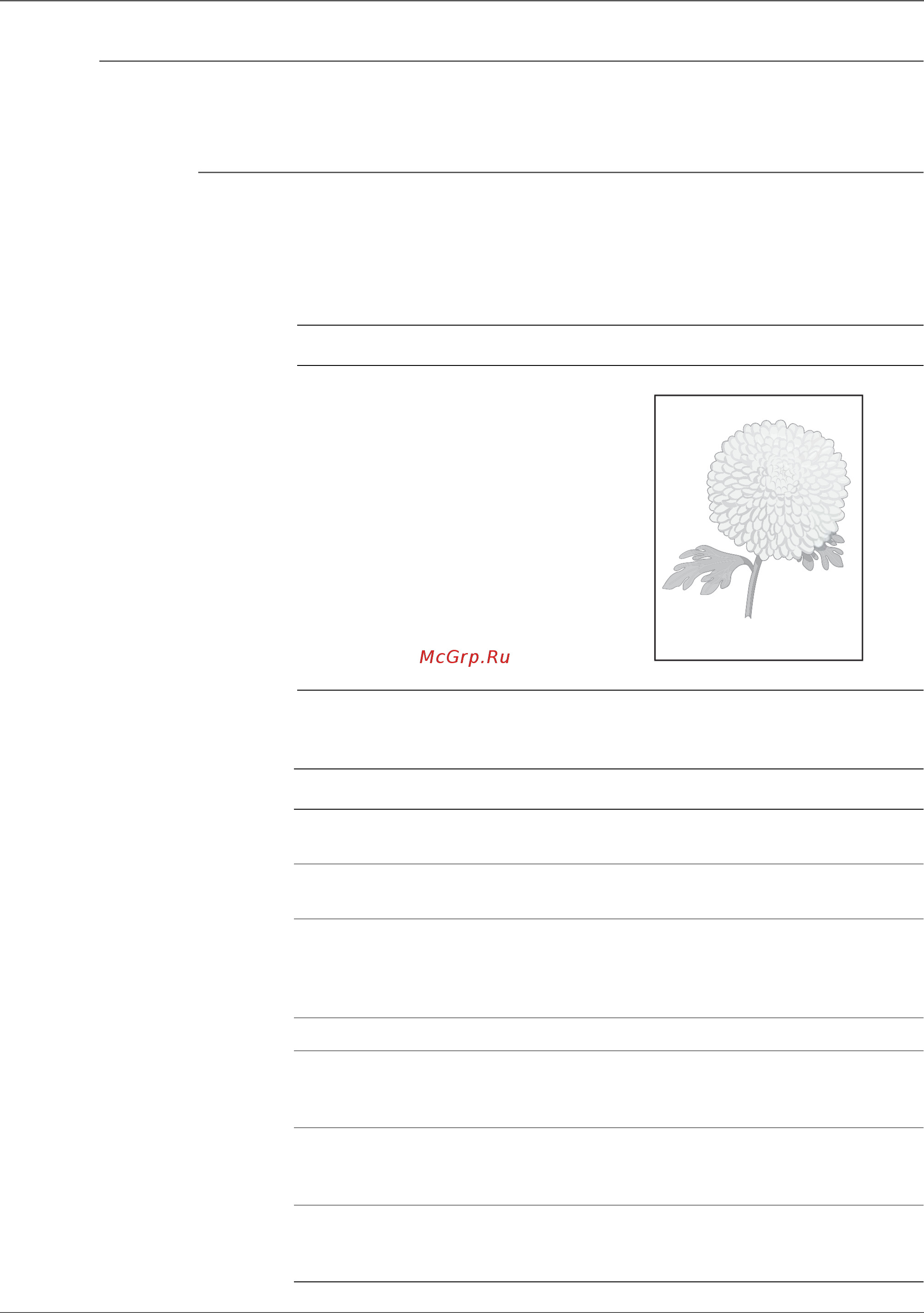

Light or Undertone Print
The overall image density is too light in all colors.
Initial Actions
• Check that the media settings match the media in use.
• Check that the media is dry and in good condition.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Transfer Roller, PL1.1.11
■ Toner Motor, PL4.1.2
■ HVPS, PL7.1.2
■ Scanner Assembly (3045NI)
PL8.1.1
■ Scanner Assembly (3045B) PL8.2.1
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Print a Test Print.
The error persists.
Go to Step 5. Go to Step 2.
2 Scan the Test print.
The error persists.
Go to Step 3. Complete.
3 Reseat Scanner connections to the
IP Board.
The error persists.
Replace the
Scanner
(page 4-109),
go to Step 4.
Complete.
4 Does the image print correctly? Complete. Go to Step 5.
5 Check the Toner Cartridge.
The Toner Cartridge is installed
correctly.
Go to Step 5. Replace the
Ton er
Cartridge.
6 Tes t t he To ner M ot o r.
The Toner Motor rotates.
Go to Step 7. Replace the
Toner Motor
(page 4-37).
7 Replace the Transfer Roller
(page 4-10).
Does the error persist?
Replace the
HVPS
(page 4-42).
Complete.
