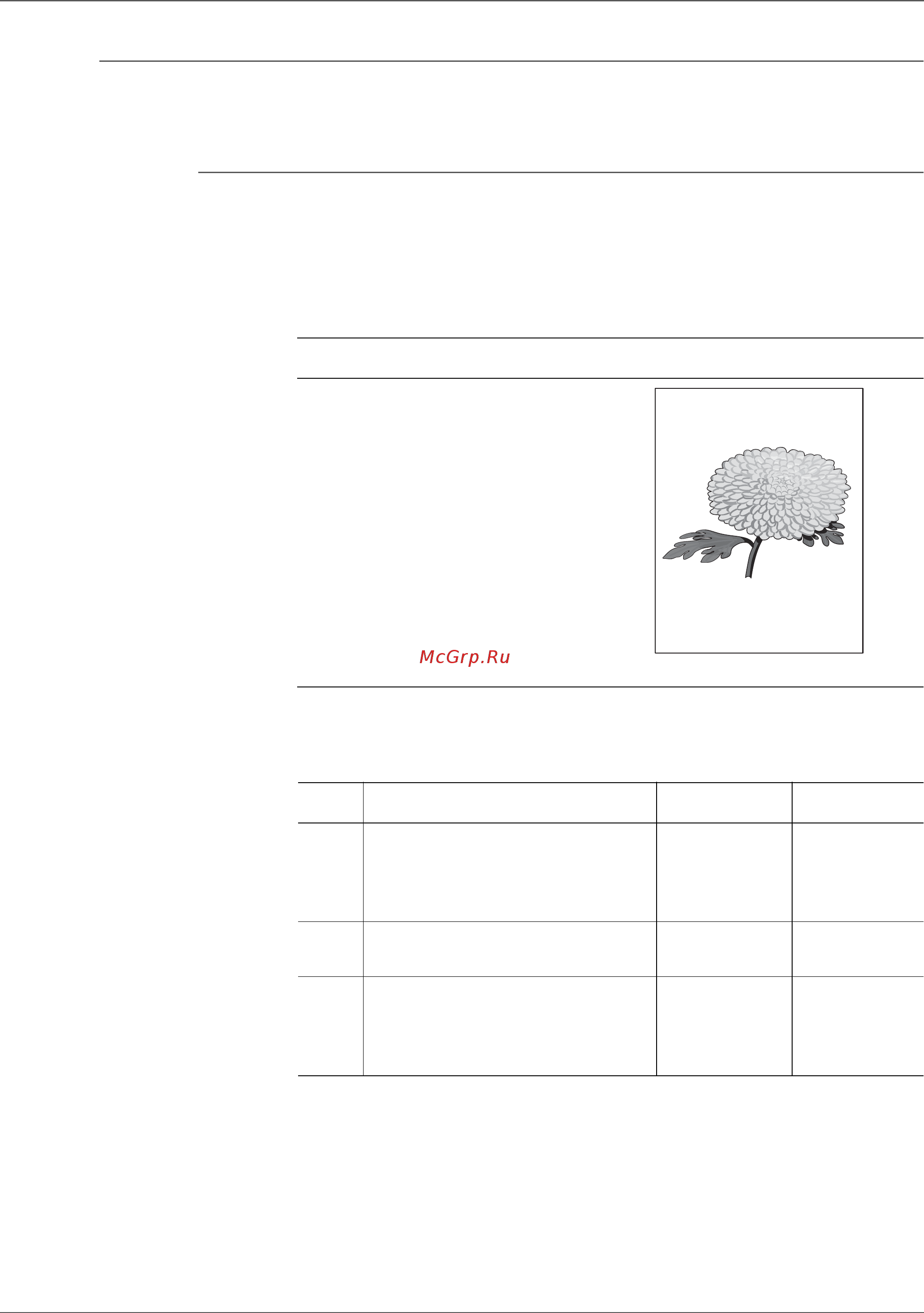

Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 3-29
Image Quality
Incorrect Magnification
Incorrect magnification when copying with the ADF feeding.
Initial Actions
• Check the paper transfer path.
• Ensure there are no debris on the transfer path.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Scanner Assembly (3045NI)
PL8.1.1
■ Scanner Assembly (3045B) PL8.2.1
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Check media condition.
Is the paper dry, recommended,
loaded in the correct position, and
meet specifications?
Go to Step 2. Replace the
media or use
the platen.
2 Is the ADF closed against the
document glass completely?
Go to Step 3. Close the ADF.
3 Perform Scanner Calibration
procedure (“Scanner Adjustment” on
page 6-7).
Does the error still occur?
Replace the
Scanner
(page 4-109).
Complete.
Magnification Incorrect
