Xerox Phaser 3010 [250/430] Main drive assembly
![Xerox Phaser 3010 [250/430] Main drive assembly](/views2/1228085/page250/bgfa.png)
4-40 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Service Parts Disassembly
Phaser 3010/3040 Drive

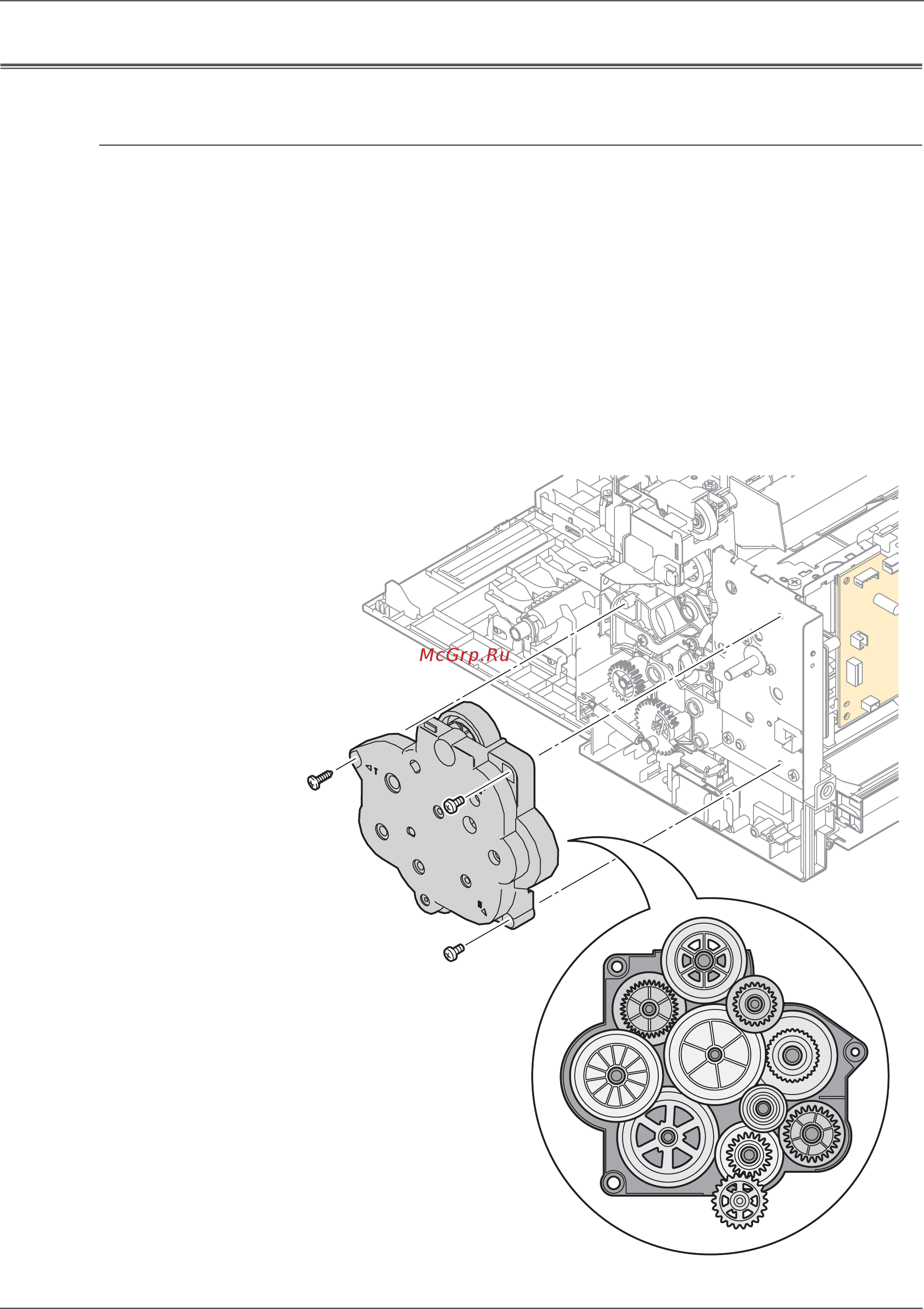

Main Drive Assembly
PL6.1.1
Caution
The gears of the Main Drive Assembly are not captive to the cover. Use care
when removing the cover to maintain correct gear orientation.
1. Remove the Main Tray Cover (page 4-13).
2. Remove the Front Cover (page 4-15).
3. Remove the Left Side Cover (page 4-16).
4. Remove the 2 screws (silver, metal, 6 mm), and 1 screw (silver, tap, 8mm) that
secure the Main Drive Assembly to the chassis.
s3040-086
