Xerox Phaser 3010 [319/430] Sj22 sj21 sj23 sj20
![Xerox Phaser 3040 [319/430] Sj22 sj21 sj23 sj20](/views2/1228085/page319/bg13f.png)
Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 4-109
Service Parts Disassembly
WorkCentre 3045 Scanner and ADF
Scanner with ADF
PL8.1.1
Note
Scanners without an ADF have 3 connections; P/J5, 6 and 18.
1. Remove the Main Tray (page 4-58).
2. Remove the Front Cover (page 4-60).
3. Remove the Inner Front Cover (page 4-62).
4. Remove the Left Cover (page 4-64).
5. Remove the Right Cover (page 4-57).

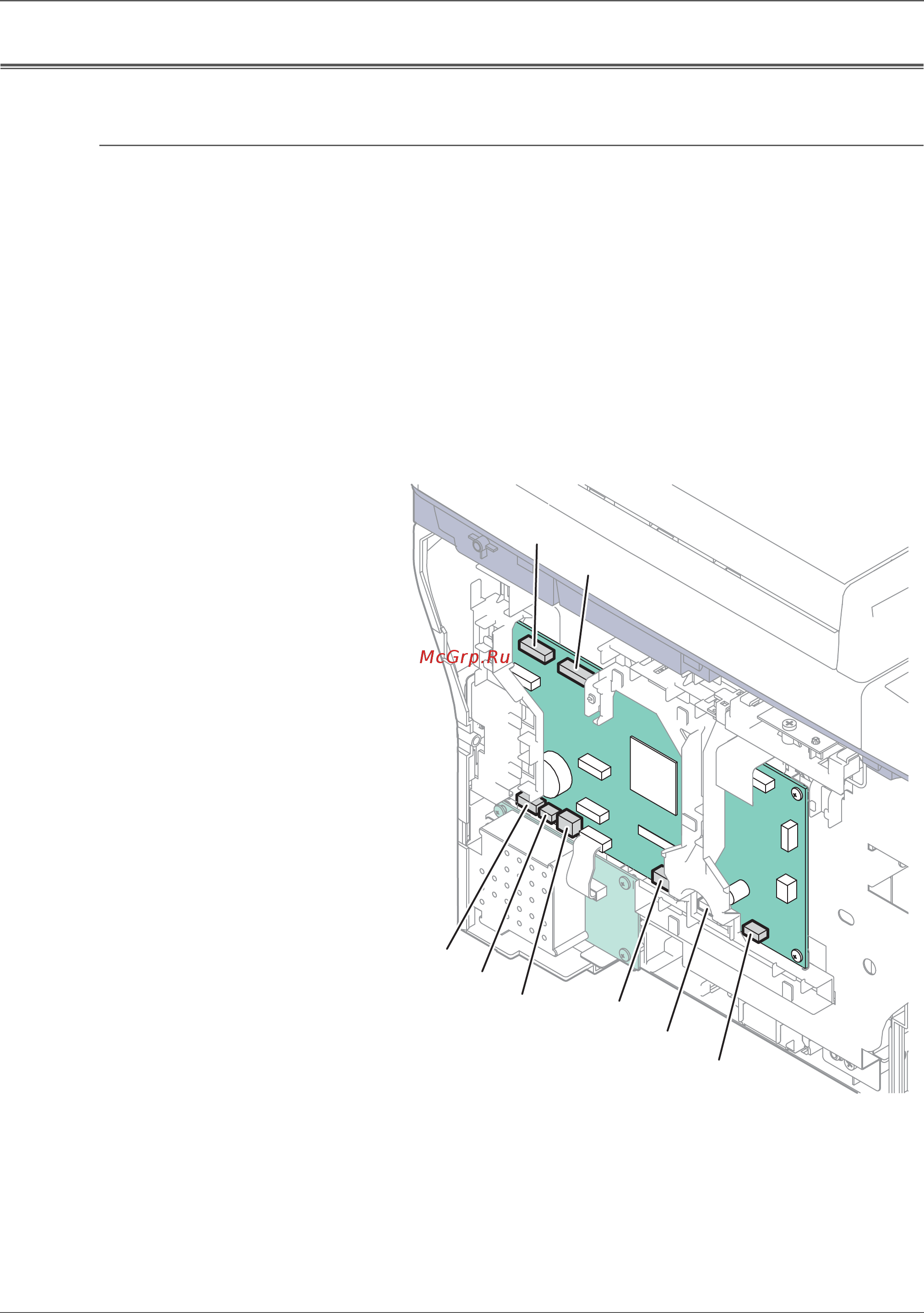

6. Disconnect P/J5, 6, 18, 19, 20, 21, 22, and 23 from the IP Board.
s3040-096
SJ5
SJ6
SJ18
SJ19
SJ22
SJ21
SJ23
SJ20
