Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 2-37
Error Troubleshooting
Phaser 3010/3040 Motor Test Procedures
These tests check whether the Digital Output (DO) components (motor s and
solenoid) operate. When the interlock is opened during a Motor Test the
component stops.
When a paper jam or PQ problem occurs, or an error message or code is displayed,
these test help to pinpoint the faulty part. Before executing the test, examine the
details of the jam, PQ problem, or error, and isolate the faulty parts. These tests are
available:
•Main Motor (Full, Slow)
•Feed Solenoid
•Toner Motor

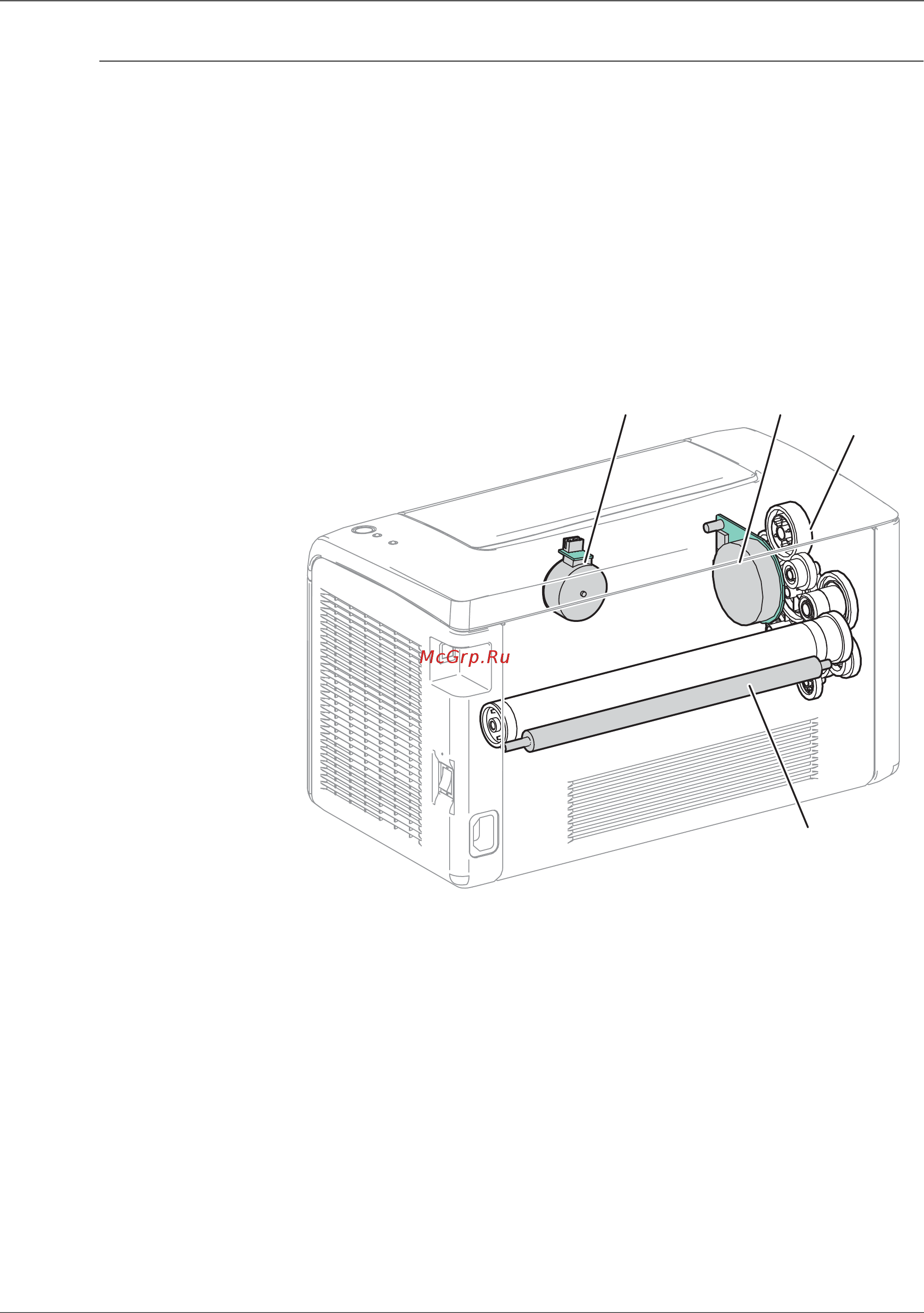

s3040-114
Main Drive
Assembly
Main Drive Motor
Toner Motor

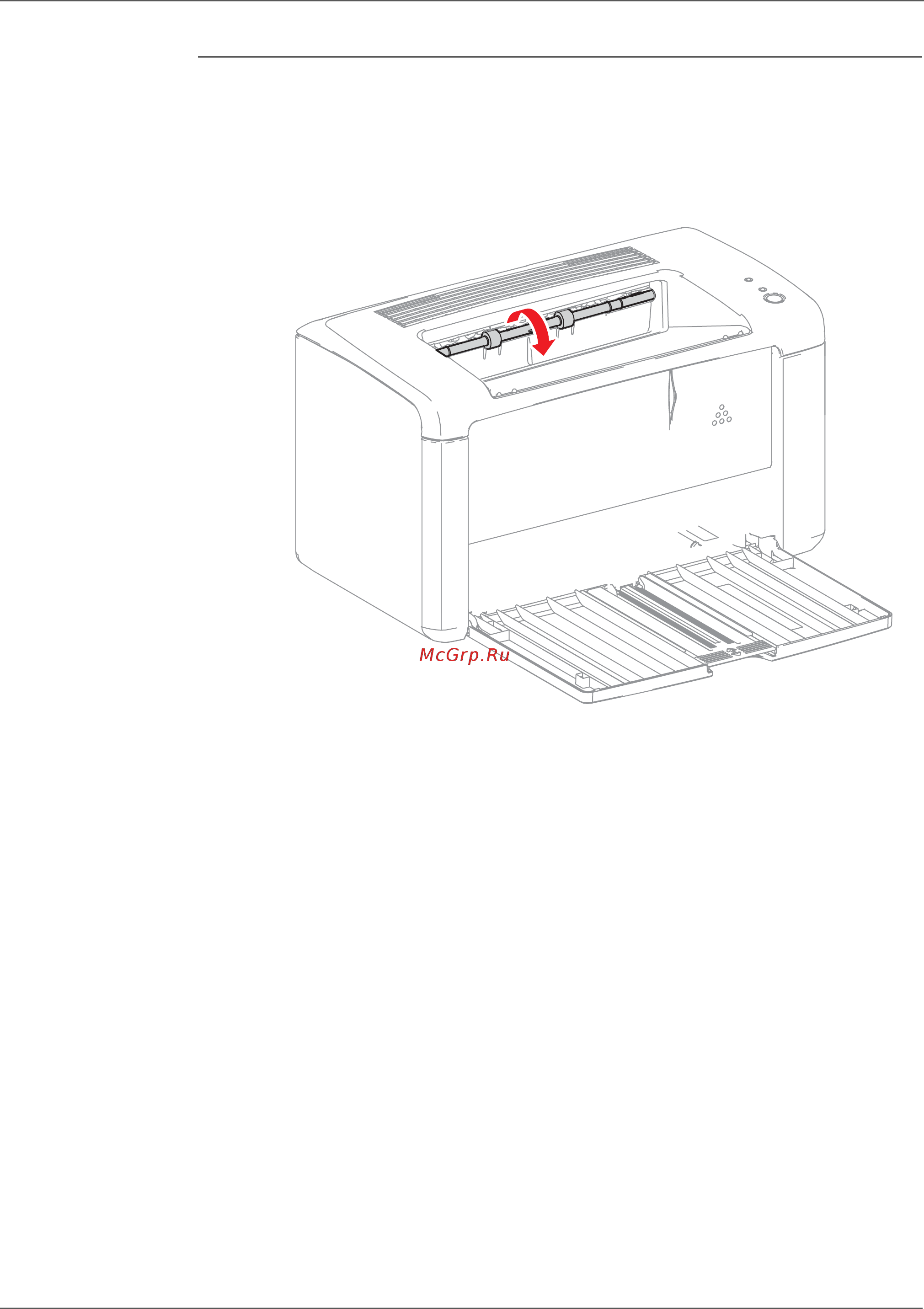

Transfer Roller
