Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 3-13
Image Quality
Random Spots
There are spots of toner randomly scattered across the page.
Warning
Allow the Fuser to cool before servicing the printer.
Initial Actions
• Ensure there is no debris on the media path.
• Print several blank pages to clean the media path.
Troubleshooting Reference Table

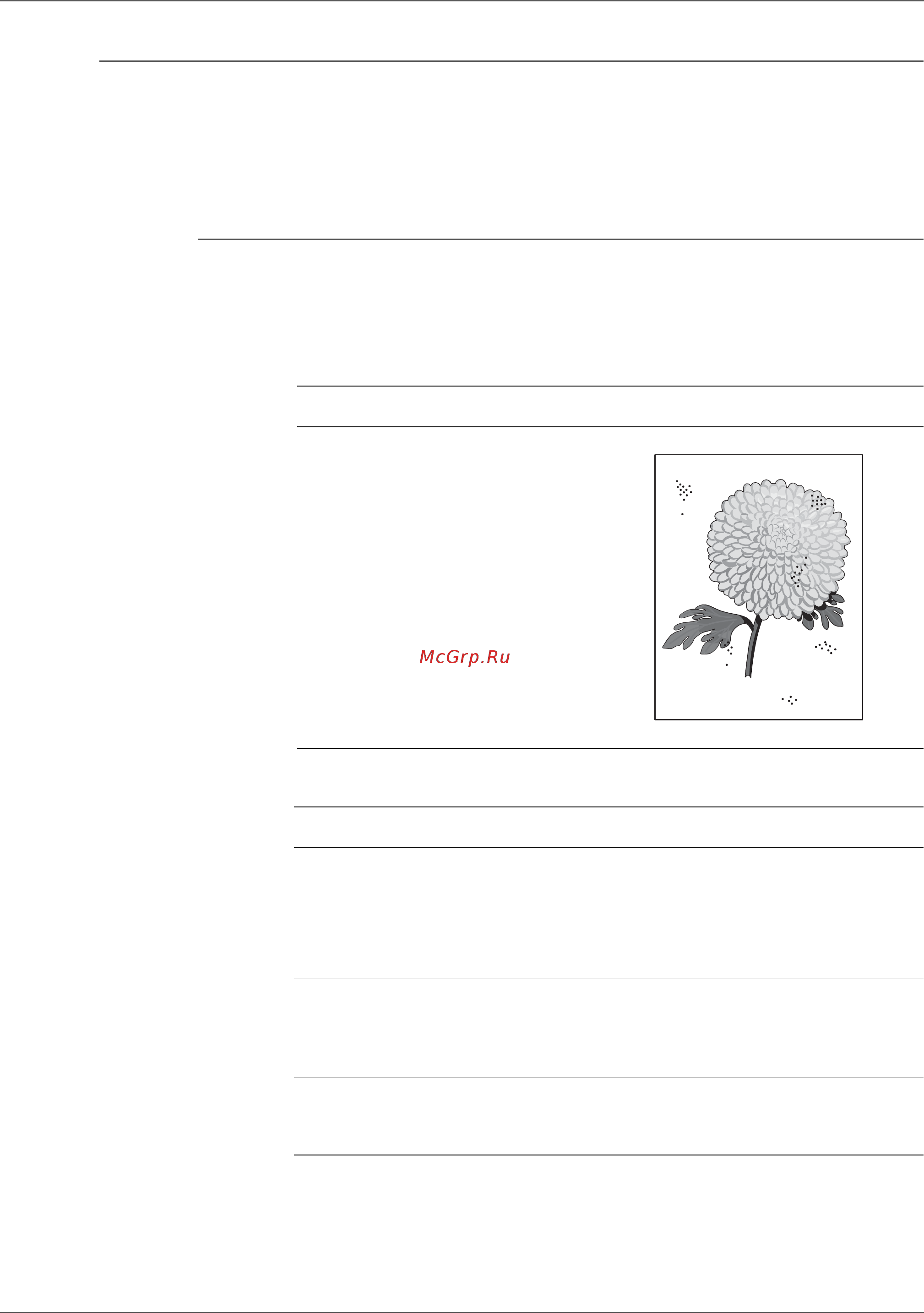

Applicable Parts Example Print
■ Transfer Roller, PL1.1.11
■ Fuser, PL5.1.1
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check humidity.
The humidity is within specification.
Go to Step 2. Advise
customer.
2 Print several blank pages to clean
media path components.
The spots continue to appear.
Go to Step 3. Complete.
3 Examine prints for repeating
patterns indicating a contaminated
component.
The spot pattern repeats.
Go to
page 3-15.
Go to Step 4.
4 Replace the Transfer Roller
(page 4-10).
The spots continue to appear.
Replace the
Fuser
(page 4-38).
Complete.
Random Spots
