4-32 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Service Parts Disassembly

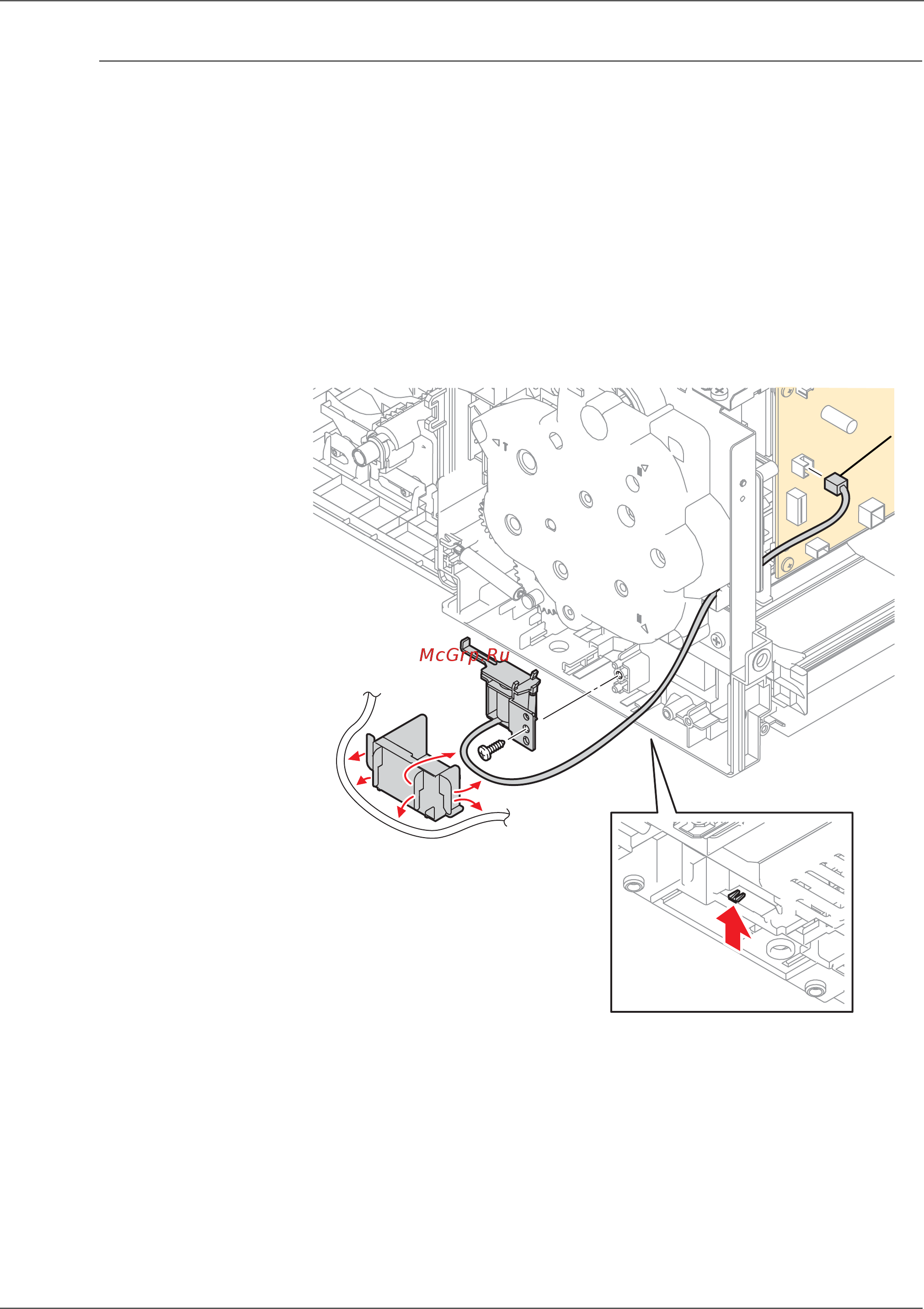

Feed Solenoid
PL2.3.21
1. Remove the Main Tray (page 4-13).
2. Remove the Front Cover (page 4-15).
3. Remove the Left Side Cover (page 4-16).
4. Disconnect P/J10 on the MCU Board.
5. Feed the solenoid harness through the opening near the Main Drive Assembly.
6. Release the solenoid and Registration Sensor harnesses from the feed solenoid
cover, then remove the cover.
7. Remove 1 screw (silver, tap, 8 mm), and remove the Feed Solenoid from the
printer.
s3040-039
P/J10
