Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 4-43
Service Parts Disassembly
MCU Board
PL7.1.2

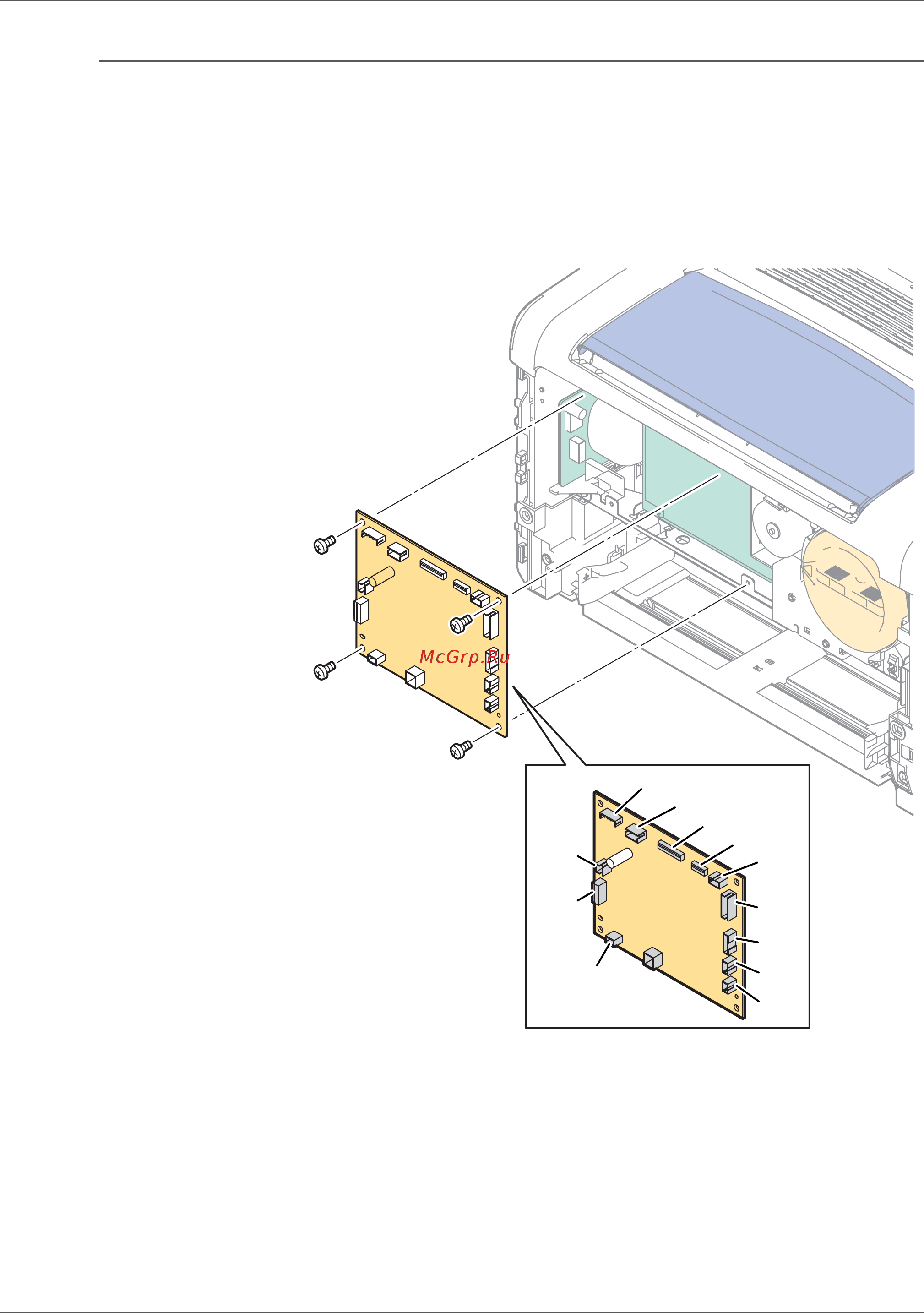

1. Remove the Main Tray (page 4-13).
2. Remove the Front Cover (page 4-15).
3. Disconnect all connections on the MCU Board.
4. Remove 4 screws (silver, metal, 6 mm) that secure the MCU Board.
s3040-046
P/J14
P/J10
P/J13
P/J15
P/J16
P/J17
P/J25
P/J18
P/J20
P/J21
P/J22
P/J23
