1-10 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
General Information
Media Path
Main Tray

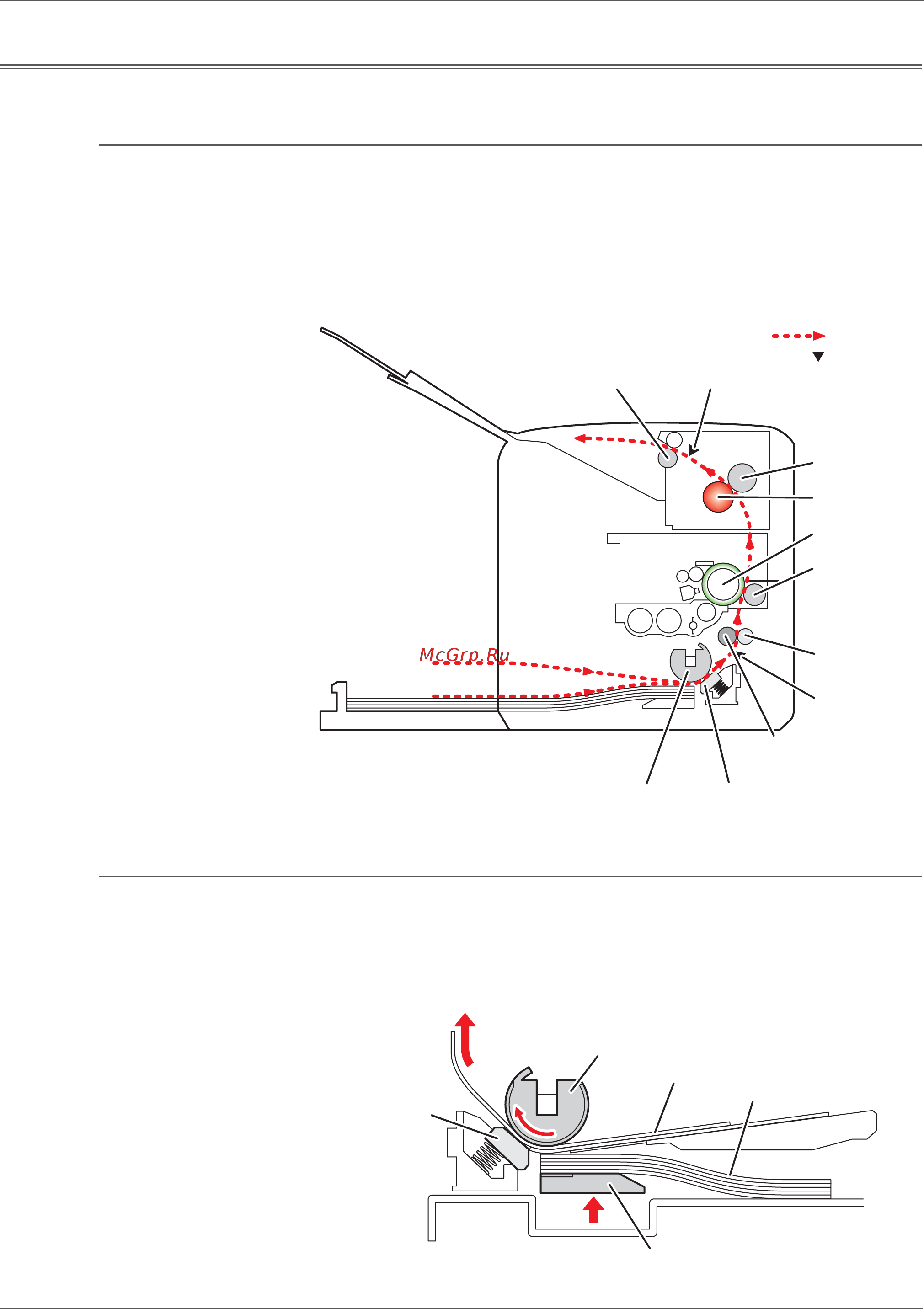

When feeding from the Main Tray, the Feed Roller rotates, driven by the Main
Motor driving the Main Drive Assembly and controlled by the Feed Solenoid, to
feed the sheet to the position where it is nipped between the Feed Roller and the
Separator Pad. As the Feed Roller rotates, the feed roller cams rotate to lift the
Bottom Plate via the follower arms to the position for sheet feeding.
Bypass Tray
The media path from the Main Tray and Bypass Tray are the same. The sheets
loaded in the Bypass Tray are positioned nearer the Feed Roller, and have higher
priority in feeding if both the Main Tray and Bypass Tray contain media.
s3040-106
: Sensors
: Paper Path
Drum
Heat Roller
Pressure Belt
Exit SensorExit Roller
Registration
Roller (Pinch)
Registration
Sensor
Separator Pad Assembly
Feed Roller
Registration Roller
(Rubber)
Transfer
Roller
s3040-107
Feed Roller
Paper (MFP)
Paper (PSI)
Bottom Plate
Holder Assembly Pad
